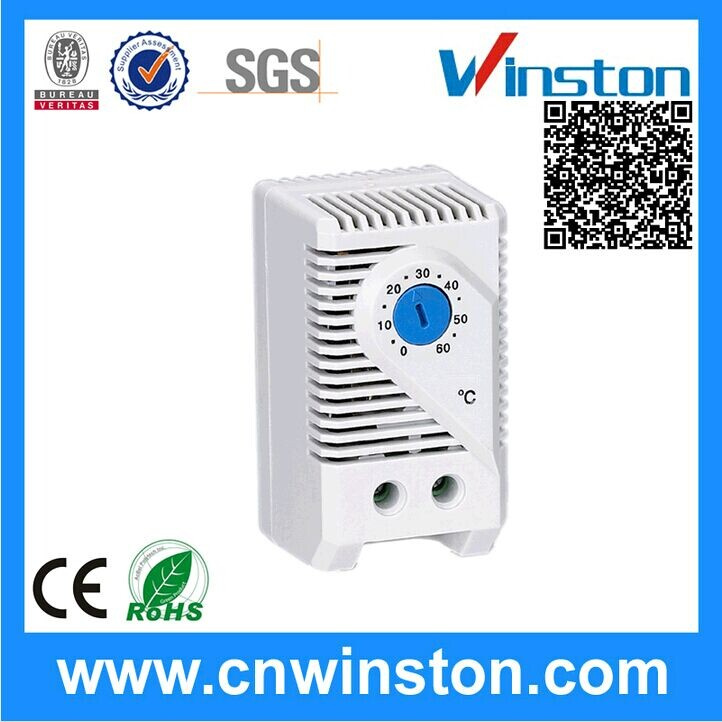

Yueqing Winston Electric Co., Ltd. >> Small Electric Cabinet Compact Thermostat Controller with CE

Small Electric Cabinet Compact Thermostat Controller with CE

Small Electric Cabinet Compact Thermostat Controller with CE
Price: US $ 3.5-4/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: FKO 011, FKS 011
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Dimensions: 60*33*43mm
Temperature Range: -10-+140
Fitting Position: Variable
Protection Type: IP20
Weight: Approx 60g
Quality Guarantee: 2 Years
Manufacturer: OEM
Protect Feature: Sealed
Casing: Plastic
Color: Light Grey
Usage: Drying Equipment, Ventilation
Control Type: Mechanical
Type: Temperature Controller
Control Method: Electronic Type
Cooling Purpose: Production
Material: Plastic
Operating Principle: Thermostat

Product Description

Professional Supplier of Thermostat and heater, all got CE.

FKO 011/FKS 011 Small compact thermostat

Features:
Large setting range
Small compact size
Simple to mount
High switching performance


FKO 011: Thermostat (normally closed); Contact breaker for regulating heaters.

FKS 011: Thermostat (normally open); Contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

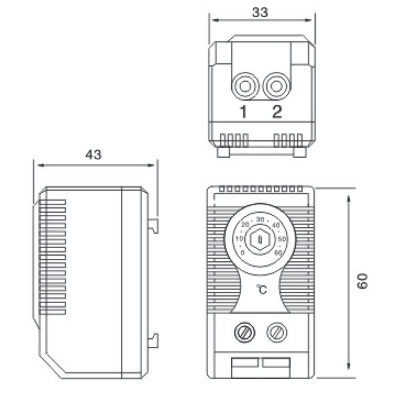

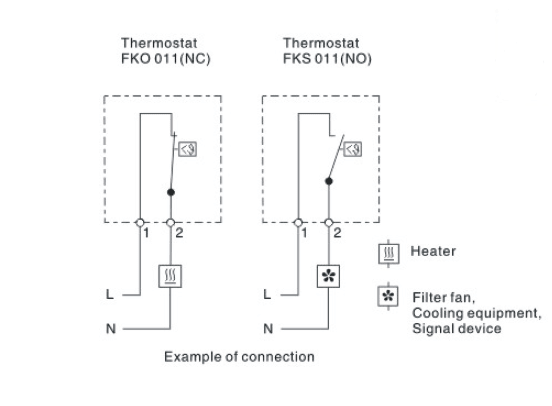

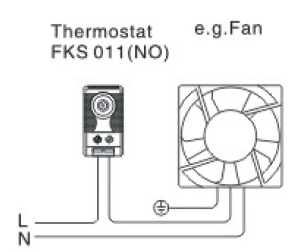

Example of connection and dimension:





Technical Data
Switch temperature difference7K(±4K tolerance)
Sensor elementthermostatic bimetal
Contact typesnap-action contact
Contact Resistance<10mΩ
Service life>100000 cycles
Max switching capacity250VAC,10(2)A; 120VAC,15(2)A;  DC30W
EMCacc to EN 55014-1-2,
EN 61000-3-2,EN 61000-3-3
Connection2-pole terminal,clamping torque 0.5Nm
 max:rigid wire 2.5mm2,
stranded wire (with wire end ferrule)1.5m2
Mountingclip for 35mm DIN rail,
EN50022(or for exit filter EF 118 Series)
Casingplastic according to UL94 V-0,light grey
Dimensions60*33*43mm
WeightApprpx 40g
Fitting positionVariable
Operating/Storge temperature-20 to+80ºC(-4 to+176ºF)/
-45 to+80ºC(-49 to+176ºF)
Protection TypeIP20



Setting range

Art. No. Contact Breaker (NC)

Art. No. Contact Maker (NO)

Approvals

0 to +60°C

01140.0-00

01141.0-00

VDE

-10 to +50°C

01142.0-00

01143.0-00

VDE + UL File No. E164102

+20 to +80°C

01159.0-00

01158.0-00

VDE + UL File No. E164102

+32 to +140°F

01140.9-00

01141.9-00

VDE + UL File No. E164102

+14 to +122°F

01142.9-00

01143.9-00

VDE + UL File No. E164102

0 to +60°C

01146.9-00

01147.9-00

VDE + UL File No. E164102


PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
