| Prod Model: |
JRE-280RASA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Torque: |
<50g.Cm |
| Output Power: |
0.8W-4.5W |
| Voltage(V): |
Adjustable |
| Material: |
RoHS Material |
| Construction: |
Permanent Magnet Motor |
| Brush: |
Metal Brush /Carbon Brush |
| Motor Diameter: |
23.8mm |
| Application: |
Toys and Models:Radio Control Model |
| Operating Speed: |
4600rpm-20000rpm |
| Casing Protection: |
Totally Enclosed |
| Structure: |
Permanent Magnet |
| Type: |
Micro Motor |
| Certification: |
Ce, RoHS, ISO9001:2000 |
| Brand: |
Kinglymotor |
Product Description
Packaging & DeliveryPackaging Details:motor 6v dc for toys and models,motor 3v dc 7000rpm ,motor 4.5v dc 5800rpm,Each load special foam box, and then put into standard carton
Delivery Time:10-15days
Product Description
A.motor 6v dc for toys and models,
B.motor 3v dc 7000rpm ,
C.motor 4.5v dc 5800rpm(CE Rohs ISO9001:2000)
1.5V-24V dc micro Motor
1.Low noise long-life(metal-brush /carbon-brush)
2.Motor Voltage:1.5v-6v at a reasonable cost
3.The shaft:dia 2.0mm
4. Motor Diameter:23.8mm length:30.5mm It is a tubular motor
5.Output power:approx 0.8W~4.5W
6.Certification:CE,ROHS ISO9001:2000
7.Metal-brush motors
8.The motor weight:42g(Approx)
9.Motor direction of rotation :CW &CCW
10.1.5v-6v mini dc Motor
Typical Applications: toys and models;radio control model;household appliances;hair clipper/massager/vibrator
11.Motors specefication and shaft length can be tailor-made according to customer's requirements

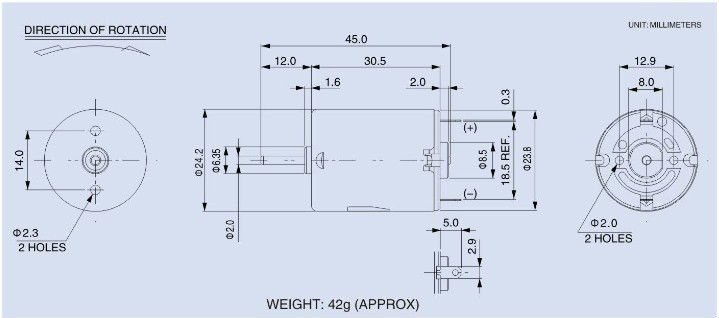

Dimension:
Packaging & Shipping;
Packaging Detail: Polyfoam or carton seperator inside, strong export carton box outside
Delivery Detail: Within 30 days for first order, 15-25 days for repeat order
FAQ
1).MOQ:1000PCS
2).Payment Terms: T/T
3).Supply Ability :10,000PCS /per day
4).CE ROHS and ISO 9001:2000 certificated
