Small Float Level Switch (CX-FLM-RF-20F)

Name: Small Float Level Switch (CX-FLM-RF-20F)
Brand: all-electronics-online.com
SKU: 749930695
Availability: InStock
Rating: 4.7 (22 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CX-FLM-RF-20F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

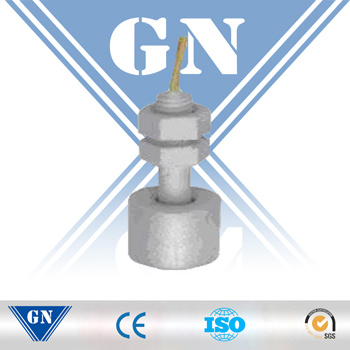

CX-FLM-RF-20F Small float level switch

Brief introduction
1.Adopt the anti-corrosive material
2.Easy to use ,safe and reliable, small structure , fast response ,long working life ,low cost ,good corrosion resistance and anti-shock load capability
3.Widely used in shipbuilding ,paper , pharmaceutical ,printing, plastic auxiliary equipment ,petrochemical ,food industry ,water treatment ,electrical ,industrial dyes ,hydraulic machinery etc .

Main parameters

Installation	vertical ,bottom installation (like vertical+/-02) M8
contact capacity	50w
Switch Voltage	220VAC
Switch current	0.5A
Insulated resistance	>10MΩ
working life	100 ten thousand times
Working temperature	-10~75ºC
Working pressure	15Bar
Accuracy	±2mm
Medium gravity	>0.55
Accuracy	±2mm
Material	PP

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
