Small Float Level Switch (CX-FLM-RF-3001)

Name: Small Float Level Switch (CX-FLM-RF-3001)
Brand: all-electronics-online.com
SKU: 749930735
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CX-FLM-RF-3001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

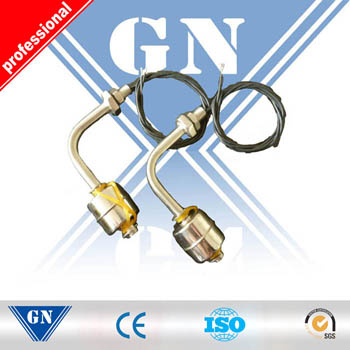

CX-FLM-RF-3001 Small float level switch

Brief introduction
1.Adopt SUS304/316 stainless steel ,simple structure
2.Simple structure , conveniently usage's level control parts
3. It has high temperature resistance, long working life ,stable performance
4.Mainly used in hot water inside the appliance or mechanical ,such as water heaters ,water dispenser ,dishwasher ,electric water ,oil compressor ,air compressor and other mechanical equipment

Main parameters

Installation	Top or bottom-mounted (vertical +/-20 ºC)
Screw	M10,can customize inG1/8"
Electric connection	300mm, UL1430 AWG22
Bar material	SUS304
Float material	SUS304
Working pressure	6 Bar
Working temperature	-10~80ºC
Accuracy	+/-2mm (in the water)
Switch type	N.C./N.O
Switch power	10W/50W
Work voltage	220VAC
Working current	0.5A/0.7A
Repeatability	+/-1mm (in the water)
Working life	1000000times
Float dimension	Dia.28 * dia.9.50*28
