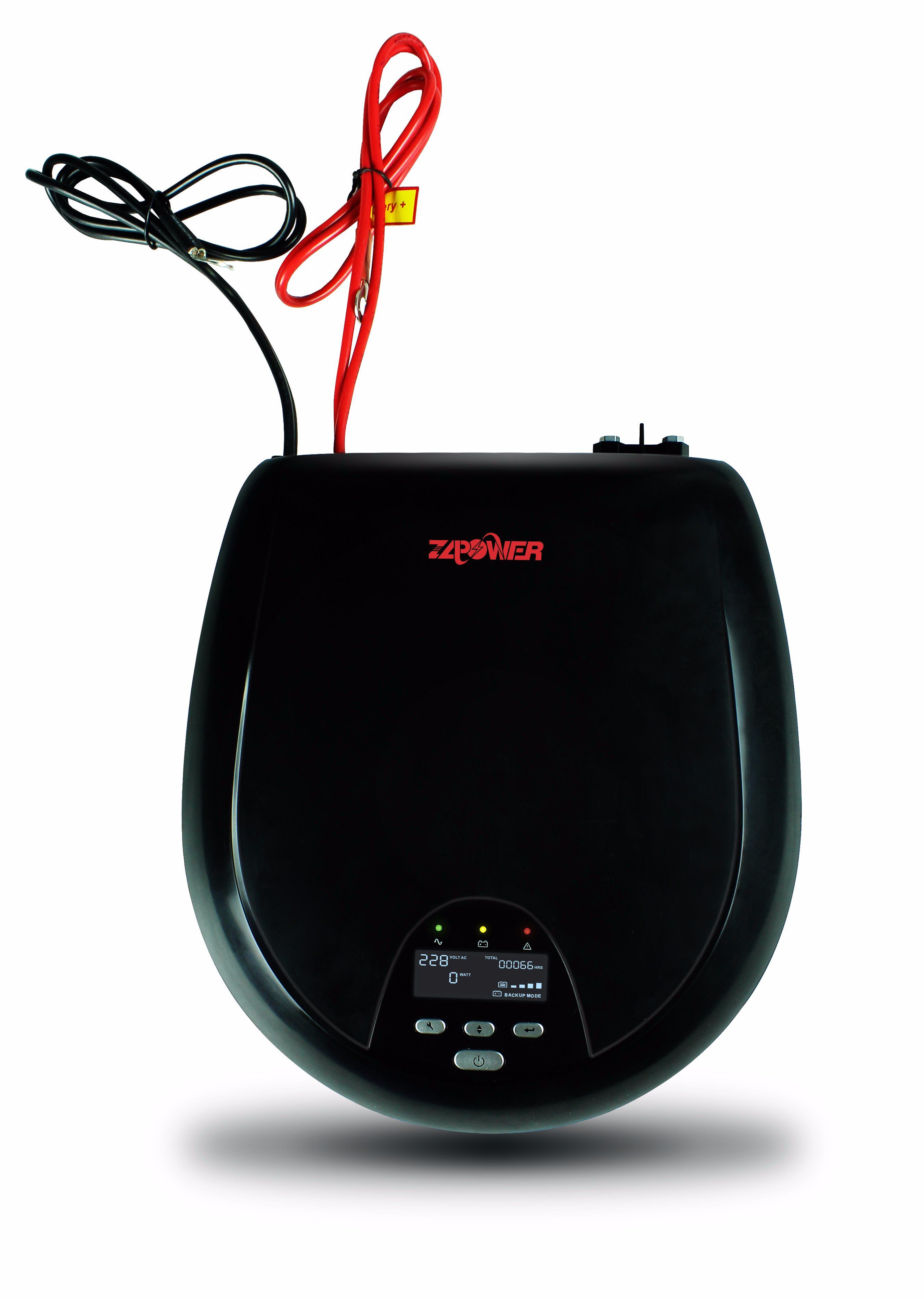

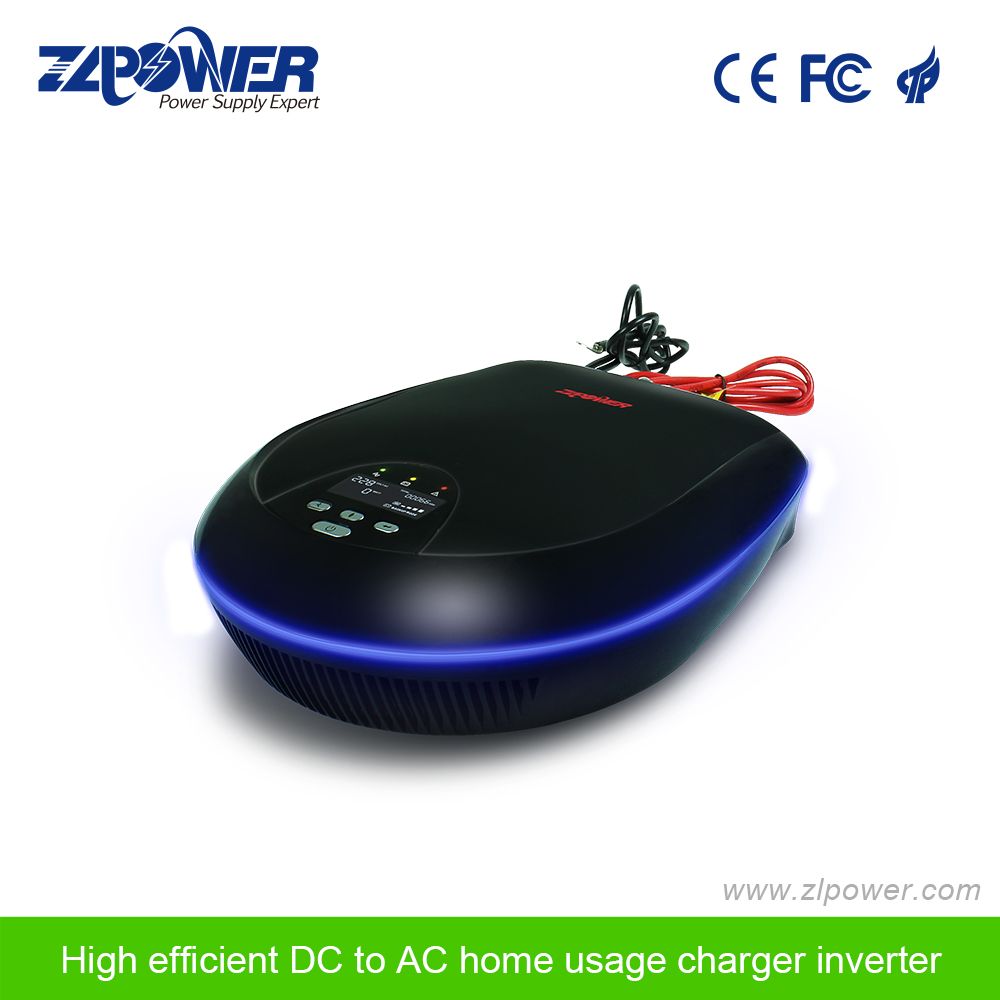

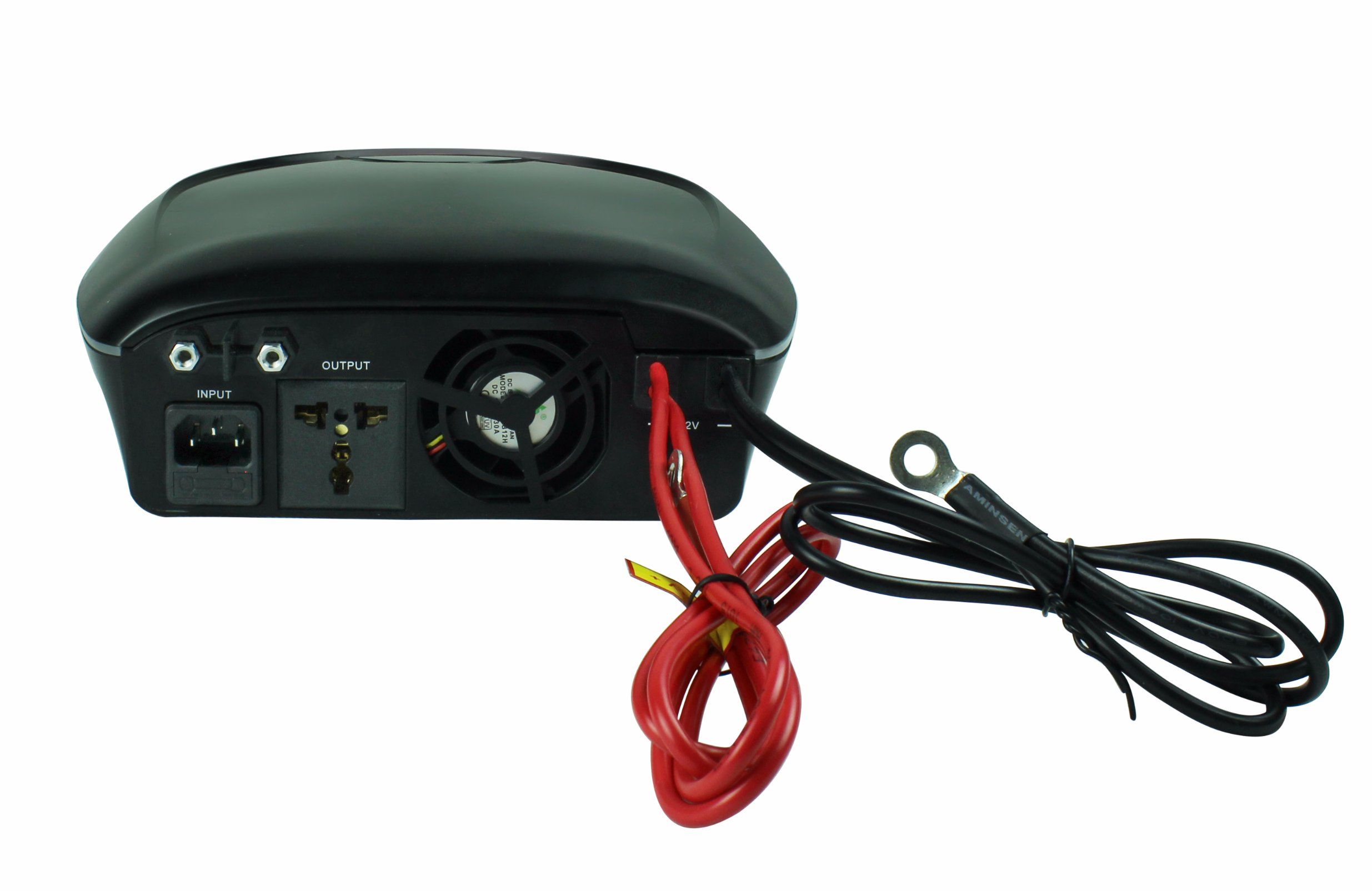

Small Power 1000va 2000va 12V 24V Modified Sine Wave PWM Solar Inverter

Prod Model:	HDX Plus Series 1~2KVA
Weight:	1.98/2.29/2.17kg
Battery Voltage:	12V/24VDC
Power:	700W/900W/1500W
Nominal Input Voltage:	220/230/240VAC
Display:	LED/LCD
Output Voltage:	230VAC
Battery Charge Current:	20/15 AMP
Efficiency:	>80%
Noise Level:	<50dB
Design:	Rack&Wall-Mount Design

Product Description

HDX Inverter Series

Features
♦Automatic line-to-battery switchover.
♦Configurable Input voltage ranges via LCD setting.
♦High efficient DC-to-AC conversion, minimizing energy loss.
♦Rack design & wall-mounted design for flexible installation.
♦Built-in enhanced charger.
♦Intelligent 3-stage charger control for efficient charging and preventing overcharge.
♦Auto restart while AC recovery.
♦User-friendly LCD+LED indications.
♦Multiple protection: low battery alarm, low battery shutdown,over charger protection, overload  protection,over temperature protection, short circuit protection.

Specifications

Model                              Parameters		HDX 1000-12	HDX 1200-12	HDX 2000-24
*1                CAPACITY	VA/W	1000VA/700W	1200VA/900W	2000VA/1500W
BATTERY	VDC	12VDC		24VDC
AC Input	Nominal input Voltage	220/230/240VAC
	Selectable Voltage Range	170-280VAC (Narrow Range);90-280VAC (Wide Range)
AC Output	Output Voltage Waveform	Modified sine wave
	Voltage	230VAC
	Voltage Regulation                (Batt.Mode)	10% / -18%
	Nominal Output Frequency (Hz)	±1HZ
Battery & Charger	Charger Current	20Amp		15Amp
	Overcharge Protection	16V		32V
Transfer Time	Typical	15ms Typical, 40ms Max.
Efficiency	AC to AC	>95%
	DC to AC	>80%
Display Indicator	AC Mode	Display output power, output voltage
	Battery Mode	The mark          will flicker every 1second.
	Battery Charging Mode	Display the Battery capacity
	Fault	Display fault
Audible Alarm	Low Battery at Battery Mode	Sounding every 2 seconds
	Overload	Sounding every 0.5 second
	Fault	Continuously sounding
Environment	Operating Temperature Range	0- 50°C, 5%-90 % relative humidity (non-condensing)
	Storage Environment	-15°C to 55°C, 5% to 95% humidity (non-condensing)
	Noise Level	Less than 50dB
Physical	Dimension(L*W*H)	373*121*305mm
Protection	Full Protection	Discharge, overcharge, overload, over temperature protection.
	Net Weight(kg)	1.98kg	2.29kg	2.17kg

Product specifications are subject to change without further notice

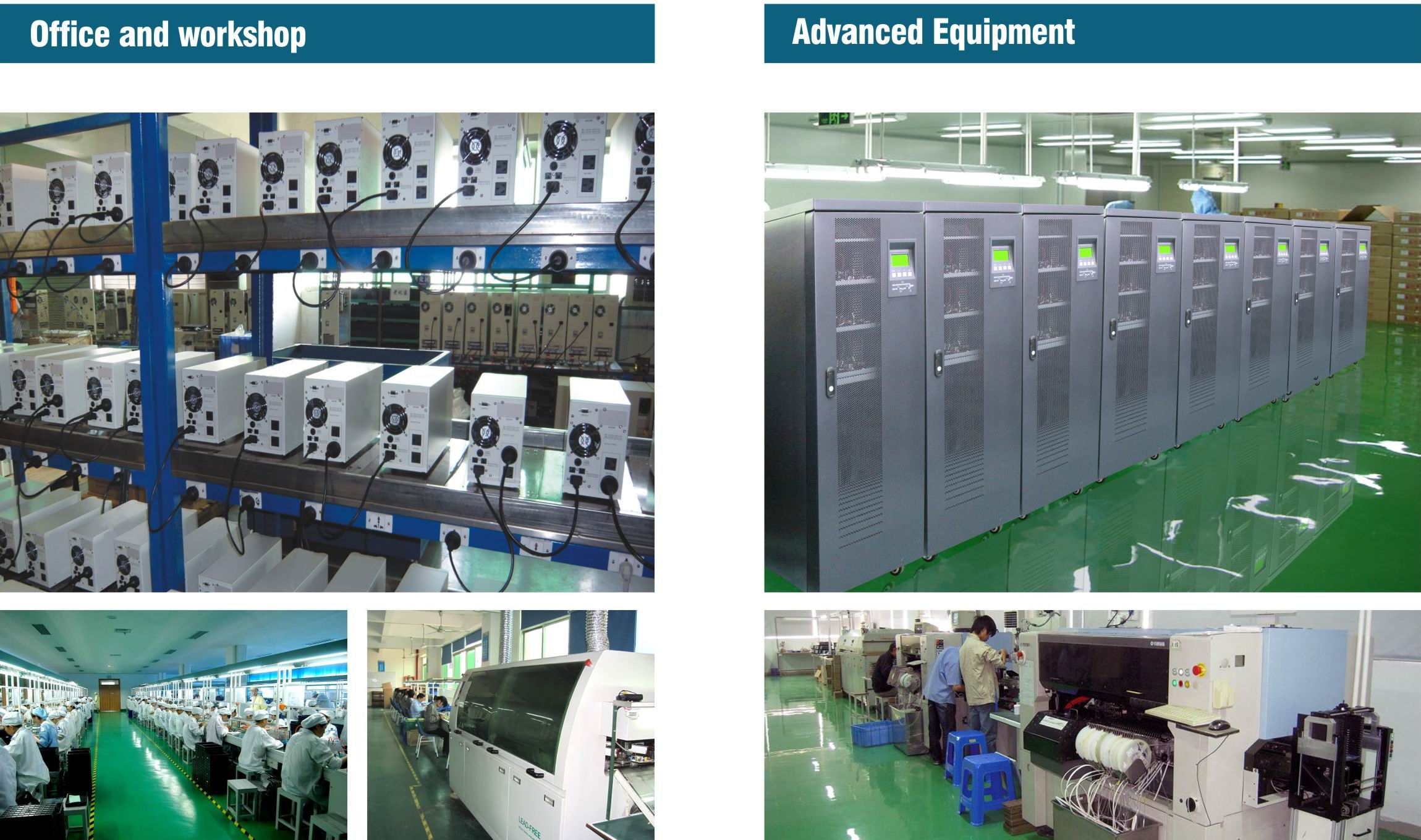

Company Profile:

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

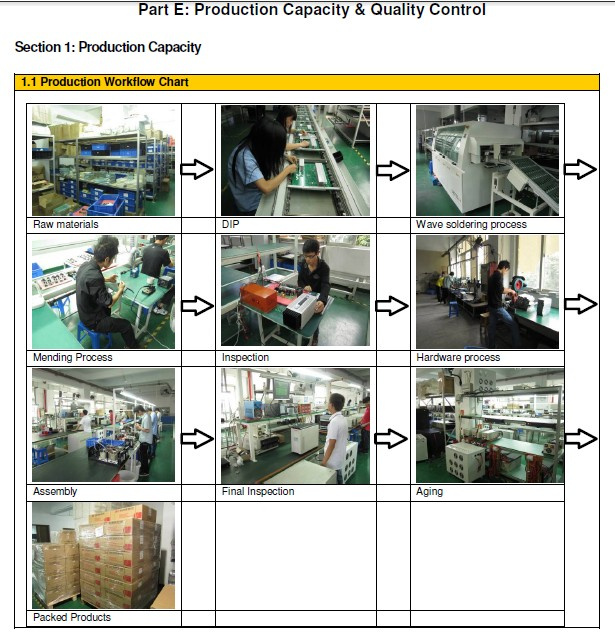

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution
