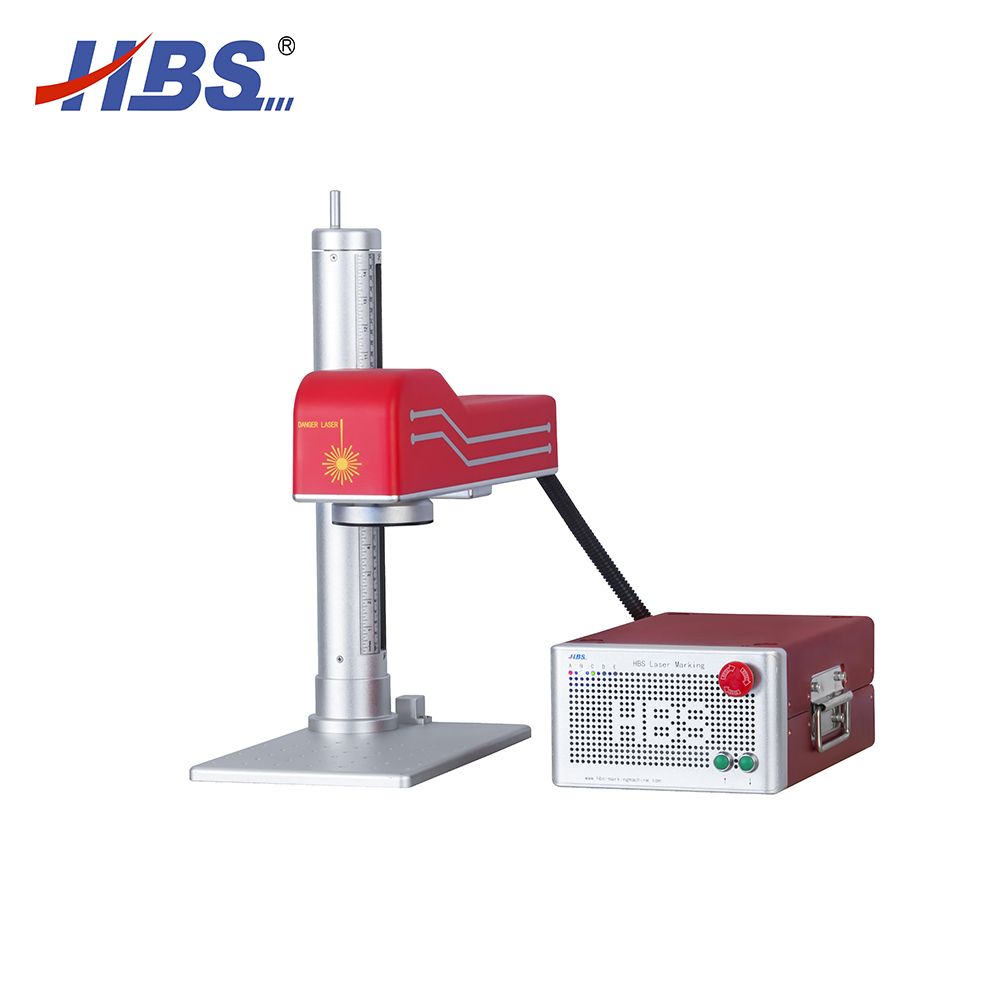

| Prod Model: |
HBS-DB-10B |
| Laser Source: |
Raycus |
| Guarantee: |
2 Years |
Product Description
LASER MARKING MACHINE 10WTechnical Parameter| Laser Wavelength | 1064nm | Beam Quality | <1.5 |
| Laser Repetition | ≤100KHz | Standard Marking Area | 110mm x 110mm |
| Making Depth | ≤1.5mm(Can be Adjustable) | Marking Speed | ≤10000mm/s |
| Min. Line Width | 0.01mm | Min. Character Size | 0.05mm |
| Repetition Precision | ±0.001mm | Power Consumption | ≤500W |
| Cooling method | Air cooled | Power Supply | 220V/50Hz/10A |
Optional Lens| Lens Type | HBS-65 | HBS-110 | HBS-175 |
| Focal Length | 100mm | 170mm | 250mm |
| Marking Area | 65mm*65mm | 110mm*110mm | 175mm*175mm |
| Note: Without special request, HBS will fix our standard lens with Model: HBS-110 |
Packing Details Dimension(mm): 880X1000X370(machine head: 300X520X570, table:460X450X180)
Net Weight(kg): 42.6(machine head: 27.2, controller: 15.4)
Gross Weight(kg): 52

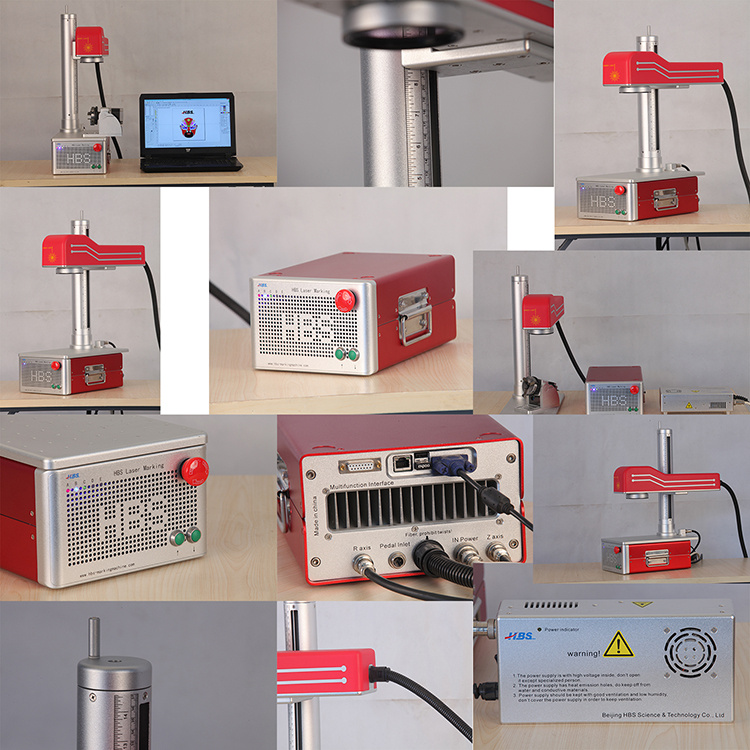

Product Introduction Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world's most advanced laser technology.
Adoption of fiber laser system for outputting laser, and then achieve marking functions by high-speed scanning galvanometer mirror system.
The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above, it has higher beam quality in comparison to semiconductor laser marking machine.
The machine is designed for long-time maintenance-free.
Product FeaturesExtremely fast, with high-speed galvanometer.
Small volume, light weight.
No consumables, low power consumption, less than 500W.
Completely air cooled, do not need water chiller, lower power consumption.
Robust under harsh environment and temperature change, can operate with batteries or supply from automobile cigarette lighter in case of power failure.
Low product depreciation cost. Ability to meet customers' mass and stable production.
Product ApplicationThe machine is assembled with fiber laser from Germany or Britain, or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.
Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.
Eijing HBS Science & Technology Development Co., Ltd was founded in 2001. With a struggling and arduous years focusing on the development and production of marking system, HBS has nowadays become one remarkable supplier of marking equipment in China. In plenty of practical experience working out the marking research and solution for numerous well-known enterprises, HBS is able to offer a comprehensive of marking equipment and solution at a reliable and confident basis.
Today, HBS endeavor to build brand and spread HBS products all over the world, to the area of international business HBS already export come from India, Russia, Singapore, Thailand, Vietnam, Brazil, Iran, South Korea, Taiwan, South America nations and other districts.

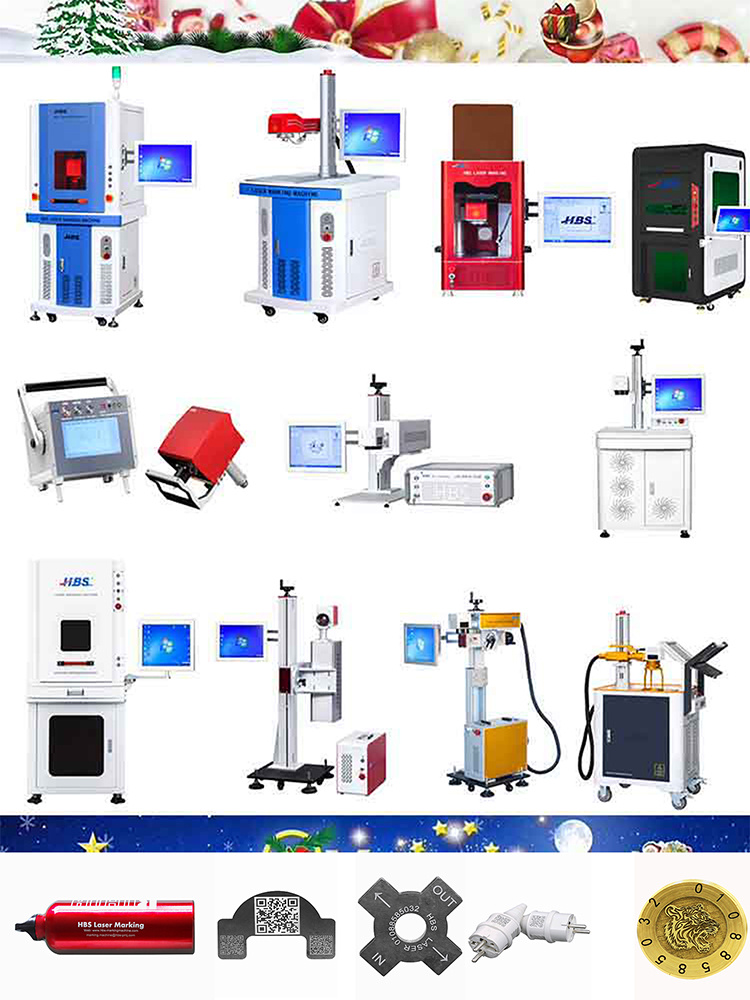

Beijing HBS Science & Technology Development Co., Ltd provide professional marking processing solutions and related auxiliary equipments to the clients all over the world, dozens of marking equipments and accessory products for industry use is able to design and produce, especially the recommended Laser Marking Machine, Pneumatic Marking Machine, Mobile Marking Machine, Handheld Marking Machine, Electromagnetic Marking Machine and Electro-chemical Marking Machine are increasing popular and cost-effective as conventional hot-sale. HBS product is able to apply to the industry of electric& electro equipment, electric power, tele-communication, molding, automobile, locomotive, railway, air space, military, shipbuilding, casting, machinery, metal materials, jewelry and others. All HBS product has won European CE certificate.
Beijing HBS Science & Technology Development Co., Ltd is strictly compliant with quality control under ISO9001 system, the whole process from material sourcing, producing to and sales to make a designed product into the finished is all completely under supervision for perfect quality and performance.
HBS setup its headquarter in Beijing in charge of core business, in some other cities like Shanghai, Dongguan, Shenyang, Ningbo there are branch office to handle the sales, after-sales service, goods transmitting and technical support. All the time HBS pay attention to the innovation in details for making more perfect product to which any advise or comment from every past or new client is highly appreciated and valuable for HBS. HBS hold belief of " reliable product, excellent after-sales service" as only principle to create clients' trust and satisfactory. " Quality first, customer foremost" is the commitment HBS give to you as our eternal pursuit and goal.
The company's products have passed CE certification.
