| Prod Model: |
KA-S07B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Delivery Time: |
Within 25 Days |
| Output: |
Switching Sensor |
| Usage: |
Light Sensor |
| Theory: |
Infrared Sensor Switch |
| Package: |
Customized Color Box or White Box |
| Function Type: |
PIR Sensor |
| Detection Type: |
Infared Motion Sensor |
| Material: |
PC |
| Certification: |
CE, RoHS |
| Customized: |
OEM and ODM Orders Accepted |
Product Description

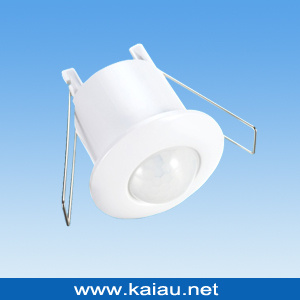

KA-S07B ceiling mount sensor specifications:
1) Power source:220V/AC-240V/AC,100V/AC-130V/AC
2) Power frequency:50/60Hz
3) Rated load:1200W(220-240V/AC),800W(100-130V/AC)
4) Detection range:360 degree
5) Light control:<3LUX-daylight(adjustable)
6) Time delay:10sec to 7min(adjustable)
7) Detection distance:6 m(adjustable)
8) Installation height:2-4m
9) Detection speed:0.6-1.5m/s
10) Product dimension: 66 x Diameter 50mm
Package:
1) White box or customized color box
2) Carton size: 50*38.5*36 cm
3) Gross weight:15KGS
4) Quantity/carton:50pcs
Product introduction:
KA-S07B is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It
gathers automatism, convenient safe, saving-energy and practical functions. One detector inside compose a
wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the
load at once when one enters detection field. It can identify day and night automatically. It is easy to install and
used widely, possessing the functions of power show and detecting show.
KA-S07B function:
1) Identify day and night automatically. Can adjust light-control according to your desire: when turn to SUN
(max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX
circumstance. As for Adjustment, please refer to testing way.
2) Detection range can be set according to installation position and detection field.
3) The detection show: the LED will flash two times per second when receiving the signal.
4) Time setting is added continually: when it receives the second induction signal after the first inductor, it will
compute time once more on the rest of the first time setting basic. (Set time)
5) Time setting adjustment: it can be set according to your desire. The minimum is 8±3 sec; the maximum is
7±2min.
