Shenzhen Innosio Technology Co., Ltd. >> Small Size Mini Car Vehicle GPS Tracker with Ce Certificate

Small Size Mini Car Vehicle GPS Tracker with Ce Certificate

Small Size Mini Car Vehicle GPS Tracker with Ce Certificate
Price: US $ 22-25/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: TR02
Position Mode: GPS+Lbs Positioning
GSM Network: 850/900/1800/1900MHz
CPU: Mtk6252
GPS Chip: Mtk3326
Compatible: Ios and Android

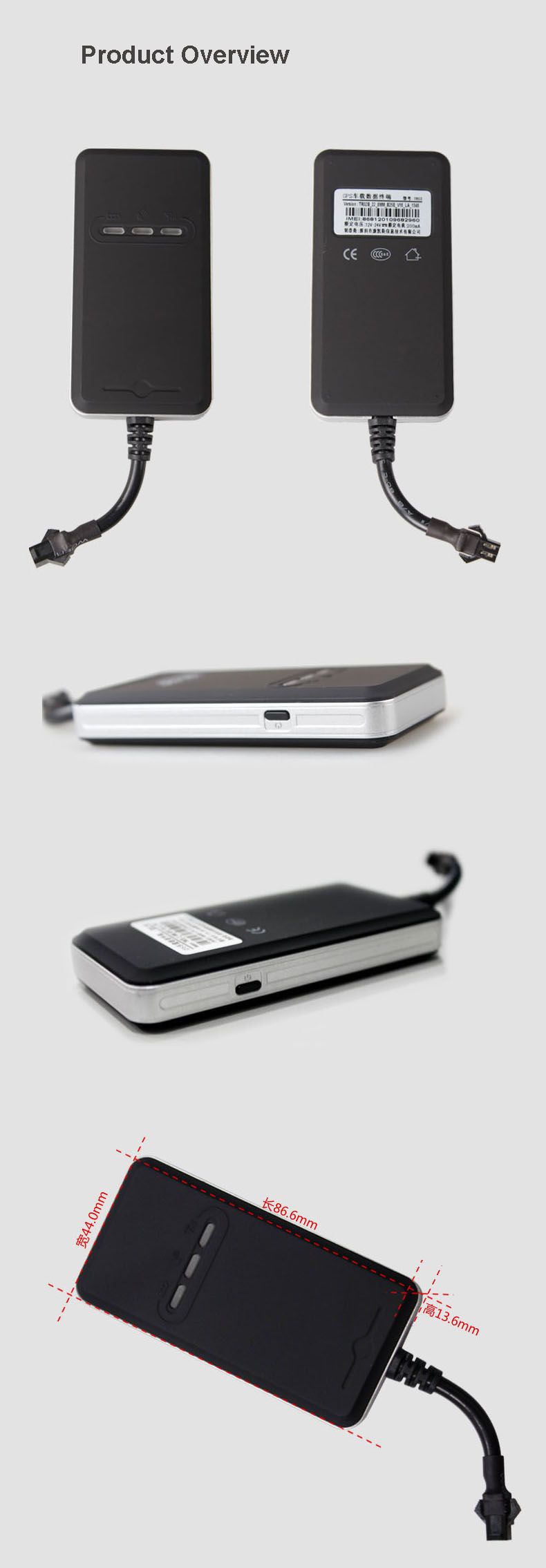

Unit Size: 86.7 ( L) X 44.0 (W) X 13.7 (H) mm
Working Voltage: 9-36V DC
Enquiry Location Way: SMS, APP, PC
Application: Car, Vehicle, Truck, Automible, Autobike
Geo-Fence: Support
Type: GPS Tracker
Use: Automotive
Operating Principle: Mixed Type
Port Number: Multiplex Multi-purpose Channel
Model: Total Station Type
Carrier Frequency: Dual-Frequency
Certification: ISO/TS16949, ISO14001, ISO2000
Screen Size: LED
Chip: Mtk
Brand: Customized Brand

Product Description

Small Size Mini Car Vehicle GPS Tracker with CE certificate

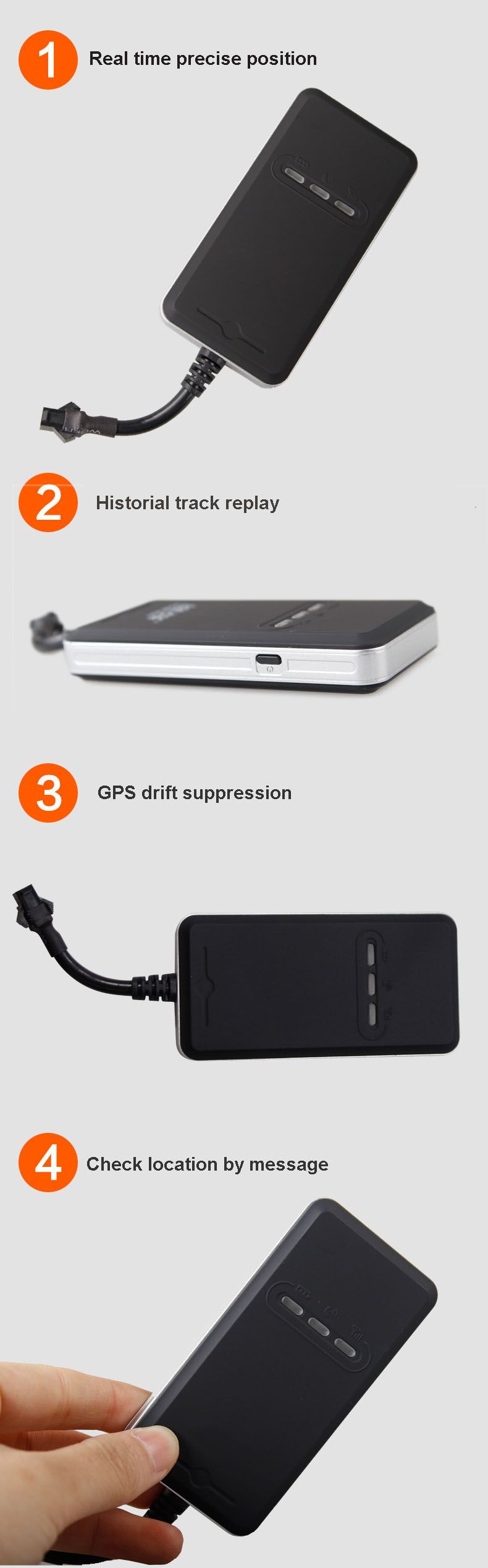

Key Features:

1. Real time precise position
2. Smart power save mode.
3.Geo-fence notification
4.historial track replay within 2 month.
5.Group vehicle fleet management
6.with free tracking platform



Technical Parameter:

Weight53g
Dimensions86.7 ( L) X 44.0 (W) X 13.7 (H) mm
Working voltage/current9-36VDC / 25mA
Operation temperature-25ºC - 60ºC
Operation humidity5% - 95% RH
LED indicatorThree LED indicators: GPS-blue; GSM-green; Power-red
GSM frequency850/ 900/ 1800/ 1900 MHz
GPRSClass12, TCP/ IP build in GSM Module
GPSMT3326
FrequencyL1,1575.42MHz C/A code
GPS antennaBuilt-in high gain ceramic patch antenna
GPS Channels20
Tracking sensitivity-159dBm
Acquisition sensitivity-144dBm
Locating time costHot start: <2 sec(open sky)
Warm start: <15 sec
Cold start: <38 sec(open sky)
CertificationsCE, ROHS


Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.

Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6 weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
Shenzhen Innosio Technology Co. Ltd, found in 2006, the headquarters is located in Hong Kong, the factory is established in Shenzhen. Innosio is a ISO9000 and ISO14001 certified company, specializing in GPS Tracker and GPS tracking system.

Innosio overview: We focus on GPS security product line. Now the main products include vehicle GPS tracker, car tracker, moto GPS tracker, mini GPS tracker, GPS tracker for kids/elder/pet etc. INNOSIO has over 300 workers and staffs, equipped with advanced automatic production from software design, industrial design, plastic mould design, circuit design, plastic injection, silk printing, assembly of finished products, in-house testing, etc.

Innosio Marketing: Our marketplaces cover German, Italy, France, Belgium, Polland, Sweden, Canada, America, Mexico, Argentina, Brazil, Chile, Columbia, Peru, China, Combadia, India, Malaysia, Pakistan, Thailand, South Africa, Nigeria, Uganda, Kenya, Egypt, etc. OEM brand takes 85%, INNOSIO brand takes 15%. We are going to expand more marketplace and market share in the future.

Secrects of Innosio Success: Thanks to development of marketable products, strict quality control system, advanced equipments, reliable quality guarantee, efficient after-sales service, good reputation.

Innosio commitment: To bring more perfect products to our customers, help our customers maximize the profit and value, Innosio team should make more contribution and investment to more unique products, move forward with innovation and creation of new technology. We pride ourselves to provide excellent quality products with reasonable pricing.
