Small Size Mini Size 100kg Weight Sensor Load Cell

Name: Small Size Mini Size 100kg Weight Sensor Load Cell
Brand: all-electronics-online.com
SKU: 773294935
Availability: InStock
Rating: 4.9 (29 reviews)

Price:	US $ 5-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-12G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	5~100kg
Accuracy:	0.03
Rated Output:	2.0mv/V
Product Name:	Small Size Mini Size 100kg Weigt Sensor Load Cell

Product Description

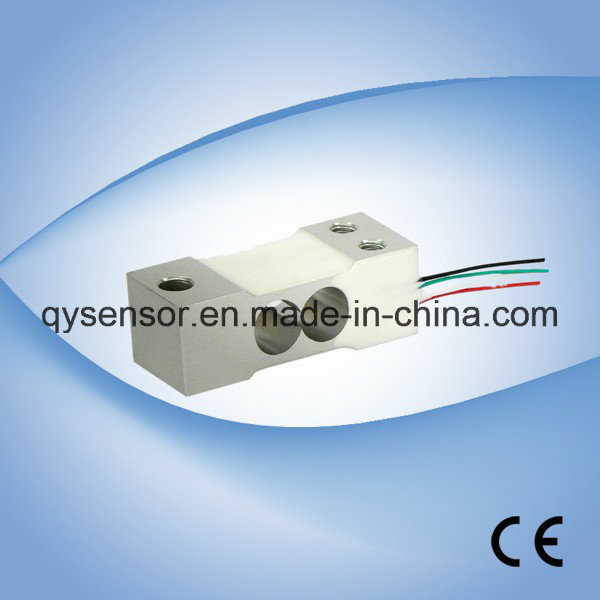

QL-12G Small Size Mini Size 100kg Weigt Sensor Load Cells are available in the capacities from 5kg to 100kg.
Alloy aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic counting scales, platform scales, electronic balance and other electronic weighing devices.

Features:
Capacity :5kg to 100kg
Defend grade:IP65
High accuracy.
Alloy aluminum parallel beam
Max. platform size:200x200mm
Integral structure,reliable performance,and easy installation

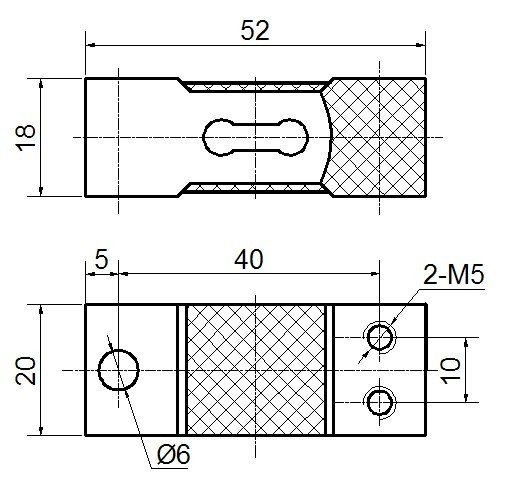

Electrical connection and Dimensions:

Technical Specifications:

Specifications:
capacity	kg	5,20,50,100
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.02
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	406 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-20 ~ +60
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.02
temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:1 m
Cable diameter :0.8 ±0.2 mm
