Small Size Pressure Transmitter, ISO9001, for Measuring Gas, Customization/OEM Available

Name: Small Size Pressure Transmitter, ISO9001, for Measuring Gas, Customization/OEM Available
Brand: all-electronics-online.com
SKU: 793754985
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WNK805
Pressure Type:	Gp Ap Vacuum, Negative Pressure
Compensation Temp.:	-10~70ºC
Working Temp.:	-40~85ºC
Stability:	0.25%Fs/Year

Product Description

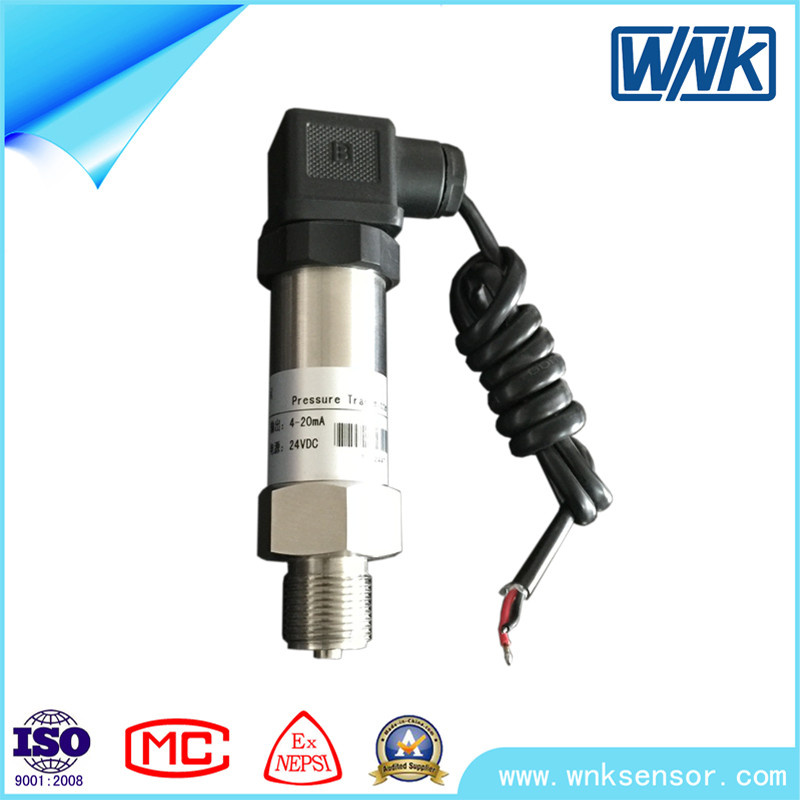

WNK805 Small Size Pressure Transmitter

WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.

WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.

Technical specifications:

Pressure range: 0-0.2 ~ -100kPa, 0-0.2 ~ 1000kPa 60000kPa
Pressure type: gauge, absolute, vacuum, negative pressure
Overload: 1.5 ~2 times
Non-linearity: 0. 1, 0.2 5, 0.5, 1%FS
Delay / repeat: 0.05 , 0.1%FS
Temp. compensation: -10-70 ºC
Working temperature: -40 ~ 85 ºC
Media: nonconducting and non - corrosion or weak corrosion gas
Comprehensive accuracy: 0.1, 0.25, 0.5, 1.0
Stability: 0.25% FS/ Year

WNK805 SENSOR	WNK805 TRANSMITTER
Power: 6~12VDC, 1~2mADC Zero output: <±2mV (10VDC supply) Full span output: 20~100mV (10VDC supply)	Power: 24VDC Output choices: 4~20mA; 0~20mA; 0~10mA; 0~20V; 1~5V

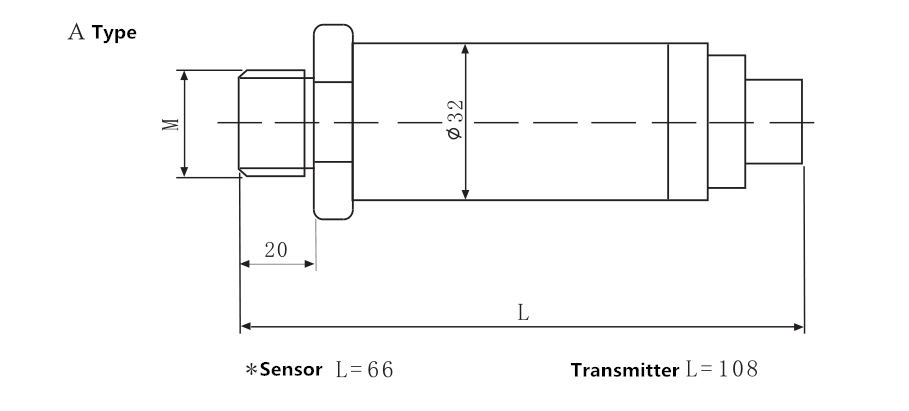

Dimensions:

Housing material: 1Cr18Ni9Ti
Connector size: M20×1.5

Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.

Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.

WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.

With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.

As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
