| Prod Model: |
JTST |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
DC12-32V |
| Constant Current Excitation: |
0.4mA (Suited for Diffused Silicon Sensor) |
| Constant Voltage Excitation: |
2.5VDC(Suitied for Ceramic Piezoresistive Sensor) |
| Stability: |
0.2%/Year |
| Compensation Temperature: |
-30~70c |
| Sampling Rate: |
20~30times/S |
| Measuring Medium: |
Liquid, Gas, Vapour |
Product Description

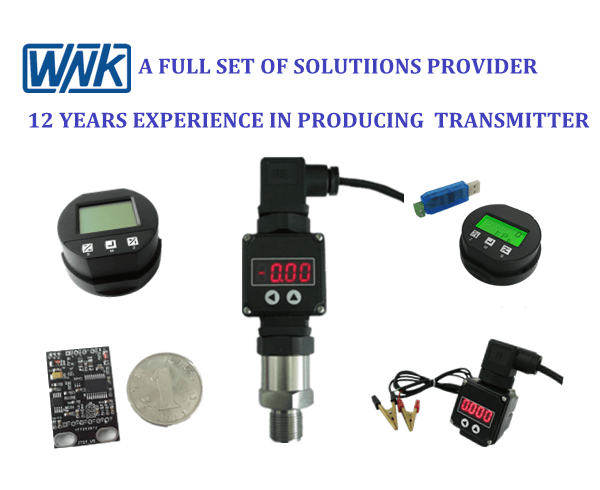

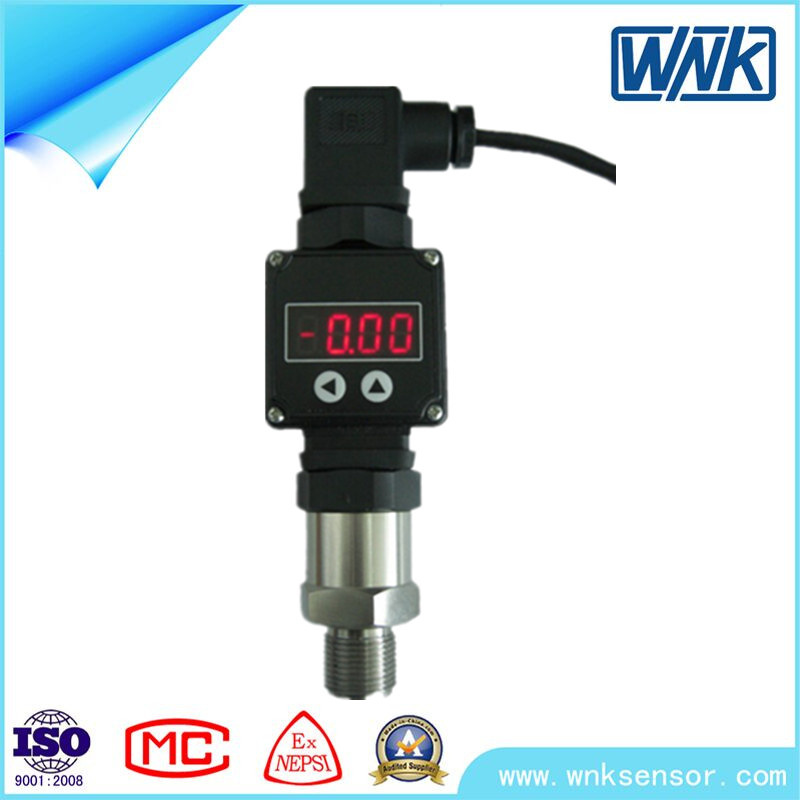

JTST-LED Small Size Intelligent Transmitter ModuleJTST-LED, with the main body of Microcontrollers CPU, is able to do logical operation and programming. It combines analog and digital circuit in one machine, so is able to output analog signal as well as digital signal as per customer's requirement. Parameters configuration and compensation can be done by adjusting programs to approve accuracy grade of transmitters. Adopting HIRSCHMANN connector, JTST-LED is transmitter, display, buttons and communication in one and same device, and can be directly connected with piezoresistive silicon sensor or ceramic piezoresistive sensor to be high performance pressure transmitter. Thus it is more cost-efficient.
Features - Small Size Intelligent Circuit Board with LED Display
- Four-bite high light LED displaying
- Two wires working mode provides sensors with two exciting ways - constant current and constant voltage.
- Calibrating as per full scale realizes bulk production and assures aging test time.
- Easy to do temperature compensation, the complete machine accuracy is better than 0.5% under -30~70ºC
- Three points calibrating, complete machine accuracy better than 0.2%. Multi-point calibrating is available as required.
- AD accuracy > 20 bits, DA accuracy > 16 bits;
- Multi-functions as temperature compensation, small signal wipes off, zero clearing and etc.
- On-site adjusting can be done by bottons
- HIRSCHMANN connection
Technical parameters - Small Size Intelligent Circuit Board with LED Display
| Supply power | DC12-32V (DC 24V is suggested) |
| Constant current excitation | 0.4mA(suitable for diffused silicon, strain gauge sensors) |
| Constant voltage excitation | 2.5VDC(suitable for piezoresistive ceramic pressure sensors) |
| Sampling rate | 20~30times/s |
| Displaying mode | High light LED displaying,displaying 4 digits,3 digits after the decimal point |
| Displaying units | Ten displaying units as KPa, Pa, MPa, mmH2O, mH2O, mbar, bar, PSI, M,% |
| Output resolution | 1uA |
| Temp. compensation accuracy | -30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Range ratio | 10:1 |
| Circuit protection Measurement | surge current protection, reverse power protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200MΩ |
| Communication Protocol | Private protocol |
| Adjusting method | By machine head or program on pc ( zero clearance can be done on-site) |
| Matching transmitters | Suited for small size HIRSCHMANN displaying type transmitters |
| Dimensions | Length=31mm, width=20mm, mounting hole pitch=12.5mm (suited for small size columnar pressure transmitters and input type level transmitters) |
Payment Terms
1. Port of Loading: Shanghai China
2. Samples Lead Time: 3-7 working days
3. Delivery Time: 7-15 working days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not caused by manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

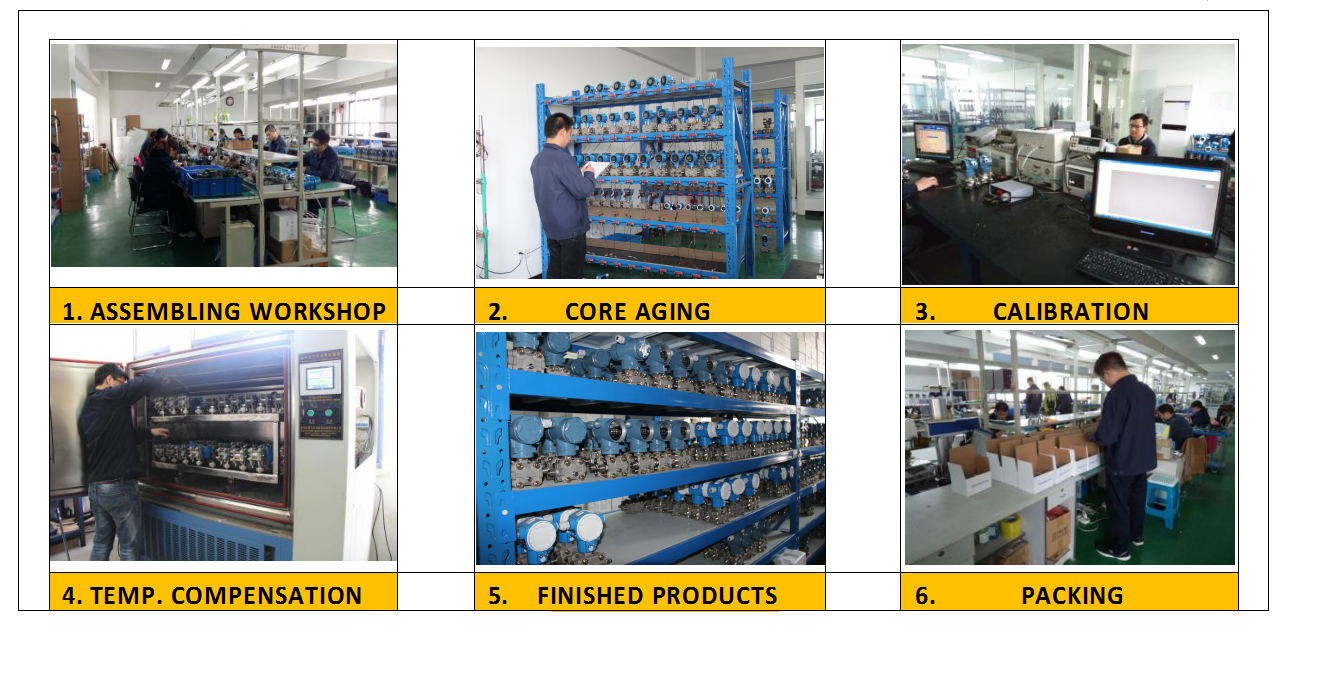

Production Line
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
