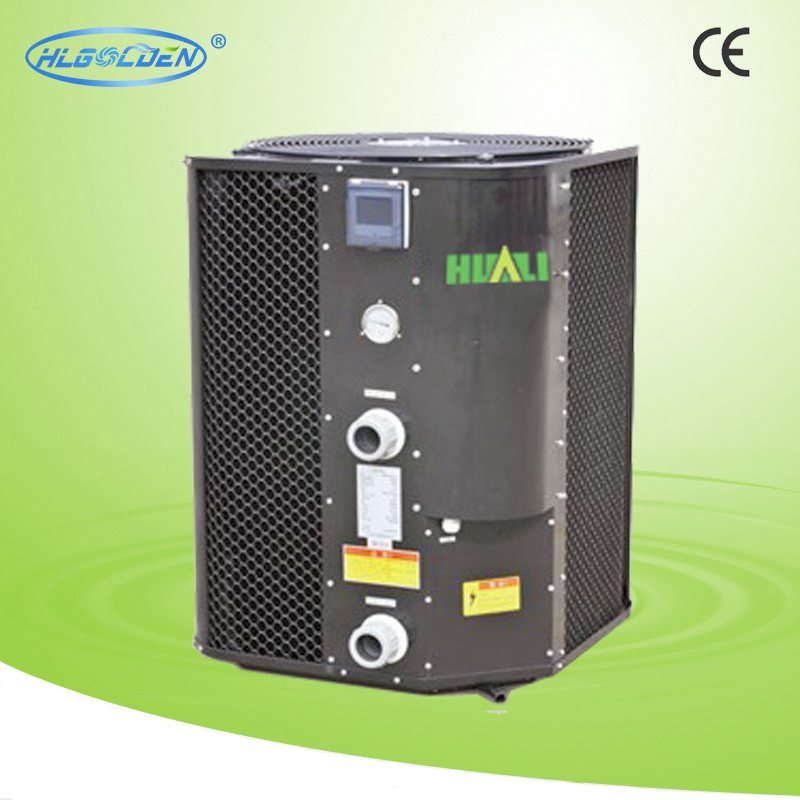

Small Type Swimming Pool Heat Pump 2.7-8.0kw

Name: Small Type Swimming Pool Heat Pump 2.7-8.0kw
Brand: all-electronics-online.com
SKU: 721644565
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	US $ 650/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLLS-4BD~12AD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Capacity:	2700-8000W
Cooling Method:	Indirect Cooling
Type:	Heat Pump
Material:	Stainless Steel
Usage:	for Air Conditioner, for Heating Cooling

Product Description

Swimming pool heat pump

*Constant heating and cooling function, applicable to swimming pool, SPA or fish cultivation.
*Advanced corrosion resistance Titanium heat exchanger, virtually impervious to water chemistry damage.
*World famous Japanese brand compressor.
*Digital LCD display wire control panel, controls water temperature to within 1-5° C difference from set point.
*On-off timing function, no human attendance is required for operation once started.
*Insufficient water flow protection & high/low pressure protection.
*Auto defrosting with 4-way valve, ensure reliably running at low ambient temperature.
*Warms your pool or SPA with the reliability and efficiency can also cool your pool and SPA during hot summer season.

Model HLLS ~			4BD	6BD	8BD	10BD	10AD	12BD	12AD
Model HLLS ~			(1.5P)	(2P)	(2.5P)	(3P)	(3P)	(4P)	(4P)
Heating capacity		W	3800	5300	7800	9500	9500	11300	11300
Heating capacity		BTU/h	13000	18000	26500	32500	32500	38500	38500
Cooling capacity		W	2700	3700	5500	6700	6700	8000	8000
Cooling capacity		BTU/h	9000	12000	18500	23000	23000	27500	27500
Heating range		° C	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40	15 ~ 40
Cooling range		° C	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30	8 ~ 30
Heating input power		W	791	1083	1625	1938	1980	2354	2306
Cooling input power		W	775	1050	1590	1890	1928	2300	2250
Running current heating		A	3.6	5	7.5	8.8	8.8	10.7	10.6
Running current cooling		A	3.5	4.9	7.3	8.6	8.7	10.5	10.4
COP			4.9	4.9	4.8	4.9	4.8	4.8	4.9
EER			3.5	3.5	3.5	3.5	3.5	3.5	3.6
Compressor Type			Scroll
Power Supply			220V/1ph/50Hz
Refrigerant			R407C, R410A
Fan Motor Input		W	25	25	25	30	200	150	200
Fan Speed		RPM	890	950	950	950	830	850	830
Noise		dB(A)	52	55	55	58	60	60	60
Water Connections		inch	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"	1-1/2"
Water Flow Volume		m 3 /h	2-4	2-4	3-5	4-7	4-7	5-8	4-7
Water Pressure Drop		kpa	10	12	12	15	15	15	15
Applicable ambient temp.		° C	-7+43	-7+43	-7+43	-7+43	-7+43	-7+43	-7+43
Dimension	L	mm	935	935	935	1010	660	1115	660
	W		360	360	360	370	660	470	660
	H		520	520	520	585	860	690	860
Paking Dimension	L	mm	1045	1045	1045	1140	750	1220	750
	W		380	380	380	390	710	480	710
	H		600	600	600	680	980	710	980
Weight	NW.	kg	40	48	50	57	74	81	79
Weight	GW.	kg	44	52	54	63	91	97	96
Loading quantity (20' /40G/40H)			90/198/264	90/198/264	90/198/264	84/174/174	48/96/96	60/129/129	48/96/96

Dongguan Golden Refrigeration Equipment Co., Ltd. Specializes in the research and development, engineering design, installation, maintenance and repair of central air conditioner, refrigeration equipment and electro-mechanical equipments. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.

Our company has owned customers' approval with advanced technical

Performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
