| Prod Model: |
JK57HS-JK86HS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
2-12V |
| Current: |
0.4-5A |
| Resistance: |
0.5-30ohm |
| Inductance: |
1.5-32mh |
| Key Word: |
Worm Gear Motor |
| Wires: |
4/6/8 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Electromechanical |
| Application: |
CNC Machine |
| Operate Mode: |
Double Beat |
| Certification: |
CE and RoHS |
| Brand: |
Jkong Motor |

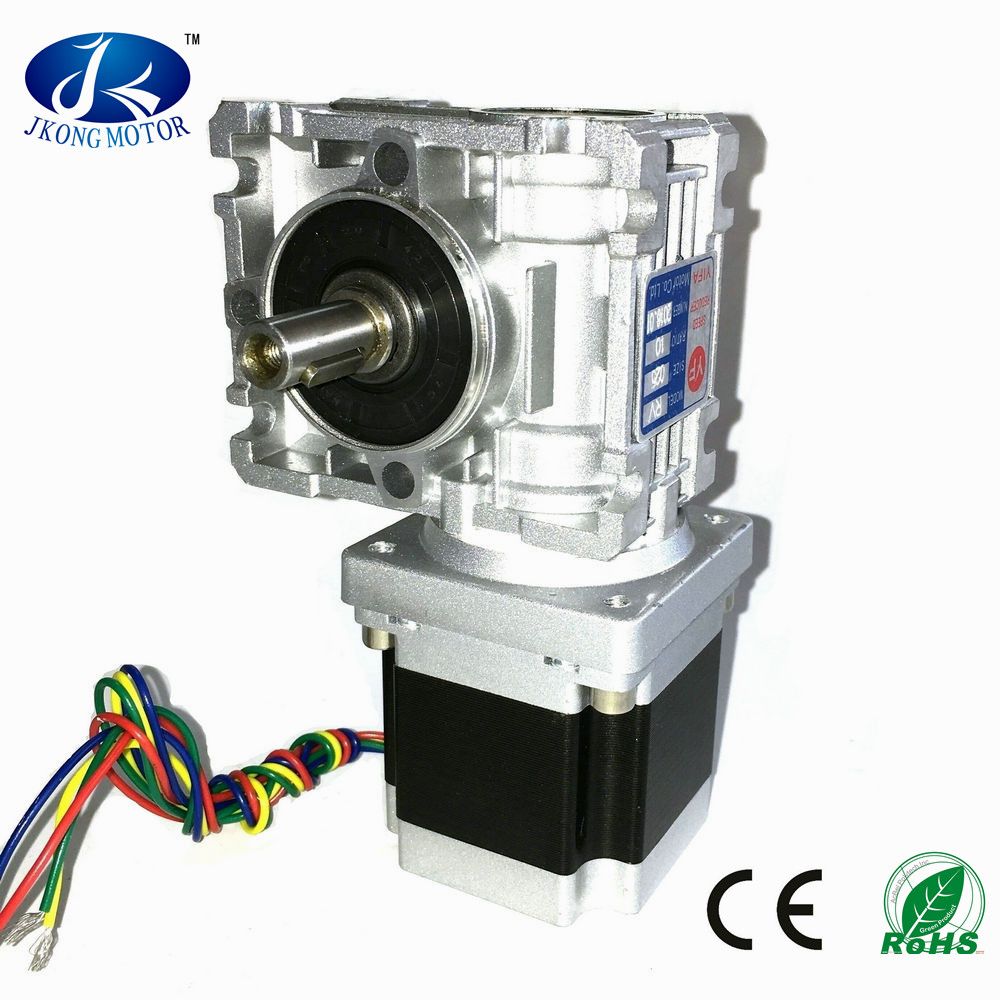

Product Description
Small worm gear stepper motor Stepper Motor Applications:Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
- Printers
- CNC machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
Genaral Specification:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current
/Phase | Resistance
/Phase | Inductance
/Phase | Holding Torque | Lead wires | Detent Torque | Rotor Inertia | Motor
Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg |
| JK57HS41-1006 | 1.8 | 41 | 1 | 5.2 | 5.5 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2006 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-3006 | 1.8 | 41 | 3 | 0.63 | 0.6 | 0.39 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2006 | 1.8 | 51 | 2 | 1.65 | 2.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-3006 | 1.8 | 51 | 3 | 0.74 | 0.9 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 350 | 280 | 0.68 |
| JK57HS56-1006 | 1.8 | 56 | 1 | 7.4 | 10 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-3006 | 1.8 | 56 | 3 | 0.75 | 1.1 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.26 | 4 | 350 | 280 | 0.68 |
| JK57HS76-1006 | 1.8 | 76 | 1 | 8.6 | 14 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2006 | 1.8 | 76 | 2 | 2.25 | 3.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.13 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS82-3004 | 1.8 | 82 | 3.0 | 1.2 | 4 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS82-5004 | 1.8 | 82 | 5 | 0.6 | 1.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS112-3004 | 1.8 | 112 | 3.0 | 1.6 | 6.8 | 2.8 | 4 | 1200 | 800 | 1.4 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.8 | 4 | 1200 | 800 | 1.4 |

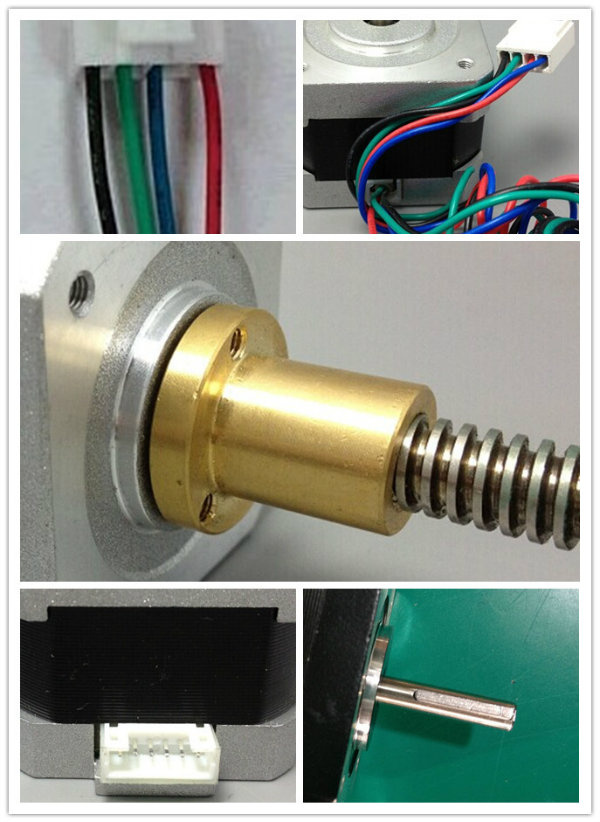

Shaft & Wires
Round shaft, D-shaft, Keyway shaft and your demended shaft.
Extensive line: Leading wires, circuit board, with connectors
Connectors: Leading wires, or Dupont M20 4pin, XH 4pin, 2510 4pin, VH 4pin.
Our Packing:
Inner flexible foam, outside carton & Wrapping filem
Company Show:
CHANGZHOU JINGKONG MOTOR & ELECTRIC Appliance Co.ltd is a high-tech enterprise that specializes in designing and producing Hybrid Stepper Motor, Gear Motor, Linear motor, Brushless dc Motor, Driver and some related parts.
Our Appliance fields refer to robot, electronic equipment, medical instrument, ad instrument, lighting & audio equipment, 3D printer, texile machine and CNC machine.
All our products have obtained CE certification, compliance with EU ROHS standards.
Welcome Domestic & foreign customers visit and cooperation!
Our Service:
1.Warranty One Year
2.If products in Stock, Deliver goods that very day.
3.If customizing, 2-4weeks according to specific order quantity.
4.Products will be sent by DHL, FEDEX, UPS, TNT.
5.About package, inner flexible carton, outside carton box and plastic wrap.
6.Various products for your choice, meeting all your requirement.
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
