| Prod Model: |
JT2088L |
| Power Supply: |
DC12-32V |
| Mounting Hole Pitch: |
55.14mm |
| Dimension: |
Diameter=61mm |
| Measuring Pressure: |
Gp, Dp, Micro Dp |
| Operating Temperature: |
-30°c ~ +70°c |
| Transmitters Matching: |
Diffused Silicon, Strain Gauge, Level Pressure Tra |
| Sampling Rate: |
>20 Times/Second |
| Warranty: |
1 Year |
| Measuring Medium: |
Gas, Steam, Liquid |
| Pressure Range: |
-100kpa~60MPa |
Product Description

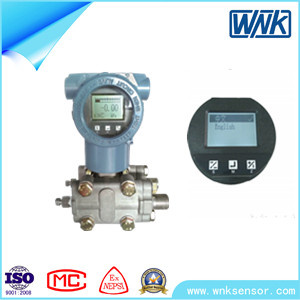

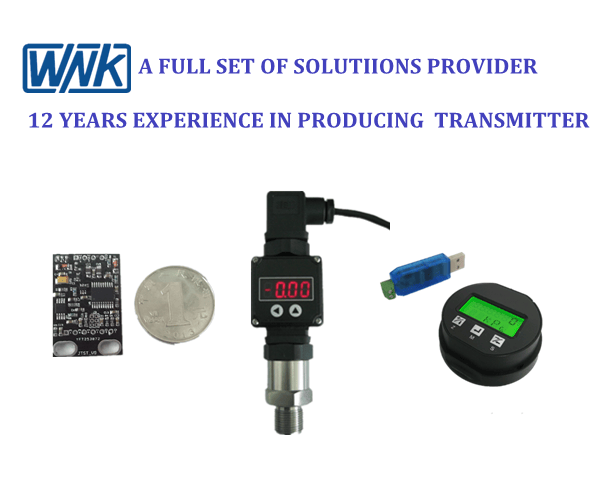

JT2088L, Diezoresistive Silicon Intelligent Circuit Board
Introduction:
JT2088L Diezoresistive Silicon Intelligent Circuit Board replaced the original 4~20mA analog board. With the main body of Microcontrollers CPU, JT2088L is capable to do logical operation and programming. It combines analog and digital circuit in one machine, so is able to output analog signal as well as digital signal. Parameters configuration and compensation of transmitters can be done by buttons on LCD module and internal debugging program. JT2088L supports standard diffused silicon, strain gauge,piezoresistive ceramic pressure sensors. It is suited for JT2088L housing.
Features:
1.Two wires working mode provides sensors with two exciting ways - constant current and constant voltage.
2. Calibrating as per full scale realizes bulk production
3.Easy to do temperature compensation, under -20~70ºC the complete machine accuracy better than 0.5% (including accuracy of sensors)
4.Three points calibrating, complete machine accuracy better than 0.2%. Multi-point calibrating is available as required.
5.AD accuracy > 20 bits, DA accuracy > 16 bits;
6.span can be changed on-site by LCD module buttons without standard pressure source
7.Small signal wiping off and reset function
8.LCD head is available to use once connected with sensor, free from calibration. And the head is dismountable, customers could equip LCD indicator or not.
Technical parameters:
| Supply power | DC9-32V (DC 24V is suggested) |
| Constant current excitation | 0.4mA(suitable for diffused silicon, strain gauge sensors) |
| Constant voltage excitation | 2.5VDC(suitable for piezoresistive ceramic pressure sensors) |
| Sampling rate | 20~30times/s |
| Displaying and bits | LCD with backlight, displaying 5 bits, and 4 decimal places |
| Displaying units | Ten displaying units as KPa, Pa, MPa, mmH2O, mH2O, mbar, bar, PSI, M,% |
| Output resolution | 1uA |
| Temp. compensation accuracy | -20~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity is better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Range ratio | 0.417361111 |
| Circuit protection Measurement | surge current protection, reverse power protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200MΩ |
| Communication Protocol | Private protocol |
| Adjusting method | by buttons on LCD head or program on pc |
| Dimensions | OD=52.4mm, Mounting hole pitch=44mm (suited for pressure and level transmitter in JT2088L housing) |
| Motherboard buttons operation | reset, lower range calibration(zero drift under pressure source), upper range calibration (full scale calibration) |
| LCD head buttons operation | changing span units, decimal place, output features, changing damping time, currant fixing, write-protection,factory reset and zero clearing |

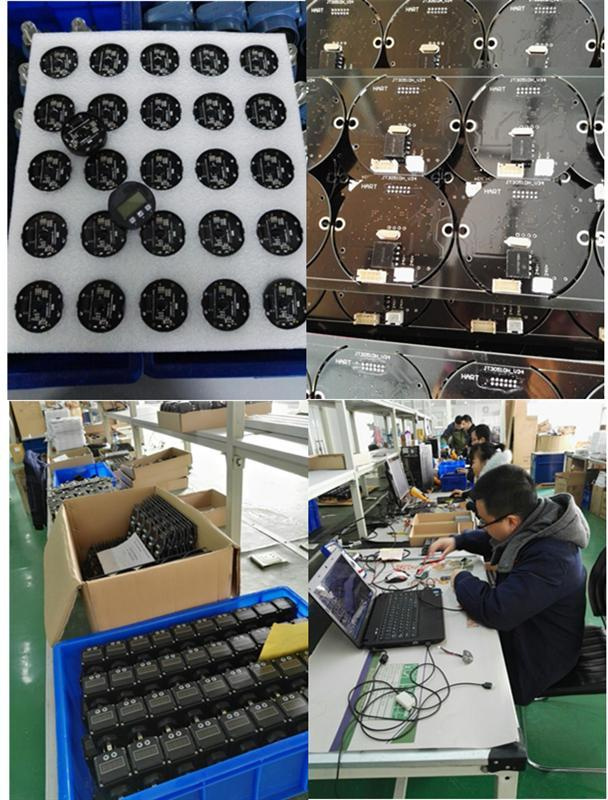

Production Line
