| Prod Model: |
JTST-LED |
| Output Signal: |
4~20mA, 1-5V |
| Housing Material: |
304 Stainless Steel |
| Stability: |
0.25% F.S./Year |
| Zero Drift: |
50% of Full Range Span |
| Measuring Medium: |
Gas, Steam, Liquid |
| Accuracy Grade: |
0.1 0.2 0.5 |
| Pressure Range: |
0~600bar |
Product Description
Introduction:

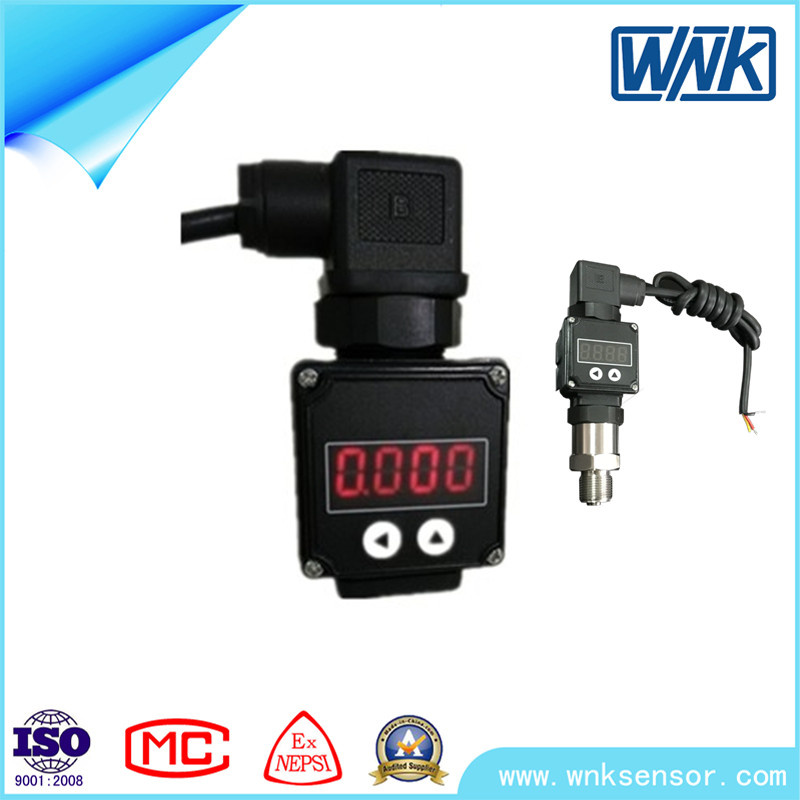

JTST-LED Small Size Intelligent Transmitter Module, with the main body of Microcontrollers CPU, is able to do logical operation and programming. It combines analog and digital circuit in one machine, so is able to output analog signal as well as digital signal as per customer's requirement. Parameters configuration and compensation can be done by adjusting programs to approve accuracy grade of transmitters. Adopting HIRSCHMANN connector, JTST-LED is transmitter, display, buttons and communication in one and same device, and can be directly connected with piezoresistive silicon sensor or ceramic piezoresistive sensor to be high performance pressure transmitter. Thus it is more cost-efficient.
Features:
1. Four-bite high light LED displaying
2. Two wires working mode provides sensors with two exciting ways - constant current and constant voltage.
3. Calibrating as per full scale realizes bulk production and assures aging test time.
4. Easy to do temperature compensation, the complete machine accuracy is better than 0.5% under -30~70ºC
5. Three points calibrating, complete machine accuracy better than 0.2%. Multi-point calibrating is available as required.
6. AD accuracy > 20 bits, DA accuracy > 16 bits;
7. Multi-functions as temperature compensation, small signal wipes off, zero clearing and etc.
8. On-site adjusting can be done by bottons
9. HIRSCHMANN connection
Technical parameters:
| Supply power | DC12-32V (DC 24V is suggested) |
| Constant current excitation | 0.4mA(suitable for diffused silicon, strain gauge sensors) |
| Constant voltage excitation | 2.5VDC(suitable for piezoresistive ceramic pressure sensors) |
| Sampling rate | 20~30times/s |
| Displaying mode | High light LED displaying,displaying 4 digits,3 digits after the decimal point |
| Displaying units | Ten displaying units as KPa, Pa, MPa, mmH2O, mH2O, mbar, bar, PSI, M,% |
| Output resolution | 1uA |
| Temp. compensation accuracy | -30~70ºC complete machine accuracy is better than 0.5% (including accuracy of sensor) |
| Linearity accuracy | Complete machine linearity better than 0.2% (Multi-point calibrating is available as required) |
| Stability | 0.2%/Year |
| Range ratio | 10:01 |
| Circuit protection Measurement | surge current protection, reverse power protection |
| Circuit design | Intrinsic safety |
| Isolation range | >200MΩ |
| Communication Protocol | Private protocol |
| Adjusting method | By machine head or program on pc ( zero clearance can be done on-site) |
| Matching transmitters | Suited for small size HIRSCHMANN displaying type transmitters |
| Dimensions | Length=31mm, width=20mm, mounting hole pitch=12.5mm (suited for small size columnar pressure transmitters and input type level transmitters) |
