Hefei WNK Smart Technology Co., Ltd. >> Smart 4-20mA Pressure Transmitter Waterproof Liquid Level Transmitter with Corrosive Resistant Cable

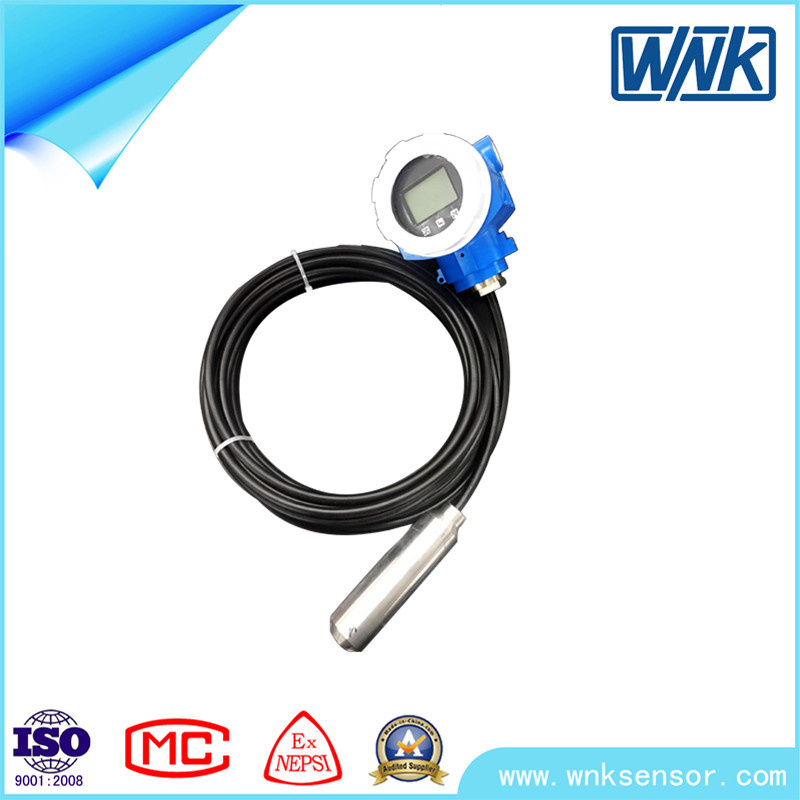

Smart 4-20mA Pressure Transmitter Waterproof Liquid Level Transmitter with Corrosive Resistant Cable

Smart 4-20mA Pressure Transmitter Waterproof Liquid Level Transmitter with Corrosive Resistant Cable
Price: US $ 25-40/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: WNK810-1
Output Signal: 4-20mA, 0-10mA, 0-5V, 1-5V
Housing Material: 304 Stainless Steel
Stability: 0.25% F.S./Year
Zero Drift: 50% of Full Range Span

Product Description

Smart 4-20mA Pressure Transmitter Waterproof -Liquid  Level Transmitter

Application

Level measuring
Constant pressure water supply
Metallurgy, environment protection
Medical treatment and etc.


Technical data
Output signals
Output4-20mA, 0-10mA, 0-5V, 1-5V
 customization
Measured range
Measured range0-0.5~200mH2O
Max overload150% of sensor range

Parameters
Applicable mediaLiquid, Water
Accuracy±0.2% FS/year, ±0.5% FS/year
Stability±0.25% FS/year
Housing materialStainless steel
Cable materialPolyvinyl Fluoride, PTFE
Power supply24V DC
Ambient temperature-20~85ºC
Process temperature-20~85ºC
Compensation temperature-20~85ºC
Protection classIP68

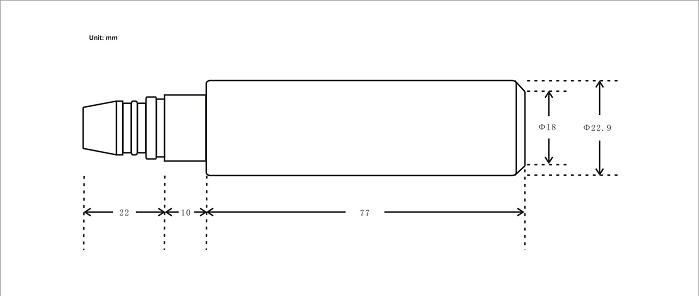

Dimension

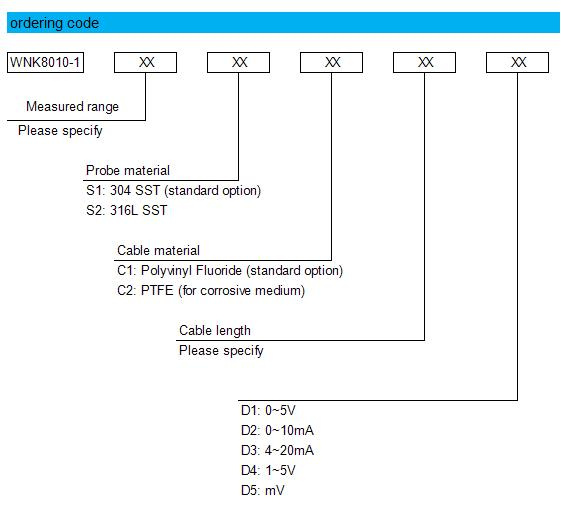

Ordering sheet





About us


Delivery
5~10 days after order confirmed

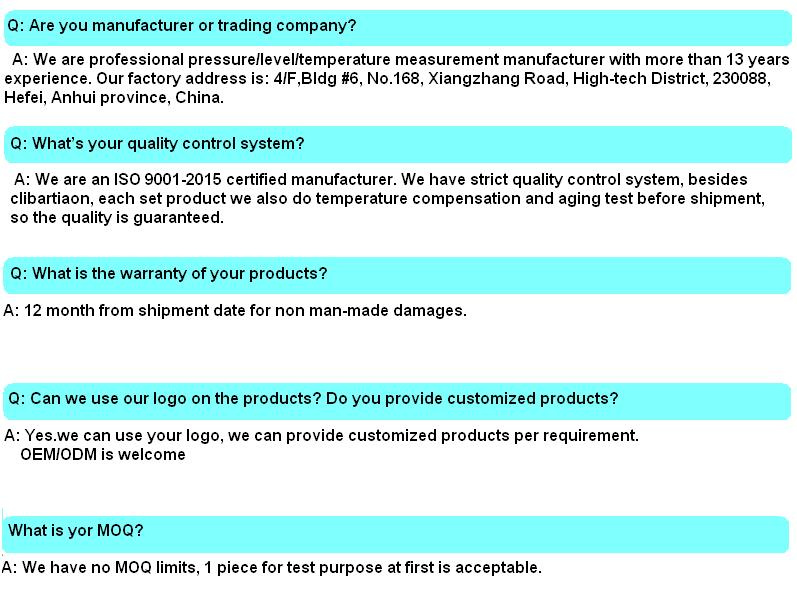

FAQ




Customer specific requirement ODM/OEM is welcome.



Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.

Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.

WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.

With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.

As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
