Smart 4-20mA Pressure Transmitter with Flush Diaphragm for High Temperature
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
WNK805 |
| Output Signal: |
4~20mA, 1-5V |
| Housing Material: |
304 Stainless Steel |
| Stability: |
0.25% F.S./Year |
| Zero Drift: |
50% of Full Range Span |
| Measuring Medium: |
Gas, Steam, Liquid |
| Accuracy Grade: |
0.1 0.2 0.5 |
| Pressure Range: |
0~600bar |
Product Description

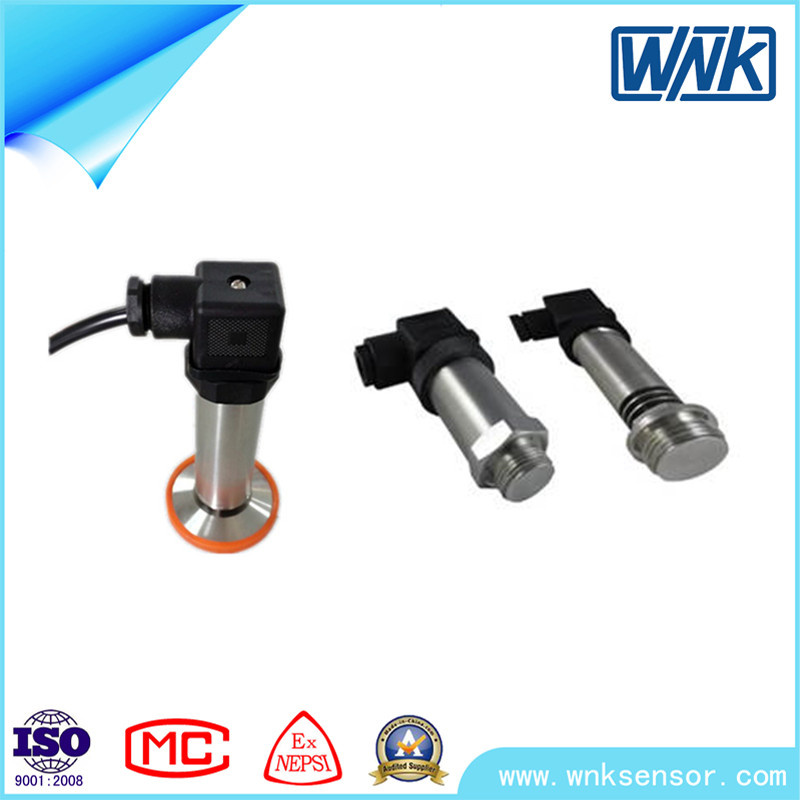

1-5V 4-20mA Stainless Steel Pressure SensorWNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stablyApplicationIt is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media, it can also be used for level measurementTechnical data| 1-5V 4-20mA Stainless Steel Pressure Sensor |
| Applicable media | Liquid, Gas, Steam |
| Pressure range | 0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa |
| Pressure measurment | Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure |
| Accuracy | 0.1, 0.2, 0.5 |
| Stability | ±0.25% FS/year |
| Zero drift | 50% of full range span. |
| Max overload | 250% of sensor range |
| Output signals | 4~20mA, 1-5V |
| Display | LED (Optional) |
| Housing material | 304 stainless steel |
| Mechanical connection | M20×1.5; 1/2-18NPT, Customized |
| Power supply | Non-explosion: 10.5~45V DC |
| EEX ia:10.5~30 V DC |
| Ambient temperature | -40~85ºC |
| Compensation temperature | -10~70ºC |
| working temperature | -10~70ºC |

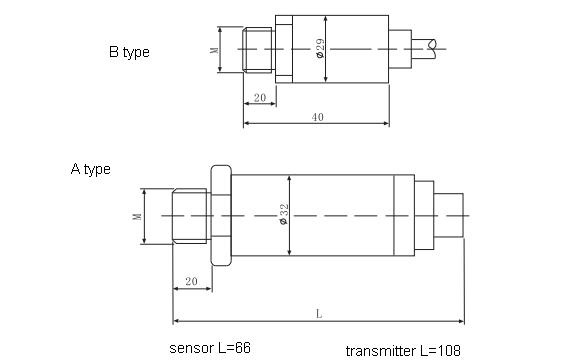

Dimension
Why Choose us?
1. 1. We are professional manufacturer with own R&D and sales team, with more than 12 years producing experience in transmitters & sensors.

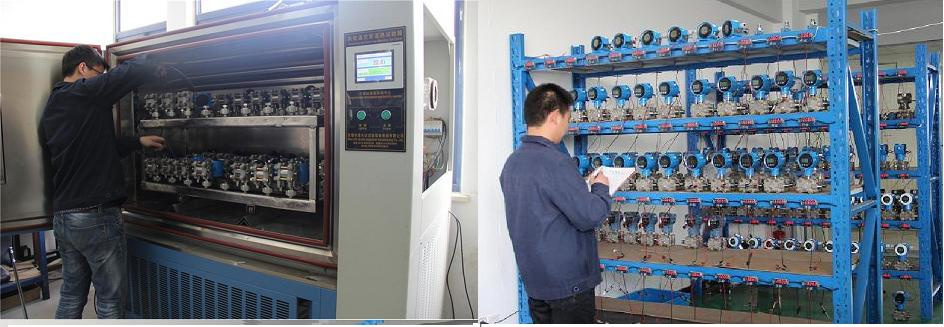

2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed
FAQ
Q1: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q2: What's your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q3: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q4: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q5: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q6: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.Customer specific requirement /ODM/OEM is welcome.Contact usLily Huang
Cell phone: 86-13637069952
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
