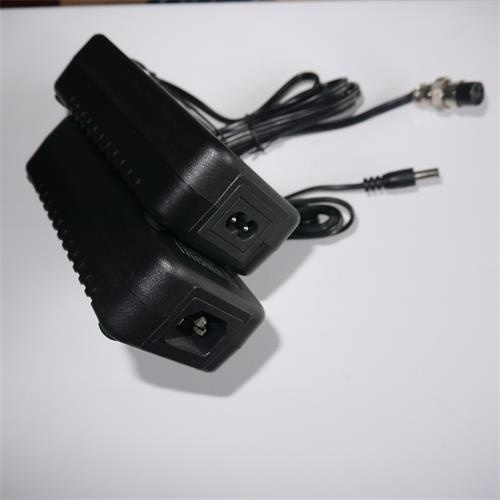

Smart Battery Charger&12V Car Battery Charger
| Price: |
US $ 4.5/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
48V20AH |
| Product Name: |
Electric Bicycle/UPS Battery Charger for 6s 2A Li- |
| Low Mqq: |
100PCS |
| Materical: |
Plastic |
| Recyclable: |
Non-Recyclable |
| Shipport: |
Shanghai |
| Type: |
Lead-Acid Battery Charger |
| Charging Type: |
Electric Charger |
| Principle: |
Standard Battery |
Product Description
Product Description
G60-12A 12V Car Lead Acid Battery Charger with Battery Meter
| Specification |
|---|
| Input: 100~240V |
| Output: 13.8V 3.3A |
| Charge Process: MCU Control, With Recovery Function |
| Charger Indicator: With 20%~100% Battery Fuel Gauge |
| Output Protections: Short-circuit, Reverse Polarity |
| Safety Approval: CE cUL |
| Size: 120 x 67 x 41mm |
| Suit for Battery: 12 Volt 4~40Ah Lead-Acid Battery Charger |
FX Group is a main member of digital-chargers from AnHuiFengXIn Co., Ltd. It represents today's new technology for lead-acid type battery charging. G60-12A programmed four auto stages (Ud-Im-Uo-Up) charging process, It is designed for all kinds of 12V 7~80Ah lead-acid battery, such as SLA, AGM and Gel battery. Stage "Ud" desulfurating the battery through 18V pulse,When the battery recovered, stage "Im" will give bulk current charging( 3.3A or 2.0A). Then, "Uo" stage is followed, the output voltage is limited on 14.7V; When the battery is nearly full, stage"Up" will turn on duty. At this stage, the battery is charged completely and the charger give some pulse to maintenance the battery.
Further, FxGroup can display the charging process, indicate the battery capacity from 25% to 100% timely. This is helpful for user.
For more safety, FxGroup will inter protection mode when the battery polarity reversed or the output connectors shorted.
Specification for G60-12A| Input Voltage | 100-240VAC, 50-60Hz |
| Input Current | 1.1A |
| Back current drain | 1.3mA |
| Charge voltage | Rating 12V, Bulk limited voltage : 14.7V |
| Ripple current | Current-ripple:<= 0.13A rms |
| Bulk charge current | 3.3A for G60-12A, 2.0A for G60-12AS |
| Operate Temperature | -20ºC~50ºC |
| Cooling | Natural convection. Do not cover the charger. |
| Charge principle | Auto 4 stages: Ud-I-Uo-Up |
| Battery type | All types of 12V lead-acid batteries.( SLA, Gel, AGM.) |
| Battery capacity | 7-80Ah for G60-12A, 4~40Ah for G60-12AS |
| Size | 120X67X41mm |
| Enclosure | IP54 (Dust protected, Water splashing resistance) |
| Weight | 270g |
How to use:
1. Connect the AC cord to the socket, The "power" lamp will light on RED.
2. Connect positive charger clip (red) to positive battery terminal, the black clip to negative. (You can use other dc plugs to connect battery), the "25%~100%" lamps will light on flowing. If the battery polarity reversed or output shorted, all lamps will flashing, please check the setup.
3. Depend on the charged capacity, 25%~100% lamps will lights up solid sequence, until the battery is fully charged. Then you can power off the charger and disconnect the battery or you can charge a new battery if you need.
The table shows the duration of the Bulk stepup to about 80% state of charge. | Battery type(Ah) | G60-12A(hours) | G60-12AS (hours) |
| 12 | 3 | 5 |
| 22 | 7 | 10 |
| 45 | 14 | 20 |
| 75 | 22 | Not recommend |
FX Group, as a high-tech enterprise which gathering the design creation, and production service in the fields of Fiberglass products like AGM Separator, Battery Separator, Composite Separator and the accessories of trucks like Roll Up Door, Aluminum Roller Shutter for Fire-fighting trucks, the ladders and some other accessories which was established in 2005 year and waslocated in Chuzhou city.
We had two plants with the total area of 40 thousand square meters, one plant was located in Chuzhou city and one plant was located in Changzhou city. The plant in Changzhou city major involved in the fiberglass products, the production capacity of our AGM battery separator which used in the VRLA battery arrive to 5000tons/year, we have total three production lines which imported from Japan, now our year exporting annual is about 5million USD per year, and the AGM battery separator was accepted and popular in India, Vietnam, Pakistan, Middle East and some other countries also. Our another plant which located in Chuzhou city major involved in the truck accessories, all the goods quality was making according to Europe standard, till now on we had been exported our truck roll up doors to Brazil, America, Iran, Dubai UAE, India and so on
FX has a great team that own leading and professional technique, standard management and perfect service. We have built long-term and steady business relationship with hundreds of customers all over the world.
We inherit our persistent in service strategy of quality at the first priority and clients at the uppermost.
We will prvide more relaable products and offer the better, safety. And efficientcy services for you.
We are sincerely looking forward to cooperating and communicating with you.
Choose FX, Choose The Best!
