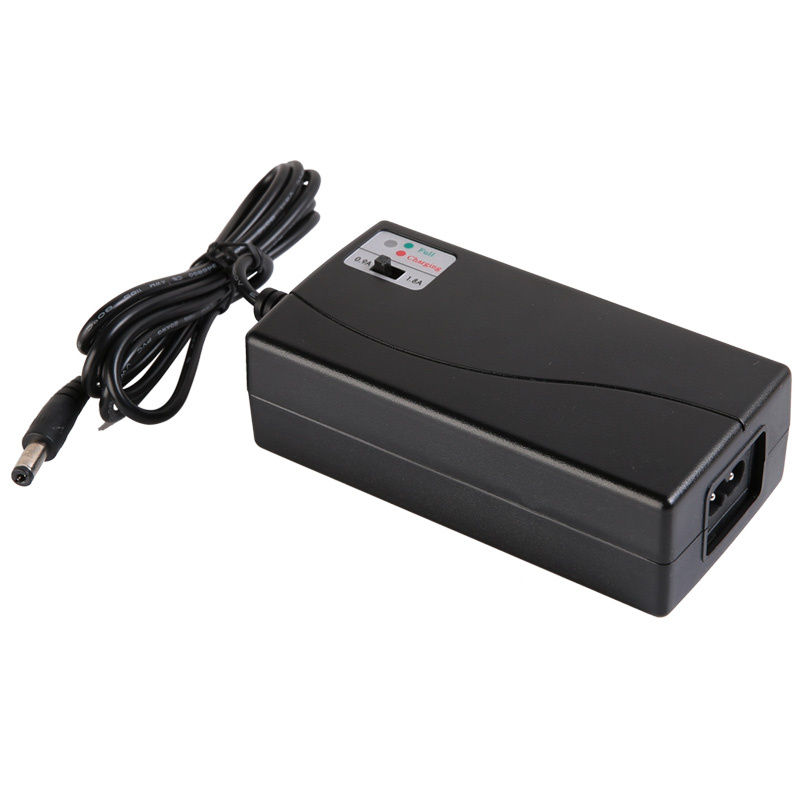

Smart Battery Charger for 7.2V~12V NiMH Battery

Name: Smart Battery Charger for 7.2V~12V NiMH Battery
Brand: all-electronics-online.com
SKU: 772604905
Availability: InStock
Rating: 5 (116 reviews)

Price:	US $ 9-11.5/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3PN3020MP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Customized:	Yes
Case:	PC+ABS Plastic
Color:	Black
Recovery Function:	Yes
MCU Controller:	Yes
Short Circuit Protection:	Yes
Reverse Potection:	Yes
LED Dispaly:	Yes
Delivery Date:	3-4 Weeks
Type:	Ni-MH Battery
Charger Type:	NiMH Battery Charger
Charger Application:	Electric Car Balance, Miner's Lamp, RC Toy
Nominal Voltage:	16V
Compatible Battery Type:	7.2~12 Volt (6~10cells) 2~10ah NiMH/NiCd Battery
Size:	107 X 61 X 36mm
Socket Type:	UL, VDE, PSE, UK, SAA...

Product Description

3PN3020MP Smart Battery Charger for 7.2V~12V nimh Battery

Specification
Input: Worldwide AC 100~240V
Output: 16V 1.8A
Charge Process: -dV detect, >=5mV/cell
Charger Indicator: Bi-color, Red for charging, Green for finished
Output Protections: Short-circuit, reverse polarity...
Safety Approval: CE cUL marked
Size: 107 x 61 x 36mm
Suit for Battery: 7.2~12 Volt (6~10Cells) 2~10Ah NIMH/NICD Battery Charger

Feature:

Standard CC. charging process. Build-in MCU controller, -dV cut-off typical precision is 5mV per cell, with inner timer termination (default is 8 hours)

Designed for 6~10 series 2000~10000mAh NIMH and NICD battery pack

With bi-color LED indicator, easily know the charging process: Red for charging, Green for Full.

Protection mode for battery polarity reversed and the output connectors shorted.

UL, CE approval (EN60335 and UL1310)

Specification for 3PN3020MP

Input Voltage	100-240VAC, 50-60Hz
Input Current	0.6A
Back current drain	<2mA
Charge voltage limited	3PN3020 (for 7.2~12V NIMH/NICD) (suit for 3s~4s)	3PN3020MP (for 7.2~12V NIMH/NICD) (Suit for 7s~10s)
	16V	16V
Constant charge current	1.8A±5%	1.8A & 0.9A (with a slid switch) < 0.07A (average)
Cutoff condition	-dV>=5mV/cell or Timer out or Peak-voltage trigger
Operate Temperature	-10ºC~40ºC
Cooling	Natural convection. Do not cover the charger during charging
Charge principle	Main CC-Trickle
Battery type	7.2V~12V 6~10 Series 2000mAh~10000mAh NIMH and NICD battery pack
Temperature Sensor required	Not applied
LED display	One bi-color LED indicator, Red for charging, Green for charged
Size	117 x 61 x 37mm
Output cable and plug	1.5m AWG#18, barrel bar plug. (5.5 x 2.1 x 10mm is default)
Input plug	US, VDE, UK or SAA, defined by user
Enclosure	ABS+PC Plastic housing
Weight	240g

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
