Prod Model: |
VT900 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
GPS Chip: |
U-Blox 7 |
GSM Module: |
Legal IMEI & Ce Certificate |
Free Tracking Platform: |
Yes |
Warranty: |
Two Years |
Data Logger: |
4MB Data Logger |
Backup Battery: |
850mAh |
Passive RFID: |
Support |
Fuel Sensor: |
Support |
Camera: |
Support |
Input Voltage: |
9 ~ 36V |
Product Description
Smart car alarm Vehicle GPS Tracker with Camera Fuel Sensor RFID (*Free tracking platform *Two years warranty *Two way location *Two way communication * CE&RoHS certificate)
Solution 1: GPS tracker + car alarm When driver close the vehicle with lawful RFID tag, tracking system will disarm vehicle automatically,
When driver leave the vehicle with lawful RFID tag, tracking system will arm vehicle automatically.

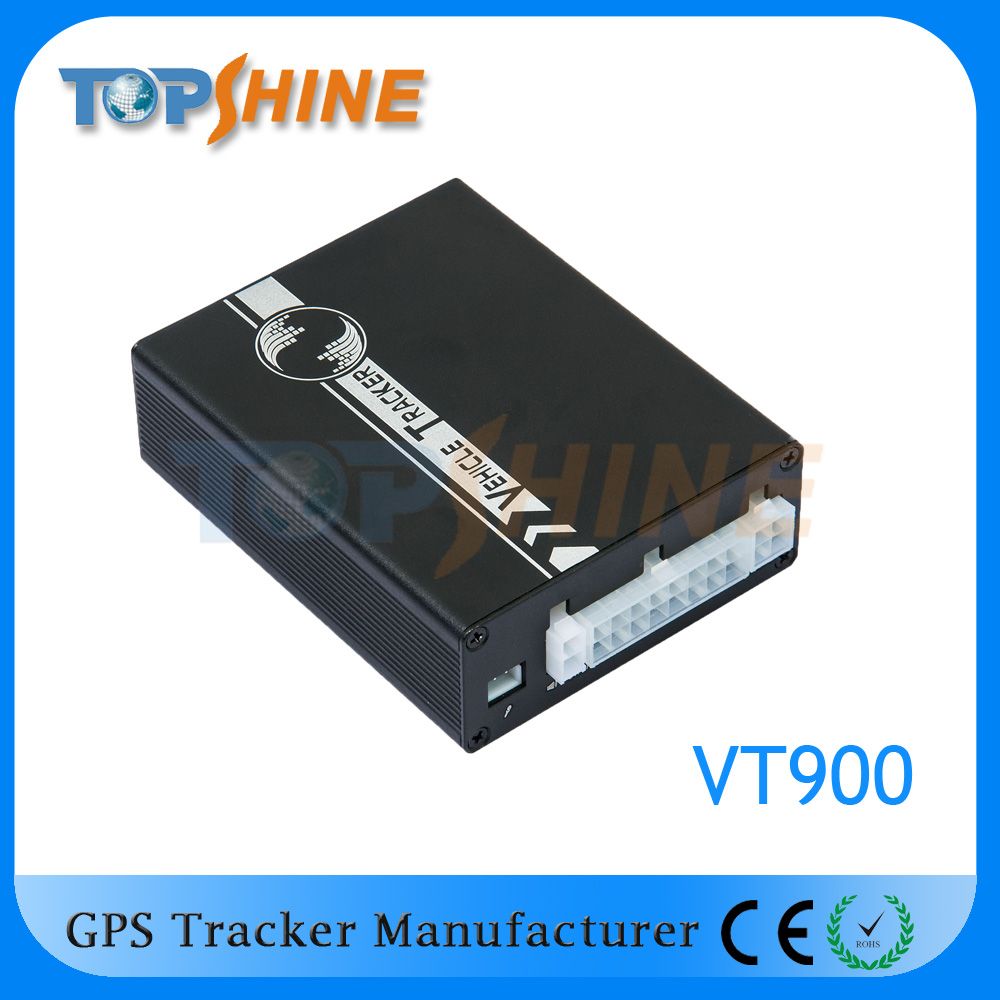

In armed status, if illegal people open the door / movement the vehicle / ignition, tracking system will send alarm message and call to our preset phone number, siren also will sounding automatically.Solution 2: GPS tracker + Driver ID identify When driver close the vehicle with lawful RFID tag, tracking system will check this tag ID, and upload ID number to FPRS01 tracking platform, we can know who drive which vehicle via platform.Products Overview Topshine tracker VT900 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; Support unique passive RFID for automatic anti-theft and driver identification; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application
* Vehicle Real Time Tracking
* Car Security/Anti-Hijack
* Comprehensive fleet managementSpecification Items | Specifications |
Dimension | 110*80*30mm |
Weight | 180g |
Input voltage | DC 9V~35V/1.5A |
Back-up Battery | 850mAh |
Velocity | 515 meters/second (1000 knots) max |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% Non-condensing |
Altitude Limit | 18,000 meters (60,000 feet) max |
LED | 2 LED lights to show GPS, GSM status |
Cold start | 42sec., average |
Hot Start | 1 sec., average |
GSM Frequency | GSM 850/900/1800/1900MHz or GSM 900/1800/1900 MHz |
GPS Frequency | L1, 1575.42 MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -158dB |
Positioning Accuracy | 10meters, 2D RMS |
C/A Code | 1.023 MHz chip rate |
Channels | 20 channel all-in-view tracking |
Velocity Accuracy | 0.1m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
I/O | 5 Input 5 Output 1 Camera Port 4 Analog Input 1 USB Port 1 MIC& Speaker Port |
Features list of GPS tracker* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Get position location via call/SMS
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc)
* Analog input for Fuel sensor detecting/monitoring, support max 4 fuel sensor manageMore alarms * Accident alarm
* Oil leaking/Refuel Alarm
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Suddenly acceleration/brake alert

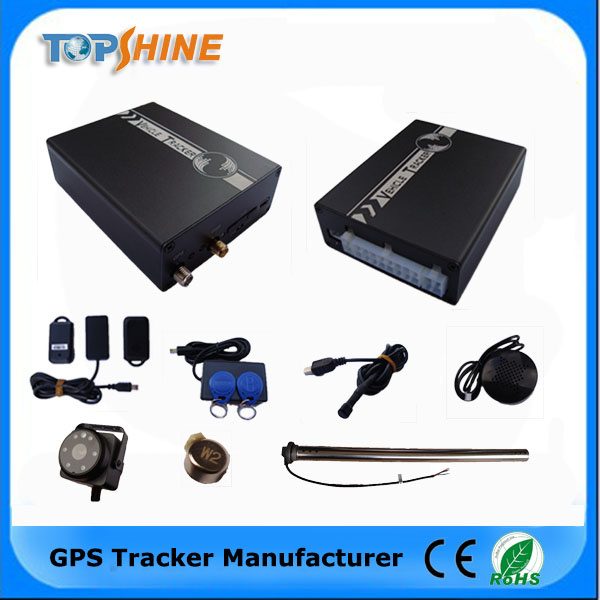

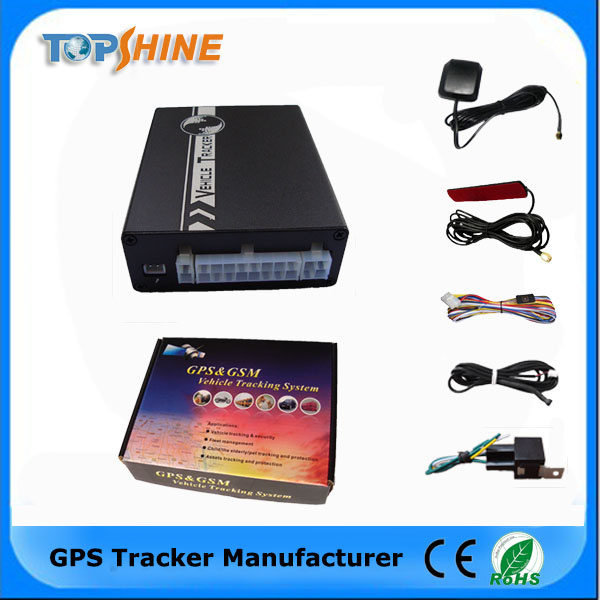

* Harsh braking and harsh acceleration alertPackage and Accessories Standard Accessories |
Main unit | SOS button |
GSM antenna | Microphone |
GPS antenna | Relay |
Wiring | |
Optional Accessories |
Fuel sensor | Crash sensor |
Temperature sensor | Smart phone reader |
Active RFID | Active RFID Tag |
Passive RFID | Passive RFID Tag |
Speaker | Camera |
USB configuration cable | Siren |

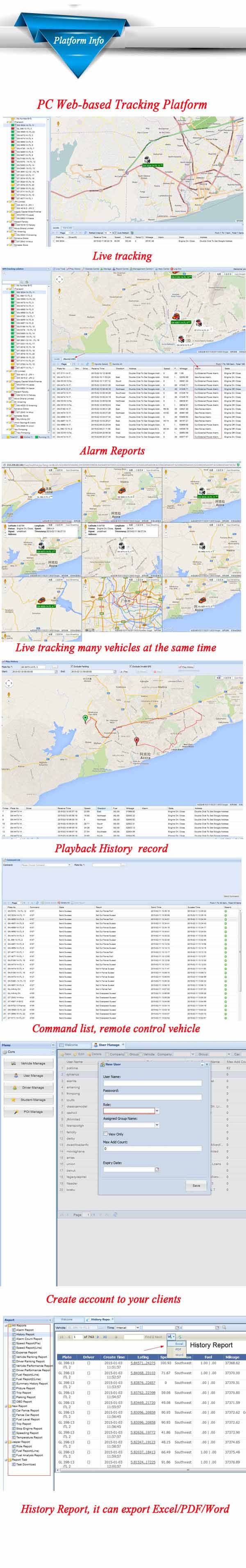

Topshine free tracking software, no any monthly or yearly chargeTracking platform site: www.track-car.com
Username: hongkong
Password: 123Advanced function of GPRS01 tracking platform* Provide API
* More stable & easy expansion
* Flexible configuration menus and assign power for certain user
* Icon can show 8 direction
* Events reminder ( maintainance alert, expired alert, odometer alert etc )
* Cell phones scan the QR code to download APP
* Directly manage Nevigate, Live Track and take photos
* Show GEO-fence and POI in the main track
* Flashing icon to show alarm status
* Provide customer demand for customization
What can we do for you* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.Payment & ShipmentPayment Term: PayPal /western union / T/T / Moneygram
Shipping Term: DHL / Fedex / TNT / ARAMEX/ EMX
Lead time: Samples within 1 days of delivery. bulk production within 5-7days of delivery.
FAQQ: Why the tracker can't be switched on?A: 1. Check if wiring is correct or not.
2. Charge the tracker.Q: No response to SMS commandA: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.Q: Why there is a "Last" appearing in a positon report SMS?A: There is no GPS signal. Please take the tracker to somewhere open area.Q: How to use tracking platform?A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W,010,ID
(2) Set APN: W,011,APN name
(3) Set IP and Port: W,012,210.209.68,9600
(4) Enable GPRS: W,013,1
(5) Set report time interval: W,0.14,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle ManageQ: How to connect Relay to cut off engine?A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.If you want to know more GPS tracker, please click " Product catalogue"
If you have any question, please feel free to contact us.
