| Prod Model: |
W21 |
| Sensor Type: |
Ceramic Capacitive Pressure Sensor |
| Output Signal: |
0.5-4.5V, I2c, 4~20mA, Spi |
| Power Supply: |
3~5.5V |
| Accuracy: |
0.2%Fs, 0.5%Fs, 1%Fs |
| Application: |
Pressure Measurement of Gas, Vapor or Liquid in Va |
| Overload: |
Max 100 Times of Measuring Pressure |
| Pressure Range: |
0~10MPa |
| Pressure Type: |
Gp, Ap, Sealing Pressure |
| Component: |
Ceramic Capacitive Pressure Sensor |
| Output Signal Type: |
I2c, 0.5~4.5V, Spi, 4~20mA |
| Measuring Medium: |
Air, Liquid and Steam |
Product Description

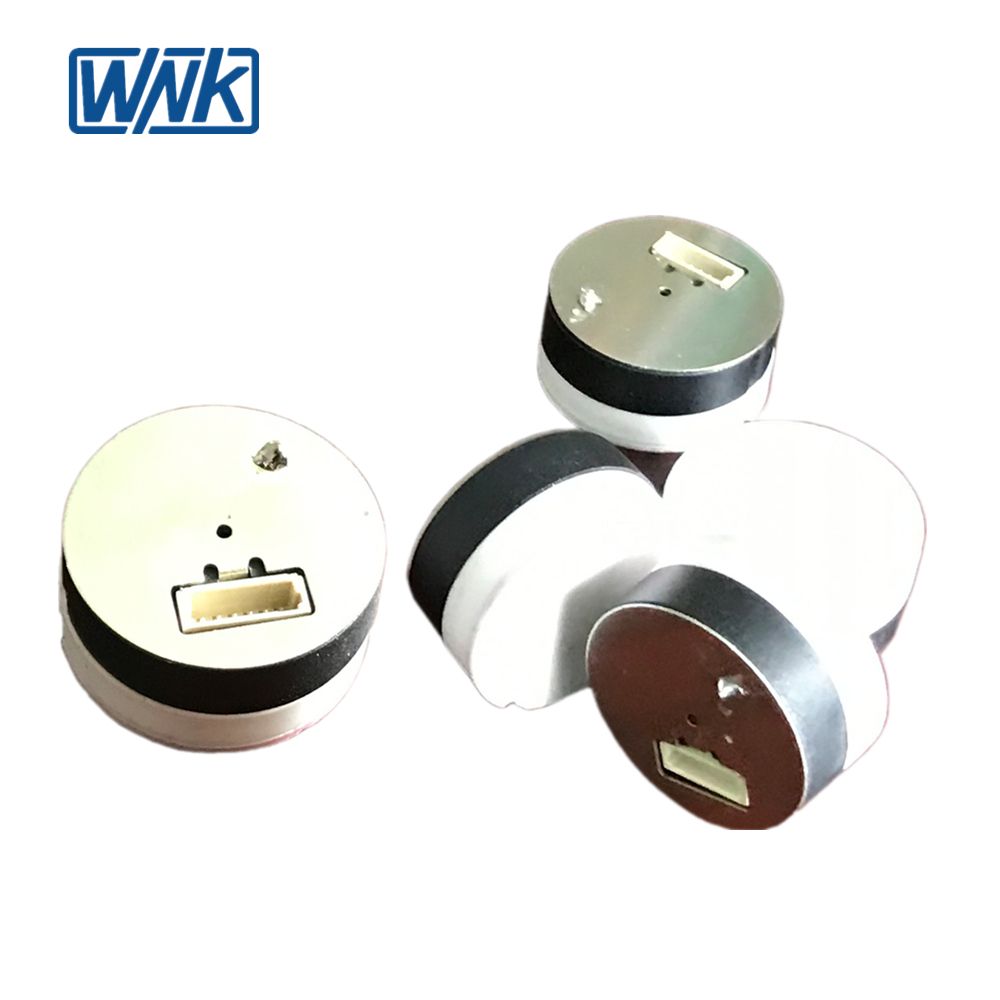

W21 Ceramic Capacitive Pressure Sensor W21 series is dry ceramic capacitive pressure sensor made by special technology processed ceramic. Ceramic is a well-known material with long-range elasticity, anti-corrosion, wear & shock resistance and anti-vibration. Thermal stability of the ceramic makes its operating temperature range up to -40 to 135 ºC with high accuracy and high stability in measurement. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function, such as: ± 10kPa, ± 1MPa and so on. With high output and wide range, W21 ceramic capacitive sensor is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Quick information - Ceramic capacitive pressure sensor1.Dry ceramic capacitive pressure sensor;
2.Robust ceramic capacitive sensitive diaphragm;
3.Excellent performance in corrosion and abrasion application;
4.Suitable for pollution and corrosive environment;
5.Flat large round diaphragm, easy installation;
6.Superb positive and negative gauge pressure function;
7.Highest overload up to 100 times of pressure range;
8.Rapid response, no hysteresis;
9.Wide operating temperature range -40~135ºC;
10.Sensor specific signal conditioning;
11.0.5 ... 4.5V & I²C available, SPI & 4~20mA optional;

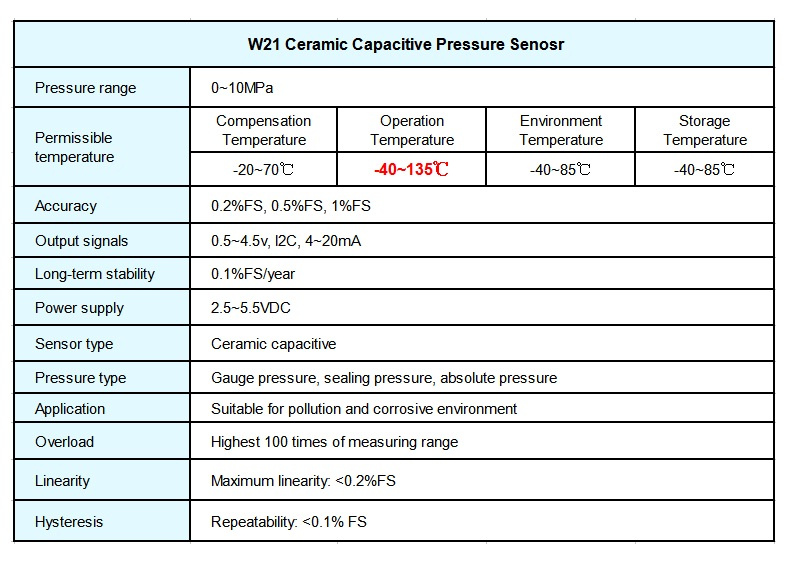

Technical information:
Application:
1. Pressure measurement of gas, vapor or liquid in various areas;
2. Liquid level, volume or mass measurement;

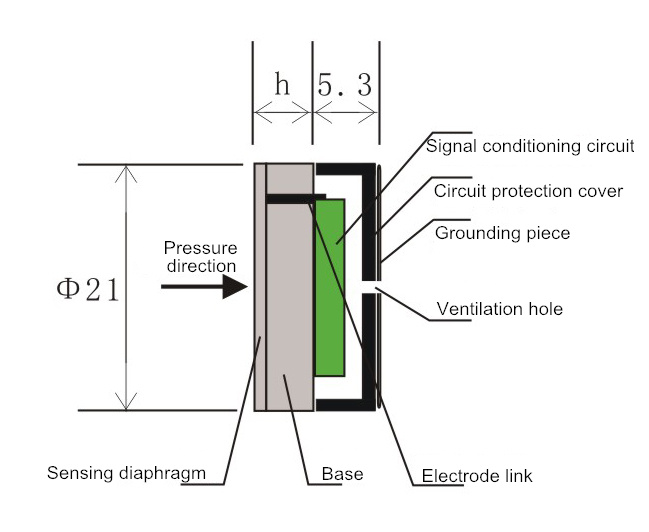

3. Integrated in a variety of user-defined solutions.Appearance & Dimensions:
Our Company Info:

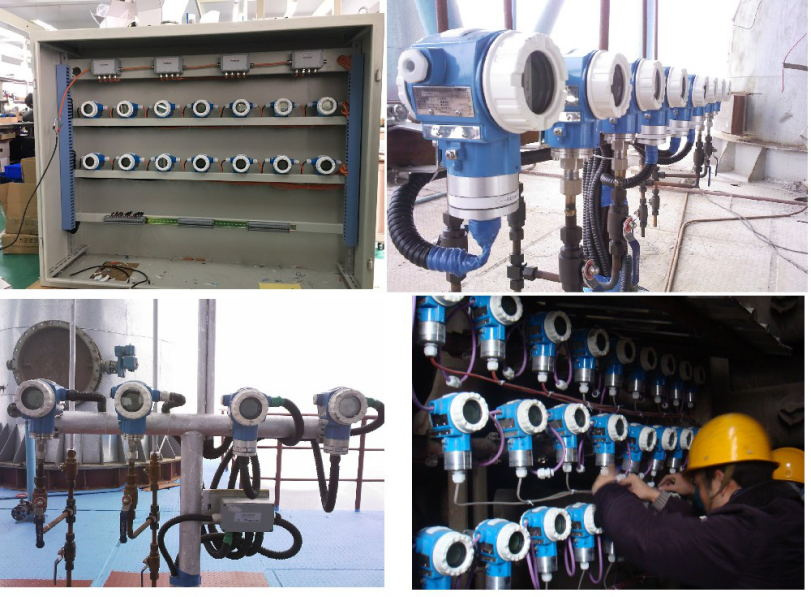

Project Photoes:
Certificates:
FAQ:Q: Are you manufacturer or trading company?A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price. Q: What's your quality control system?A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed. Q: Is there MOQ with your product?A: We have no MOQ limits, 1pc for testing purpose is acceptable. Q: Can we print our logo on the products? Do you provide customized products?A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed. Q: What is the warranty of your products? And after-sales service?A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available. Q: What is lead time of your product?A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
