Smart Drones RoHS Fr4 94V0 Bare PCB Board
| Price: |
US $ 1.86-2.3/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Production Process: |
Subtractive Process |
Product Description
Production Display:

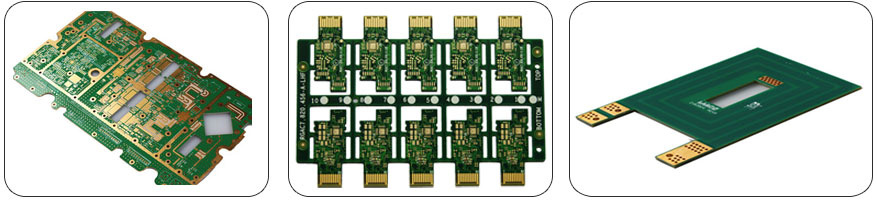

Bare PCB Board Manufacturing Capabilities
Our bare PCB board manufacturing capabilities can meet almost 95% demand of custom requirements and actually we concentrated on this field for decades. So plant facilities have been advanced to high level and your intelligent manufacturing could be well handled here.| Total Pad Size | Standard | Advanced |
| Capture Pad | Drill + 0.008 | Drill + 0.006 |
| Landing Pad | Drill + 0.008 | Drill + 0.006 |
| BC Mechanical Drill (Type III) | 0.008 | 0.006 |
| Laser Drill Size | 0.004-0.010 | 0.0025 |
| Material Thickness | 0.0035 | 0.0025 |
| Stacked Via | Yes | Yes |
| Type I Capabilities single & Double Deep | Yes | Yes |
| Type II Capabilities Buried Vias with Microvias | Yes | Yes |
| Type III Capabilities | Yes | Yes |
| Copper Filled Microvia | Yes | Yes |
| Smallest Copper Filled Microvia | 0.004 | 0.0025 |
| Copper Filled Microvia Aspect Ratio | 0.75:1 | 1:01 |
| Smallest Laser Microvia Hole Size | 0.004 | 0.0025 |
| Laser Via Aspect Ratio (Depth:Diameter) | 0.75:1 | c |
PCB Assembly Capabilities

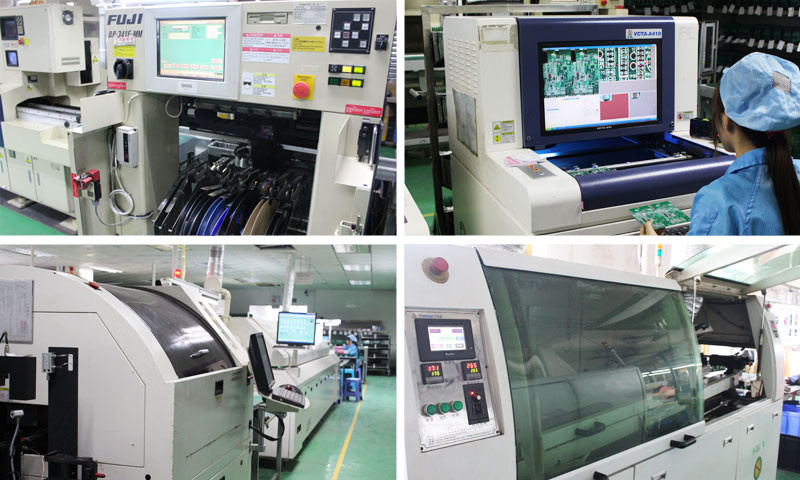

If bare PCB board is bone, PCB assembly is flesh and blood. PCB assembly highly determines the total quality of PCBA funtions. Our sophisticated engineers excute SOPs and weekly training to ensure the manufacturing processes. Advanced SMT lines can catch up with your demand of high-precision soldering, such as 0201, 0.25mm BGAs, PQFP, PLCC, SOP, SOJ etc. Now we have 6 SMT assembly lines and 4 DIP lines.| Turn Times | Selected Volume | Selected Solder Types |
| Same day through four weeks turns | No minimum order quantity | Leaded |
| Scheduled deliveries | Engineering prototypes | Lead-free/RoHS compliant |
| | Low cost first article builds | No-clean process available |
| Parts Procurement | Selected Stencils | Selected Ball Grid Arrays (BGA) |
| Turnkey | Laser cut stainless steel | As small as .5mm pitch |
| Kitted/Consigned | Nano-coating available | All BGA placements are x-ray inspected |
| Partial Turnkey | | |
| Assembly Types | Selected Component Types | Selected Other Capabilities |
| Surface Mount (SMT) | As small as 0402 package | Pitch components as small as 15 mil |
| Thru-hole | As small as 0201 with design review | Repair/Rework services |
| Mixed Technology (SMT/Thru-hole) | | Mechanical Assembly |
| Single or double sided placement | | Box Build/Electromechanical Assembly |
| | | Sub-assemblies |

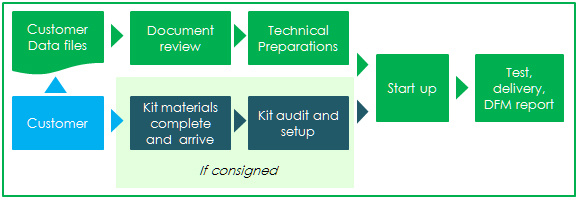

Bare PCB Board Manufacturing Process
About Us
NOD Electronics strives to be your PCB manufacturer, including bare PCB board design, fabrication and PCB assembly (PCBA). Our responsive team will offer you PCB assembly services with a range of process control, refined and strict PCB assembly workflow and quality commitment. Generally, customer with small-medium batch order and high quality requirements would like to choose us as reliable option, because we treasure long term interest and win by our outstanding services.
Your precious demand of bare PCB board demand will be perfactly completed by our advanced production line and responsible work team.
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
