| Prod Model: |
OCT900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
73mm X 86mm X 30mm |
| Interface: |
5 Input and 5 Output |
| Power Supply: |
+6V - +24V / 1.5A |
| Operation Temp: |
-20deg to +55deg |
| Frequency: |
GSM850/900/1800/1900MHz |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| GPS Sensitivity: |
-158db |
| Channels: |
20 Channel All-in-View Tracking |
| LED: |
2 LED Light to Show Working Status. |
| Warm Start: |
38 Sec., Average |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Oct900 |
| Screen Size: |
Without Screen |
| Brand: |
Oneralarm |
| Certification: |
Ce, FCC, RoHS |
Product Description

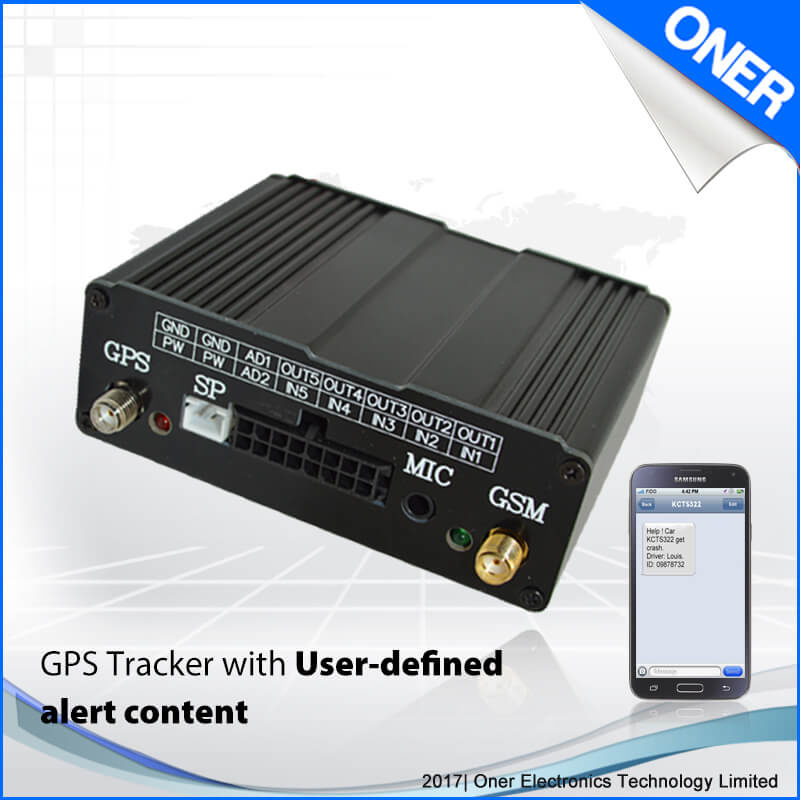

Mixed Application GPS Vehicle Tracker with Stop Car Remotely
Introduce:
OCT900 is car GPS Tracker with new hardware, designed for multiple fleet management applications. The biggest difference with common GPS tracker is 3 USB com port and undefined output control. By 3 USB com ports, it makes you ability to connect different sensors or components together for special feature. For example, Need driver management and report exported, you can connect RFID and Bluetooth.
And 5 undefined outputs allows you to make a control to the car as you want. You can custom them to control car door, engine, trunk, siren,etc.
Oner car GPS tracker OCT900 is highly recommended to use in fleet and logistic company for different applications.
Core Features Of Car GPS Tracker:
1. Support 3 USB COM ports for multiple sensors and components
More 2 USB COM ports than common GPS tracker makes OCT900 be able to work for more applications. It is able to connect different sensors or components. Include: temperature sensor, RFID controller, Bluetooth, wifi,etc. This will be a grate help for fleet companies which need nixed features for their business.
2. Undefined Outputs, make easy car control be available
Support 5 outputs controls without definition . User can custom them to control the device or components in the car, not just stop the car or lock the car door.
Features:
GPS/GPRS live tracking
Living location report
LBS Tracking
Track by time/ distance interval
Google map link inquiry
Engine cut remotely
SOS emergency alert
Geo-fence alert
Movement alert
Speeding alert
External power cut alert
Door open alert
Engine on alert
Shaking alert
GPS antenna abnormal alert
Trunk open alert
Connect with car original alarm
Arm/Disarm by remote, SMS
Car door lock/unlock by remotes, SMS
Auto lock car door when car starts
Vehicle info setting and inquiry
Vehicle maintenance reminding
Speed limitation
Fuel monitoring (option)
Working time setting
Mileage calculation & setting
Miss call reminding for alarm
Buzzer for alerts, arm/disarm
Engine detecting and report
Car door status detecting
Trunk status detecting
SIM balance inquiry
Firmware update OTA
Data storing and exporting (option, SD card)
Voice monitoring,3 listening No.s (option,MIC)
2 ways communication (Option, speaker)
3 Admin No.s setting for management
Driver Identify (option)
Car control by RFID (Option)
Dual photograph mode ( MMS & online, option)
Take photo by time interval (option)
Take photo when alarm active (option)
Arm status indication
Technicial Specification
| Power supply | +9V - +35V / 1.5A |
| Backup Battery | 550mAh |
| Dimension | 60mmx85mmx30mm |
| Weight | 145g |
| Operating temperature | -20° to 55° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position | Accuracy 10 m, 2D RMS |
| Velocity | Accuracy 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | <1 sec., average |
| Warm start | <36 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 m (60,000 feet) max. |
| Velocity Limit | 515 m/second (1000 knots) max. |
| Interface | 5 inputs, 5 outputs, 2 AD, 3 USB ports |
| LED | 2 LED lights to show working status |
GPS tracking software
1) Free APP for GPS Tracking, track and control all the fleet vehicles at the same time
2) Web-based GPS tracking platform.
Packing Contents(Standard)
1 GPS Vehicle Tracker
2 Relay
3 GSM Antenna
4 GPS Antenna
5 Power I/O Cable
6 Remotes
7 Car signal light controller
