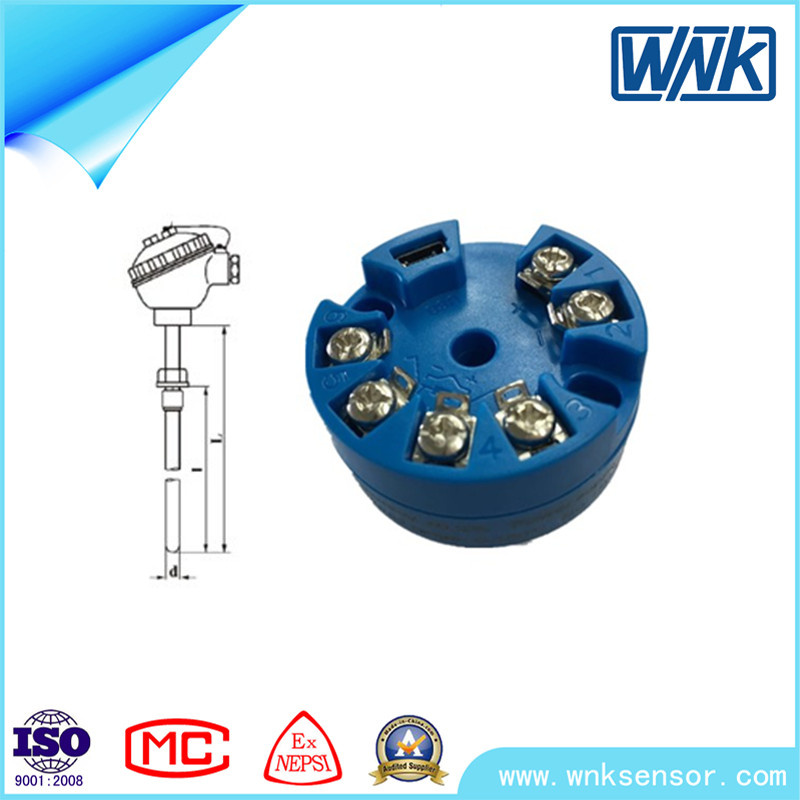

Smart High Accuracy Excellent Isolation Temperature Transmitter Head
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
WNK65 |
| Output Signal: |
4~20m, Hart |
| Stability: |
<0.2/Year |
| Temperature Drift: |
0.05% |
| Measuring Medium: |
Liquid, Gas, Steam |
| Display Type: |
No Display |
Product Description
Smart High Accuracy Excellent Isolation Temperature Transmitter HeadWNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and -100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V. Technical data| Measuring media | liquid, gas and steam |
| Measuring range | -270~800 ºC (PT100 thermal resistor) |
| 0~1300ºC, (Thermocouple K) |
| Input | Thermocouple, RTD, MV, Resistive sensor |
| Output signal | 4~20mA/Hart |
| Display | LCD |
| Power supply range | 9~45V (9~24V, Ex) |
| Digital Accuracy | ±0.01ºC, PT100 input |
| Internal cold end compensation error | <0.25ºC±0.1%/10ºC |
| Temperature drift | ±0.05%/10ºCfull scale range |
| 0.1% between-10°C to 60°C |
| Effect of power supply on range | <0.005%/V full-scale range |
| Long term drift | <0.1/year |
| Ambient temperature | Ambient temperature | Storage temperature |
| T4 | Safe operation(T6) |
| -40...85ºC | -40...60ºC | -40...95ºC |
| Relative humidity | ≤98%, condensation allowed |
| Electromagnetic compatibility | Accordance with EN 61 326 |
Main Parameteres- Supply power:DC9V~32V;
- Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA analog output;
- Communicator or PC configuration and debugging software can do remote management;
- Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature value and forbide code end compensation;
- Internal code end compensation accuracy: ±0.5ºC
- Damp: 0-64 seconds adjustable;
- Data refreshing frequency: 4times/second;
- Stability: ±0.2%/year;
- Woring ambient temperature range: -40ºC~+85ºC;
- Dimensions: φ44mm;
- Mounting hole distance: 33mm;
- Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
- Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ

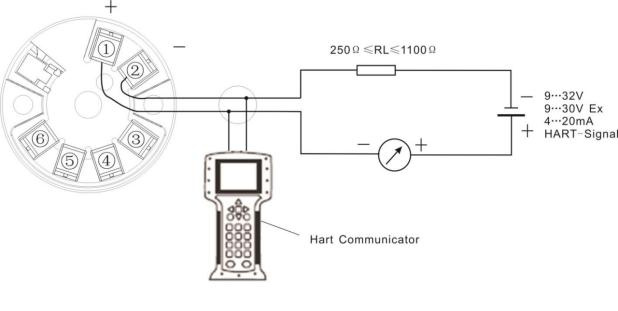

Wiring ports diagram
Why Choose us?
1. We are professional manufacturer with own R&D and sales team, with more than 13 years producing experience in transmitters & sensors.

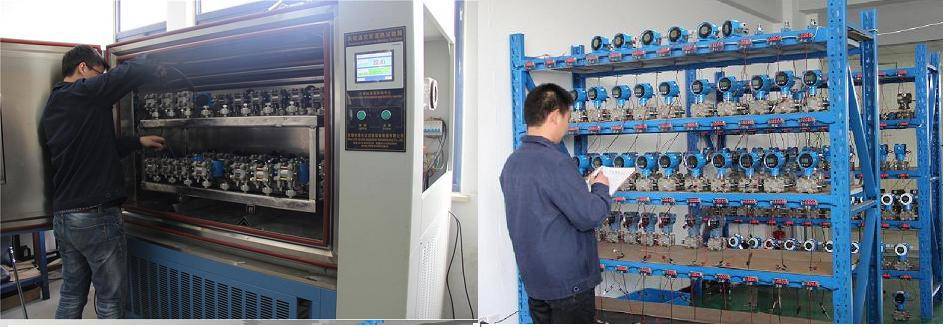

2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed.
Delivery
3~10 days after order confirmed
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
