| Prod Model: |
real time tracking OBD tracker gps306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Functions: |
Diagnostic/Maintenance/Mileage/Fuel etc |
| Weight: |
60g |
| Network: |
GSM/GPRS |
| Band: |
850/900/1800/1900MHz |
| GPS Sensitivity: |
-165dBm |
| GPS Accuracy: |
5meters |
| Backup Battery: |
Chargeable 3.7V 200mAh Li-Battery |
| Applying Directions: |
12-24V Cars, Vehicles, Fleet Management |
| OBD Data From ECU: |
Diagnostic Engine Status, Mileage, Fuel |
| GPRS Platform With Andorid Mobile Apps: |
Www.Gpstrackerxy.COM |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No |
| Operating Principle: |
GPS Position and GSM Trasmit Data |
| Port Number: |
20 |
| Model: |
GPS306 |
| Brand: |
Baanool |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

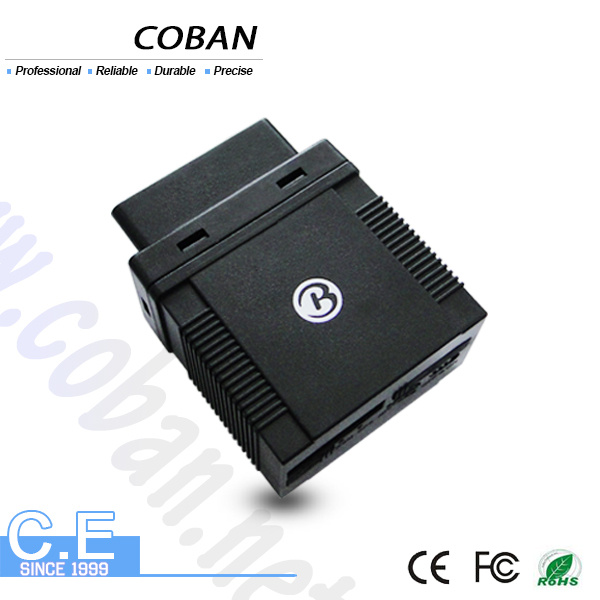

Smart Remote Diagnosis OBD IIGPS Tracker 306 with Mileage ReportModel: GPS306
How does the GPS Tracker work?

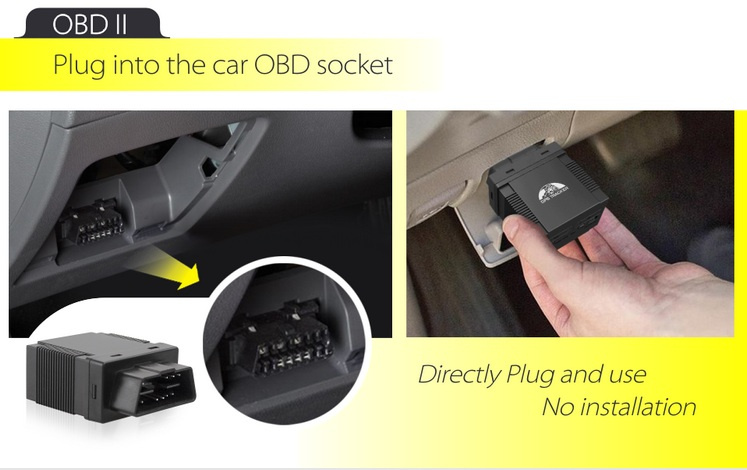

GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
Here is a small list of what it can do for you and your vehicle:1. Vehicle OBD II tracker (9-40V)
2. Location based service(LBS) + GPS double real time tracking solution
Monitor
3. SOS panic button
4. Geofence, movement, overspeed alarms. Low battery, ext. Power off alarm.
5.
Alarms under ARM: Shock/ACC alarms.6.
Request for OBD data by SMS:Fuel measurement
Fuel consumption
Mileage
Speed
Engine status
Diagnostic Trouble Codes, etc
7. Troube and maintenance notification
8. Multi power-saving mode:
Sleep by time / shock sensor
Deep sleep
Awake at specific time
9. Save GPRS traffic mode
10. Built-in memory for 16, 000 positions
11. Built-in 200 mA polymer battery
12. SMS tracking on cell phone with google map link
13. Absolute street address by SMS
14. Web server, free PC tracking soft, Mobile phone APP
Applying directions:12-24V cars, vehicles, trucks, fleet management
Specification
Content |
Specification |
DIM |
64.5×50×27mm |
Weight |
60g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-165dBm |
GPS Accuracy |
5m |
GPS Start Time |
Cold status 30s
Warm status 11s
Hot status 1s |
Backup Battery |
Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +70°C |
Humidity |
5%--95% non-condensing |
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 5-7 days after the receipt of payment. Please contact our sales to make sure the current inventory.
