| Prod Model: |
PT-DP002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Liquid,Gas and Steam |
| Output: |
Analog:4~20mA Digital:4~20mA/Hart |
| Protection Grade: |
IP65 |
Product Description
Differential Pressure Transmitter for PT-DP002
The differential pressure transmitter used mature ahd reliable capacitance sensor,combined with advanced micro-procesing technology and digital capacitance measurement technology.
Feature
1) good reliability,long-term stability,high accuarcy up to 0.1%
2) two-wire system 4~20mADC with smart HART protocol
3) good exposion-proof structure,automatically environmental temperature compensatuon

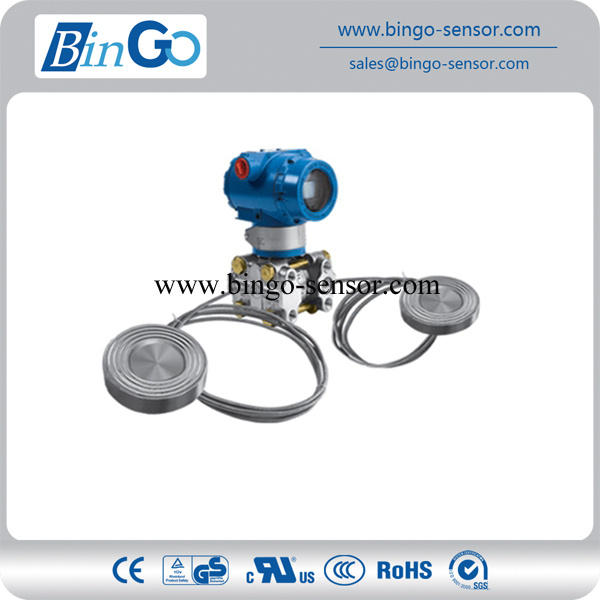

Product Show
Specification
Smart remote differential pressure transmitter
| Model | PT-DP002 |
| Medium | liquid,gas or steam. |
| Pressure range | 6.2-37.4kpa 31-180kpa
120-680kpa 350-2060kpa
1170-6890kpa |
| Output | Analog output: 4~20mADC
Digital output: 4~20mADC/HART |
| Power supply | 12~36VDC |
| Accuracy | 0.1%FS.,0.2%F.S. |
| Working temperature | -40~149ºC (silicone oil) 15~315ºC (high temp silicone oil) -45~205ºC(fluorocarbon oil) -18~177ºC(inert oil) |
| Connector | PFW flange, RTW thread,
PFW flat type, SCW clamp,
EFW plug-in |
| Display | LCD display |
| Protection grade | IP65 |
| Explosion-proof | Ex ia IIC T4,Ex d IIB T5 |
Other Type we can supply
About US
Our Advantages and why choose us:
Fast delivery & Cheap freight cost and best service team
1)Delivery in time,delivery time is 7 days for sample and 15 working days for bulk order
2)Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST
3)We have ourself forward and we have big discount from forward(long contract)
4) We have professional sales team for you, Well-trained and experienced staffs to answer all your inquires
5) After-sale tracking service for all of our clients
the diversity of payment
L/C, D/A,T/T, Paypal , Western Union, MoneyGram,bank transfer
Oem Accepted:OEM is available; small quantities, mixed bulk orders are also welcome;
Good quality and we passed CE&UL&RoSH&REACH certification
1)We have strong production capacity and strict quality control system.good reputation in the market all over the world.our long time customers always said our quality is very good.
2)Within the warranty period, we will bear all the quality problem of our products
3)Beyond the warranty period, we will despatch the replacement parts to help fix the products, but the parts will be charged;
Feedback to our about quality,Service,Market Feedback & Suggestion.
And we can do better.
