SMC Three-Phase Electric Meter Box
| Price: |
US $ 5-13.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
HiXT-BX01D09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting Type: |
Wall-Mounted, Pole-Mounted |
| Phase: |
Three-Phase |
| Meter Type: |
Mechanical or Electronic Meter |
| Type: |
Distribution Metering Box |
| Structure: |
Fixed Board |
| Operation Voltage: |
Medium-Low Voltage |
| Shell Material: |
SMC |
| Shell Protection Grade: |
IP44 |
| Brand: |
Hifuture |
Product Description
SMC Three-phase Electric Meter BoxProduct overview:
1. Setting opearation window is available for end user, management control classified.
2. Optional installation as well, pole and embeding mounting.
3. Inner built-in lock is free from mechanical force and atrocious dinate.
4. Mutil-optional combined mounting solutions, avaiable for main ciruit inlet control cabinet for
convenience metering management.
The Parameter of the Material Ability:| Index name | Unit | Index data | Test standard |
| Density | g/ cm³ | 1.75-1.95 | GB/T1033 |
| Hydroscopic property | mg | <20 | JB 3961-1 |
| Heat deflection temperature | ºC | 200-240 | JB 3961-A |
| Simple Beam impulse strength | KJ/ | 60-90 | GB 1043 |
| Bending intensity | Mpa | 150-180 | JB 3961-1 |
| Insulation resistance(normal) | Ω | ≥1.0x10 ¹³ | GB 10064 |
| Insulated resistance(immersed for 24hs) | Ω | ≥1.0x10 ¹² | GB 10064 |
| Flam retardant | Grade | FV0 | GB11020 |
| Gas toxicity | Grade | ZA | GA 132-1996 |
| Smoke density | Grade | 15 | GB/T 8627-1999 |
Material Traits:
1. Excellent Insulation
SMC has high insulation resistance and AC dielectric intension, good dielectric ability under high AC, no reflection,
no block of microwave radiation.
2. Chemical corrosion resisting and environment aging
Resistance corrosion of low concentration acid, alkali, salt, resisting much kinds of oils and organic solvent,
sea water and so on, and resisting ultraviolet radiation and environment aging.
3. Out temperature resistance
Heat deflection temperature over 200ºC,and low temperature resistant. The material can keep excellent
mechanical features in a wide range of temperature (40ºC-160ºC).
4. Excellent anti-collision
Three dimensional net structure inside the material and the increasing function of the longer fiber, resulting in
excellent collision resistance and insensitive to the gap, and excellent machining ability (drilling and cutting).
5. Flame retards and smoke density
Flame retards: FV0. Smoke density class: 15.The gas toxicity class: ZA1.
6. Light weight and High-strength
Specific gravity between 1.75g/cm³and 1.95g/m³, high intension and modulus.Products Show:
Shenzhen Hifuture Electric Co., Ltd. is committed to professional power distribution grid equipment and integrated solutions. Hifuture Electric comprises of three divisions: Electrical Insulating Material Division, MV & LV Equipment Division, and New Energy Division.
The Electrical Insulating Material Division, with its new macromolecule electrical insulation material technology, is specialized in silicone rubber material, APG products, and SMC material.
The division has developed a wide range of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.
Hifuture Electric is the earliest manufacturer in China of silicone rubber cable accessories. As early as in 2004, its Cable Connectors were already certified by KEMA. Today, Hifuture Electric is partner of the world's giants in the electric industry.

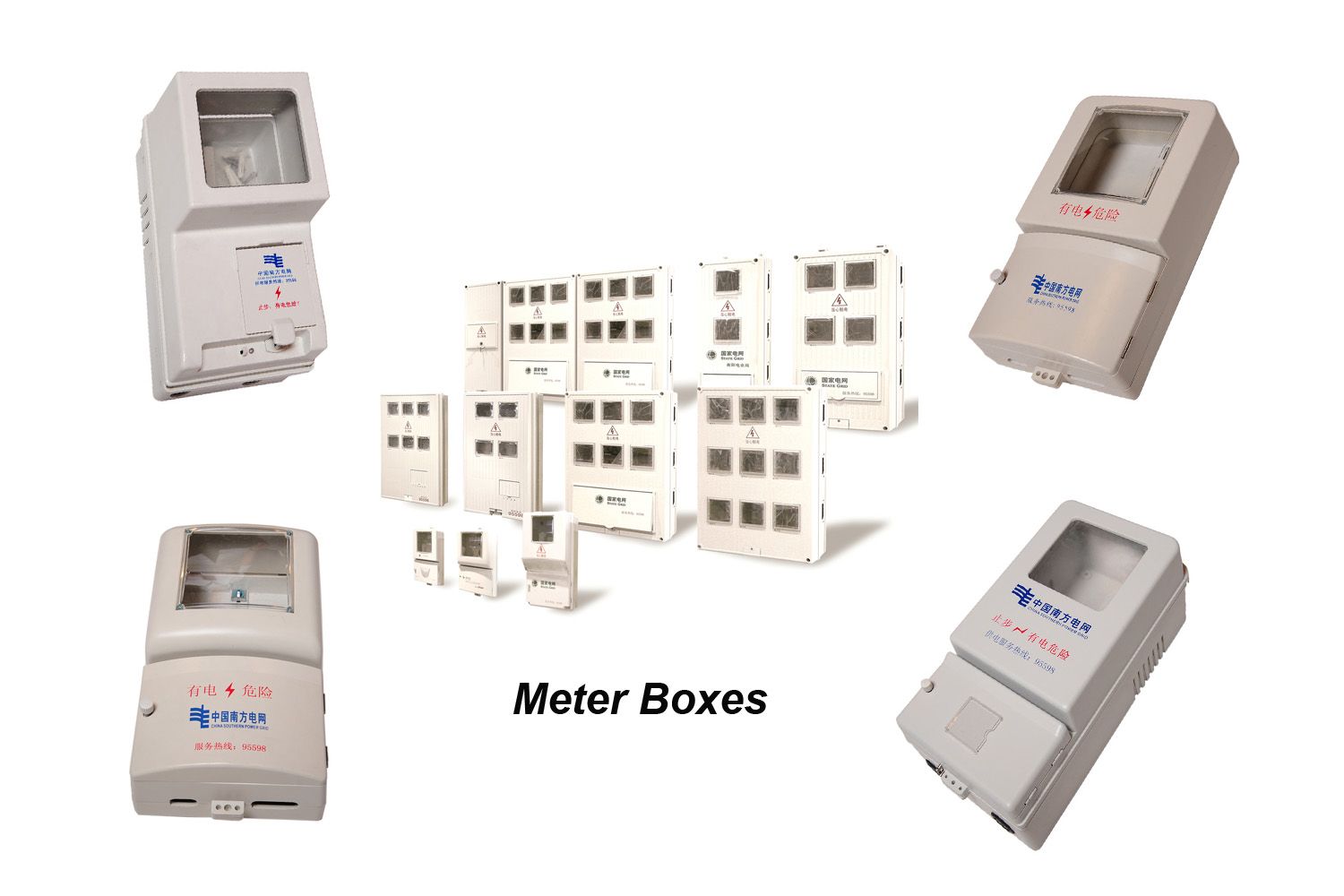

Its SMC products include Meter Box, Power Distribution Cabinet, modular combination type cabinets for Switchgear, Ring Main Unit, Compact Substation, Telecom cabinet, etc. Hifuture has its own mould processing center and is able to quickly design and develop new moulds for new products tailored to your requirements.
The MV & LV Equipment Division is mainly engaged in power Distribution Grid Equipment, including high-quality SF6 Gas-insulated Ring Main Unit, Low-voltage Switchgear, Power Distribution Switch/Control board, Cable Branching/Junction Cabinet, etc.
Hifuture Electric has been an approved supplier to the China State Grid and China Southern Power Grid.
Hifuture Solid Insulation Tubing Busbar is also manufactured in this division with TCE(Triple Co-Extrusion) technology. Hifuture is the pioneer in adopting TCE technology on Tubing Busbar. It has developed its own manufacturing equipment and is proud to have participated in setting the product standards.
The New Energy Division is a new business unit of Hifuture Electric. It started with Electric Vehicle Charging Equipment and is also ambitiously expanding into other new energy like PV Power. With its rich experience in Power Distribution Grid projects, Hifuture Electric provides customers with complete EPC service from MV/LV distribution up to the EV charging station. It has also developed its independent operating platform. Currently, it runs over 50 EV Charging stations on its platform system.
Hifuture Electric has devoted to overseas market since 2004. Its products and solutions have served over 500 cities and towns in China as well as some significant international events like the Beijing 2008 Olympics, Asian Games, World Expo, etc.
Since its establishment in 1999, Hifuture Electric has gained 95 national patents covering different product categories and was awarded "Shenzhen Hi-tech Enterprise" in 2001 and "National Hi-Tech Enterprise" in 2008.
More inforamtion about our company and products, please follow our Linkedin and Face book:
Linkedin: https://www.linkedin.com/company/13206393/
Facebook: https://www.facebook.com/hifutureca/
