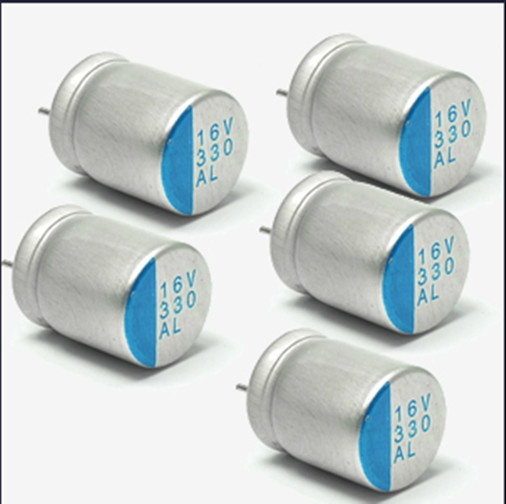

SMD 16V Aluminum Electrolytic Capacitor

SMD 16V Aluminum Electrolytic Capacitor
Price: US $ 0.001/Piece
Trade Terms: FOB,EXW
Min Order: 10000/Piece
Pay Type: T/T,Western Union
Prod Model: TMCE31
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Working Voltage: 4 to 100V DC
Type: Aluminum Electrolytic Capacitor
Application: General Purpose
Package Type: Surface Mount
Capacitance: 0.1-1500UF
Tuning: Electrolytic

Product Description

Specifications

Price
Product Features
Prompt Delivery
Quality Approvals
Service

Capacitor

Standard SMD Aluminum Electrolytic Capacitor
Key Specifications/Special Features:

Operating temperature range: -40 to +85 degrees Celsius
Rated working voltage: 4 to 100V DC
Nominal capacitance range: 0.1 tp 1, 500uF
Capacitance tolerance (120Hz 20 degrees Celsius): +-20%(M)
Leakage current: <= 0.01CRUR or 3uA, whichever is greater (after two minutes application
Of rated voltage)
CR: Nominal capacitance (uF) and UR: Rated voltage (V)
Dissipation factor (120Hz 20 degrees Celsius):
UR (V) 4, 6.3, 10, 16, 25, 35, 50, 63 and 100
Tand <= O8, 0.35, 0.26, 0.20, 0.16, 0.14, 0.12, 0.12, 0.12 and 0.10
>= O8, 0.35, 0.28, 0.24, 0.20, 0.16, 0.14, 0.12, 0.12 and 0.10
Load life: After 2, 000 hours application of WV at +85 degrees Celsius
The capacitor shall meet the following limits
Capacitance change: <=+-20% of initial value (4V: Within +-25%)
Dissipation factor: <= 200% of initial specified value
Leakage current: <= initial specified value
Shelf life: After storage for 1, 000 hours at +85 degrees Celsius
Dissipation factor: Not more than the initial specified value
Leakage current: Not more than the initial specified value
Capacitance change: Within +-10% of the initial value

Product Certifications:

Certificate Standard: SGS
Certificate Number: GZSCR041248032/LP
Issue Date: 24-Dec-2004
Certification Agent: SGS-CSTC Ltd

Certificate Standard: UL
Certificate Number: E166700/03CA23659
Issue Date: 15-Sep-2003
Certification Agent: Underwriters Laboratories Inc.

Certificate Standard: VDE
Certificate Number: 40012049
Issue Date: 27-Oct-2004
Certification Agent: VDE Testing and Certification Institute

Certificate Standard: RoHS

Certificate Number: CQC06130017473
Issue Date: 08-Sep-2006
Expiry Date: 07-Sep-2007
Certification Agent: China Quality Certification Centre

Packing: Tape and reel
DescriptionSize(mm)U/PMOQL/T
SMD E-CAP1000uF    6.3V     10*10.5mm$0.069500012 work days
SMD E-CAP220uF      10V       6.3*7.7$0.025500012 work days
SMD E-CAP470uF      10V       8*10.5$0.048500012 work days
SMD E-CAP1000uF    10V     10*10.5$0.069500012 work days
SMD E-CAP220uF     16V        6.3*7.7$0.025500012 work days
SMD E-CAP22uF        25V         5*5.4$0.017500012 work days
SMD E-CAP470uF      25V        10*10.5$0.069500012 work days
SMD E-CAP220uF      35V       10*10.5$0.069500012 work days
SMD E-CAP220uF      50V        10*10.5$0.069500012 work days


 TMCE24-SMD Aluminum Electrolytic CapacitorDescriptionQtyMFGTOPMAY U/P($)
40SURFACE MOUNT ALUMINUM EL-CAPACITORSZV Series 10X10.5mm,105 10V/1000uF 40,000 Topmay0.0725
41SURFACE MOUNT ALUMINUM EL-CAPACITORSEV Series 6.3X7.7mm,105 10V/220uF 10,000 Topmay0.0265
42SURFACE MOUNT ALUMINUM EL-CAPACITORSEV Series 6.3X5.5mm,105 10V/100uF 20,000 Topmay0.0216
43SURFACE MOUNT ALUMINUM EL-CAPACITORSEV Series 4X5.5mm,105     50V/1uF 10,000 Topmay0.0167
3SURFACE MOUNT ALUMINUM EL-CAPACITORSEV Series 6.3X5.5mm,105   16V/100uF 20,000 Topmay0.0216


Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.

Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.

Presently, Topmay products mainly include the following products:

The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.

Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.

Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
