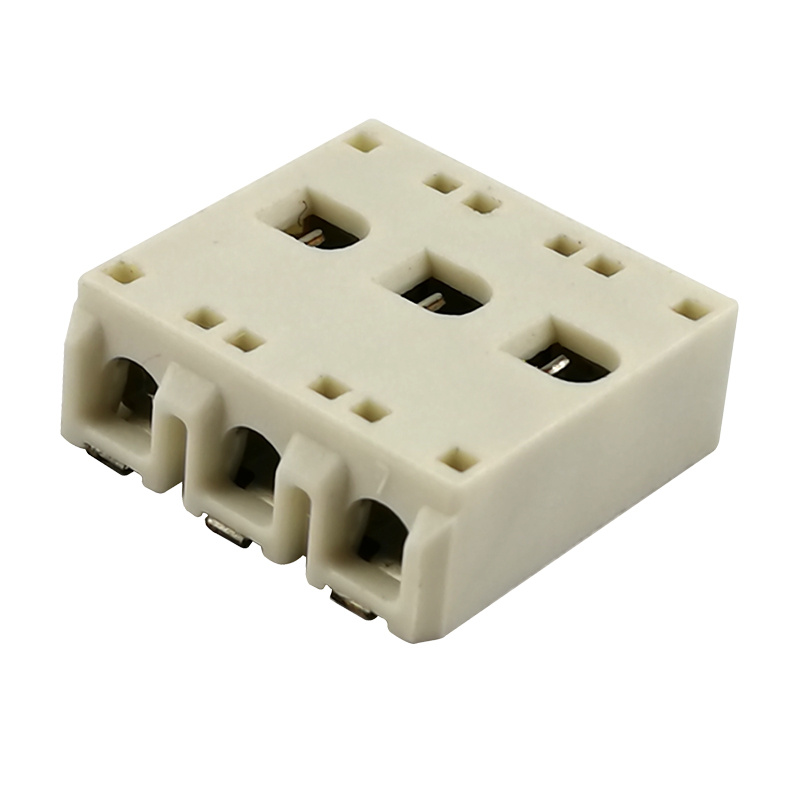

SMD 0.75sqmm Wire Fast Connector for LED SMT Connector

SMD 0.75sqmm Wire Fast Connector for LED SMT Connector
Price: US $ 0.15/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: SMT 0.75-XP
Type: Single Hole Terminals
Material: Copper
Application: Transmission of Electrical Signals
Character: Full-Insulated
Certification: Ce, TUV
Brand: Utl

Product Description




UTL- SMD type Wire Fast Connectors (Push-in) for LED rigid strip

Product Details:
Features:

Newly launched SMD type wire fast connectors soldered on PCB for LED rigid/ hard strip. By directly Push-in,wires or strips can be easily connected. The housing is made of PPA whcih is UL94 V0 lever, which allows it undertake up to 260ºC in reflow oven/ soldering. Contact is Phosphor Bronze plated with Tin for perfect electrical conductivity.

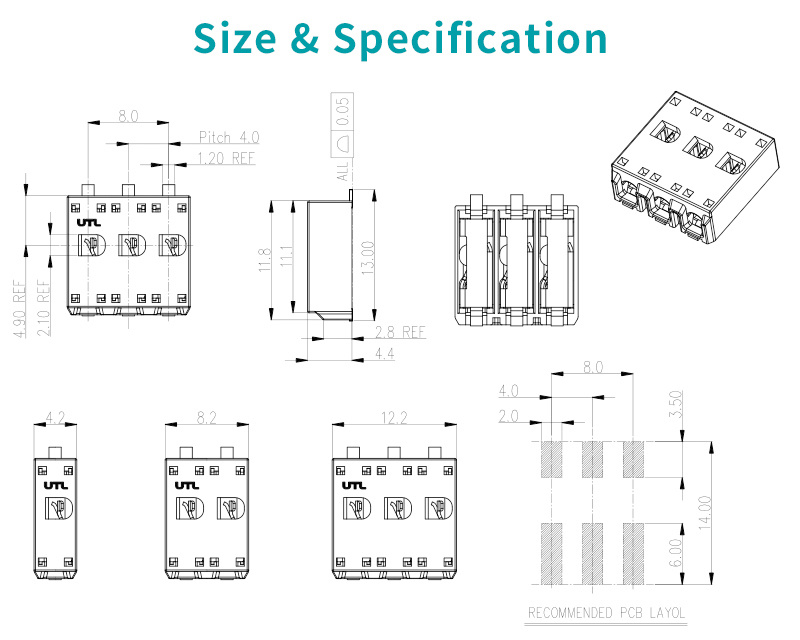

The dimension and soldering pad is similar to 2060 series, therefore, it is ideal to replace but in only 1/3 cost.

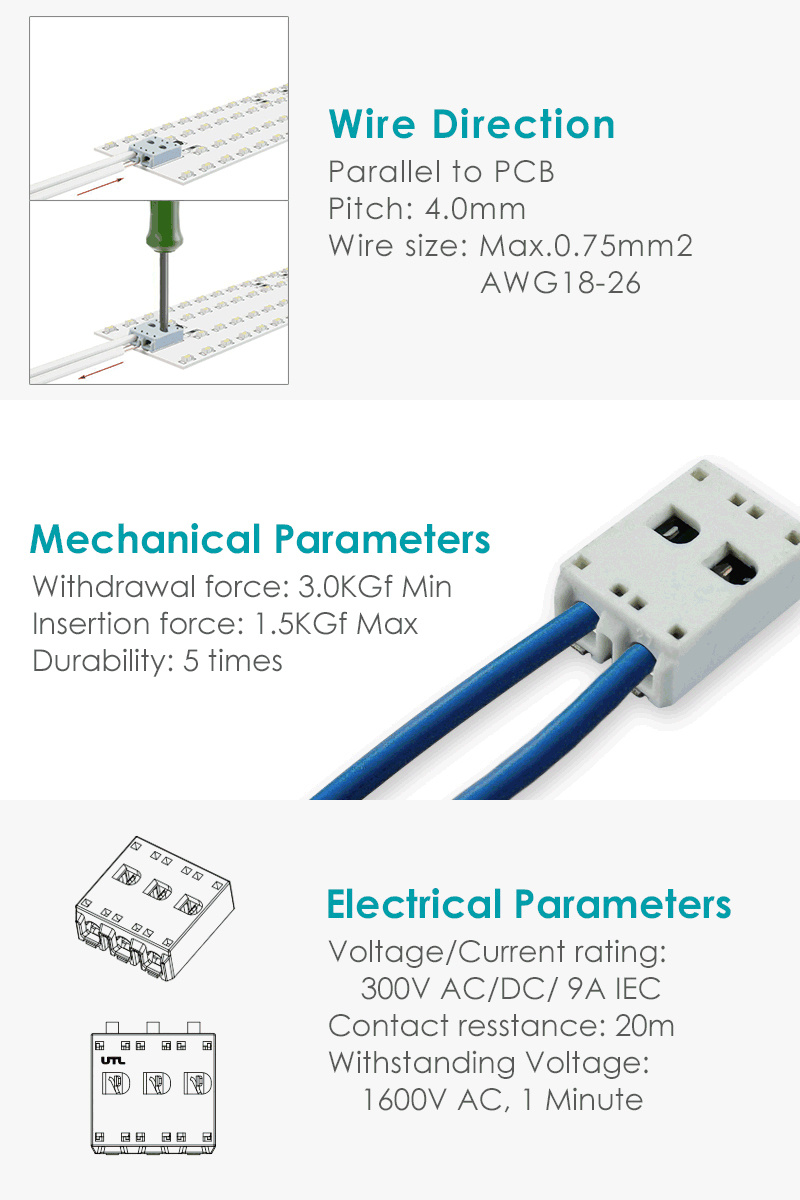

Parameters:

Material
HousingPPA+GF UL94-V0
ContactPhosphor Bronze, Tin plated

Electrical
Rated V/CIEC: 300V/9A
Contact resistance20mΩ Max
Insulation resistanceDC500V, 500MΩ max
Number of Pole1P 2P 3P

Mechanical
Cable sizeAWG24-18 (up to 0.75mm2)
Strip length7-9mm
Operation temp-40ºC to +105ºC

CertificationUL(E480951), CE, CQC





Shipping Info:

  • 1600ps/wheel
  • Lead time: 5-7 working days.
  • Bulk order:10-15 working days




Company Info:


Please feel free to contact us for more info, recommendation or quotation. Any questions or inquires are welcome! Custom products can be made upon request!

We are looking forward to hearing from you soon!


Dennis Lee
International Sales and Consultant

Utility Electrical Co., Ltd.
Tel : +86 021-61478345

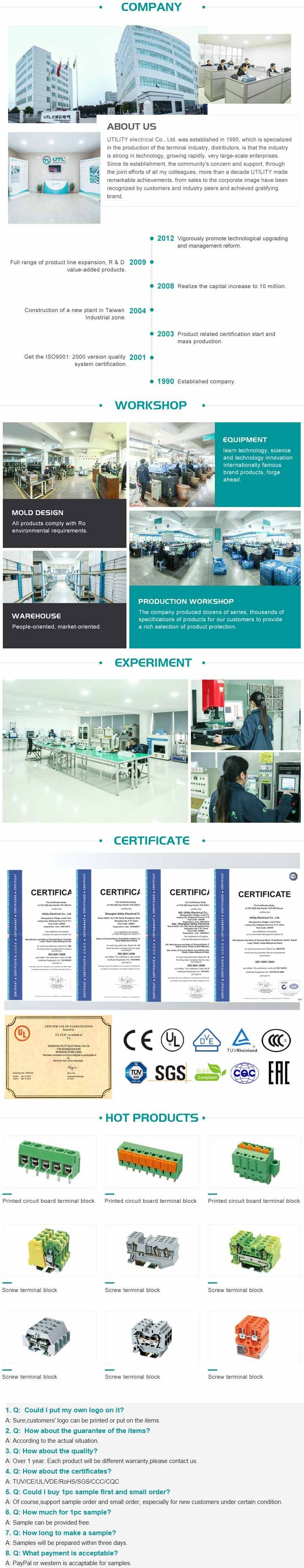

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in
