SMD Diode Pick and Place Machine in SMT Line
| Price: |
US $ 78000-100000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
sm471plus |
| Color: |
Grey |
Product Description

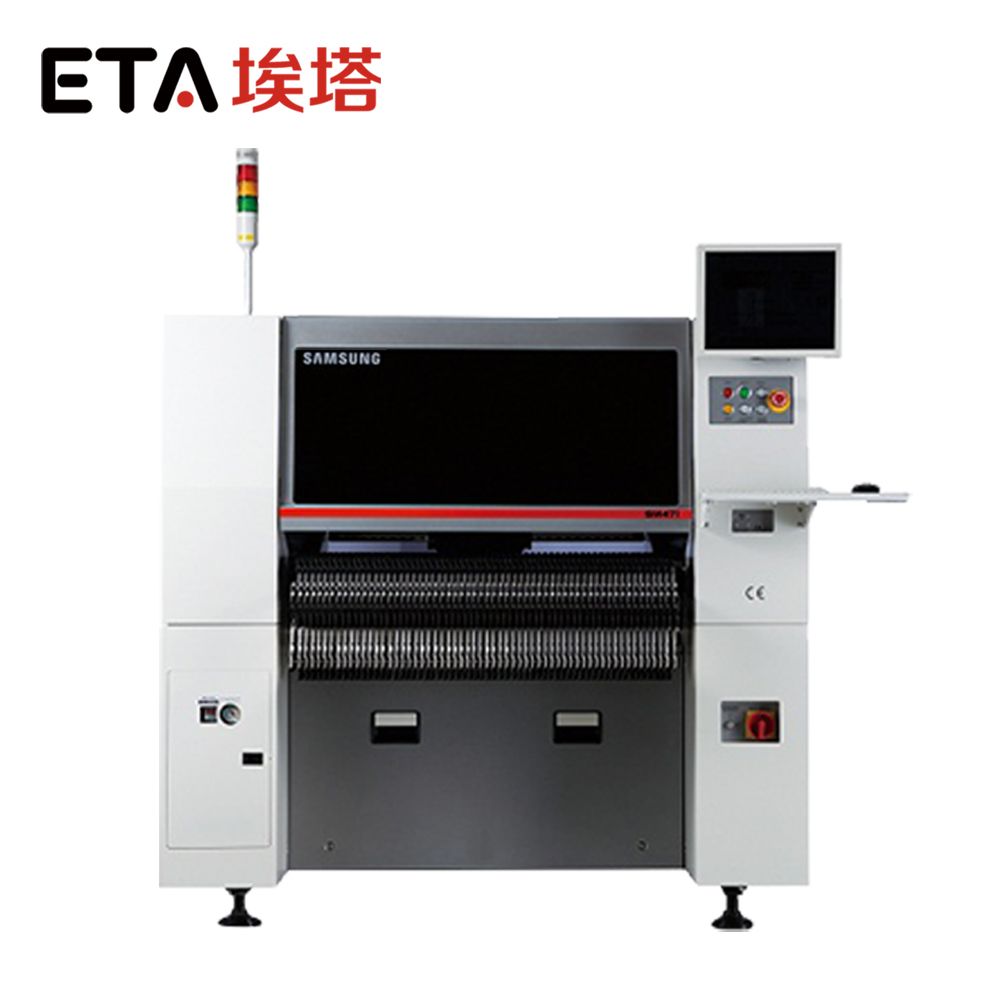

Automatic SMT Chip Counter 471plus SMT Pick and Place Machine Provider in China
Introduction of SAMSUNG SMT Pick and Place Machine
As SAMSUNG SMT Pick and Place Machine that applies two gantries equipped with 10 spindles per head as well as new flying vision, the SAMSUNG SMT Pick and Place Machine realizes a chip mounting speed of 75,000 CPH, the highest in the world among chip shooters of the same class. In addition, it is applicable to 0402 chips to the largest 14mm ICs by default and increases actual productivity and placement quality by applying an electrically driven high speed and high precision feeder. Moreover, it is designed for mixed use with the SM pneumatically driven feeder to maximize the customers' operational convenience.
Main Features of SAMSUNG SMT Pick and Place Machine
1,Realizes a Super-high Speed Placement Speed of 75,000 CPH
Realizes the Highest Placement Speed Among Chip Shooters of the Same Class by Adopting a New Flying Head Mechanism Equipped With 10 Spindles.
2,Electrically Driven High Speed and High Precision Feeder
Electrically Driven SM Feeder
Allows integrated use of 0603/2P/4P Equipped with a function to automatically align the pickup position between feeders to improve the simultaneous pickup rate. Able to set various part supply speeds to improve the stability of part supply.
75,000 CPH(Optimum)
2 Gantry x 10 Spindles/Head
Applicable Parts : 0402 ~ 14mm(H 12mm)
Applicable PCB : Max. 510(L) x 460(W)(Standard)
Max. 610(L) x 460(W)(Option)
Electrically Driven High Speed and High Precision Feeder
Allows mixed use with an SM pneumatically driven feeder
SMART Feeder
The world's first feeder equipped with Auto Splicing and Auto Loading functions
| Specifications | SAMSUNG SMT Pick and Place Machine |
| Number of Spindles | 10 Spindlesx 2 Gantry |
| Placement Speed | 75000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ+3σ (Based on the Standard Chips) |
| Component Range | Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm) |
| Board Dimension(mm) | 50(L) x 40(W)~510(L) x 460(W)610(L) x 460(W)(Option) |
| Feeder Capacity | 120ea / 112ea(Docking Cart) (Based on 8mm) |
| Power | AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)Max. 5.0kVA |
| Air Consumption | 0.5 ~ 0.7MPa(5 ~ 7kgf/cm2) |
| Mass | |
| External Dimension(mm) | 1,650(L) x 1,690(D) x 1,485(H) |
Exhibition
Related Products

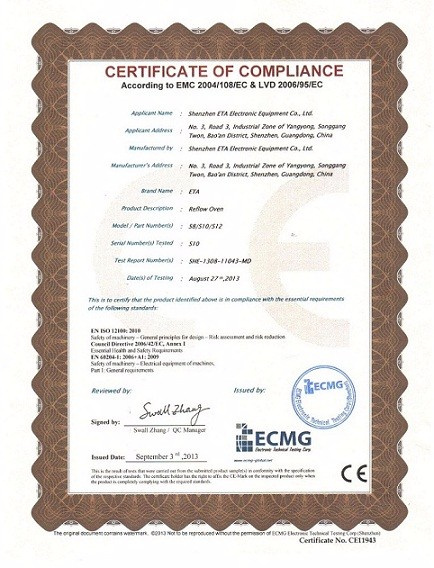

Certifications
Contact Information| Contacts | Sara Ren |
| E-mail | [email protected] |
| Whatsapp | +86 138-2880-2354 |
| We Chat | +86 138-2880-2354 |
| Skype | +86 138-2880-2354 |
For SMT factory setup, we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
Introduction
ETA is the leading SMT factory solution provider in China, offering professional SMT factory building advice and service. We have 20 year experience about SMT factories, offering full solutions for global clients with our great advantaged sources. Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development Currently ETA SMT equipment is representative of high quality, has maintained absolute leading technology in the industry.
Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard, the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle. ETA's continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
ETA
Shenzhen Factory
Produce Stencil printer, reflow oven and SMT peripheral equipments
Hongkong company
Main for trade, offering trade service and support
Inter-trade department 1
Providing full SMT factroy line solution, including chip mounter. We are regular agent of Samsung SMT in China, meantime, we also work with Japan Juki selling JUKI Chip mounters worldwidely.
Inter-trade department 2
Providing parts, accessories, consumptive materials etc.
Core team member:
SMT solutions
Henry Wang
15 years SMT experience, worked as SMT operateor, SMT engineer, SMT manager in BBK company, Coship etc., built many SMT factories, went to Siemens and YAMAHA for training. Well experience in SMT.
Bob Zhang
18 years SMT experience, worked as SMT engineer in Motorola(Tianjin China), France Tomson, production manager in Siemens Chips mounter company. Well experience in SMT. Executive member of IPC.
Jack Yu
20 years SMT experience, worked in FOXCONN for 12 years, worked as product manager for JUKI chip shooter for 5 years, well experienced in the management of electronic factory production
Robbin Hao
15 years SMT experience, worked as manager in Shenzhen Huawei and Japan Panasonic chip mounter, SMT technology expert
After-sale
Thomas Li
13 years SMT and DIP workshop management experience, well proficient in Samsung and Juki Chip mounter, providing after-sale services for aboard clients world-widely
Jobs Ding
3 years after-sale service experience in China, 4 years global after-sale service, well proficient in SMT equipments.
International trade
Shanny True
8 years inter trade experience, have been working on electronic field.
Well experience in consulting, exportation and after sale support.
Angela
6 years sale and after-sale experience, instant response to client for solving any questions.
Attended aboard fairs several times, have wealthy experience of foreign customer reception and Factory inspection. Once worked as interpreter for Siemens.
