SMD High Quality Unshielded Power Inductor

Name: SMD High Quality Unshielded Power Inductor
Brand: all-electronics-online.com
SKU: 826572815
Availability: InStock
Rating: 5 (129 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CD
Product Name:	SMD Inductor with ISO9001 for LED
Quality Certification:	ISO9001: 2008
Environmental Certification:	ISO14000
Application:	LCD TV Set
Tolerance:	J,K,L,M
Type:	Fixed Inductor
Structure:	Core
Brand:	Liwang

Product Description

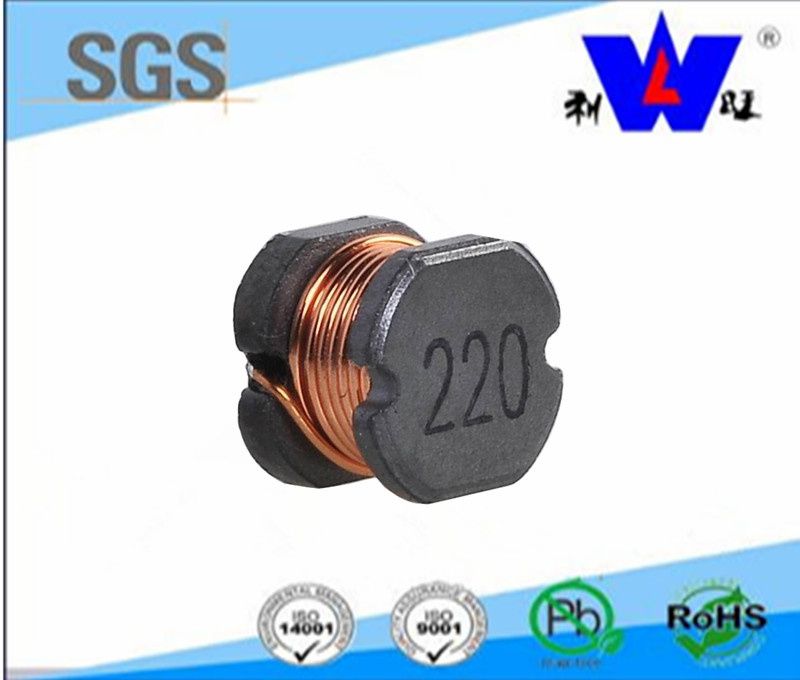

SMt power inductors

Features: Various high power inductors are superior to be high saturation for surface mounting.

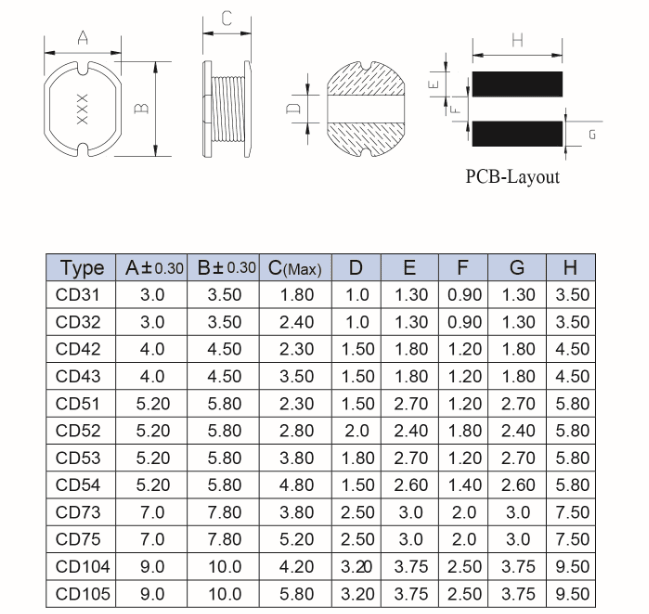

Dimensions of power inductor:

Type	A±0.30	B±0.30	C(Max)	D	E	F	G	H
CD31	3.0	3.50	1.80	1.0	1.30	0.90	1.30	3.50
CD32	3.0	3.50	2.40	1.0	1.30	0.90	1.30	3.50
CD42	4.0	4.50	2.30	1.50	1.80	1.20	1.80	4.50
CD43	4.0	4.50	3.50	1.50	1.80	1.20	1.80	4.50
CD51	5.20	5.80	2.30	1.50	2.70	1.20	2.70	5.80
CD52	5.20	5.80	2.80	2.0	2.40	1.80	2.40	5.80
CD53	5.20	5.80	3.80	1.80	2.70	1.20	2.70	5.80

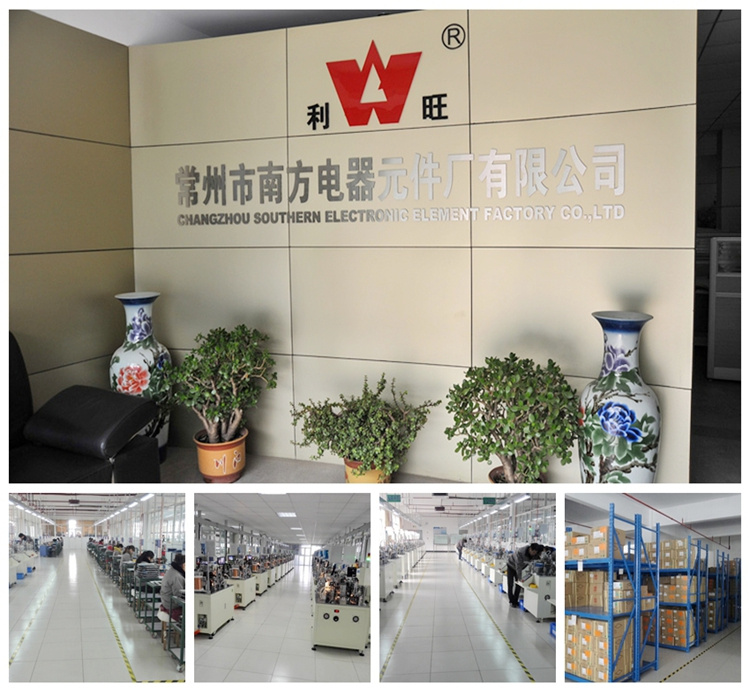

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
