| Prod Model: |

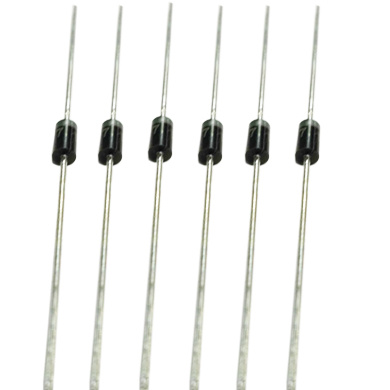

1n4007 |
| Color: |
Black |
| Specification: |
1A 1000V |
| Certification: |
ISO9001 / RoHS |
| Resistance: |
Fixed Resistor |
| Installation: |
SMD Resistor |
| Material: |
Metal Film Resistor |
| Package Type: |
Surface Mount |
| Type: |
Fuse Resistor |
| Brand: |
Topmay |
Product Description
Features:
- Advanced thin film technology
- Very tight tolerance down to +-0.01%
-Extremely low TCR down to +-5PPM/ºC
-Wide resistance range 1Ohm~3Mega Ohm
-Miniature size 0201 available
Applcations
- Medical Equipment
-Testing/Measurement Equipment
-Printer Equipment
-Automatic Equipment Controller
-Converters
-Communication Device, Cell phone ,GPS ,PDA
Operating Temperature Range
--55~+155ºC
Features:
1.Small size, no lead is suitable for high-density surface mount
2. Low resistance value of the highB
3.Excellent solderability and heat shock
4.Suitable for wave soldering and reflow soldering
5.Enamel-coated glass and high precision, small resistance drift
6.Environmentally friendly products
Applications:
1.Semiconductor integrated circuits, liquid crystal display, transistors and mobile communications equipment with the temperature compensation crystal oscillator.
2.Rechargeable battery temperature detection
3.Detecting the temperature of the computer microprocessor
4.Take a variety of temperature compensation circuit, such as advanced audio, wireless headsets, etc.

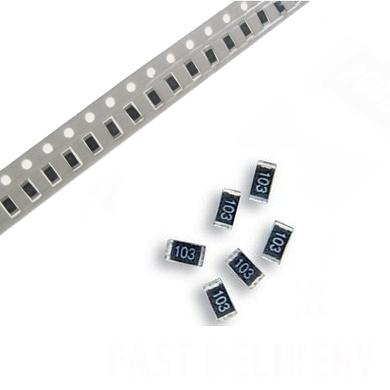

Specifications
EU RoHS Compliant
Resistance Value (Ohm) 1K
Power Rating (W) 0.125 (1/8)
Tolerance 5%
Temperature Coefficient (ppm/°C) ±100
Technology Thick Film
Package/Case 0805
Case Style Epoxy
Current Sensing No
Fail Safe Fusible Resistor No
Maximum Voltage Rating (V) 150
Anti-Surge No
Temperature Range @ Derated Power (°C) 70 to 155
Case Size 0805
Packaging Tape and Reel
Package Type SMD
Product Length (mm) 2
Product Depth (mm) 1.25
Product Height (mm) 0.5
Maximum Operating Temperature (°C) 155
Package Shape Rectangular
Mounting Surface Mount
Minimum Operating Temperature (°C) -55
Anti-Sulfurated No
Number of Terminals 2
Operating Temperature (°C) -55 to 155
Value:
1p0, 1p2, 1p5, 1p8, 2p2, 2p7, 3p3, 3p9, 4p7, 5p6, 6p8, 8p2, 10p, 12p, 15p, 18p, 22p, 27p, 33p, 39p, 47p, 56p, 68p, 82p, 100p, 120p, 150p180p, 220p, 270p, 330p, 390p, 470p, 560p, 680p, 820p,
1n2, 1n5, 1n8, 2n2, 2n7, 3n3, 3n9, 4n7, 5n6, 6n8, 10n, 82n, 1n, 8n2, 12n, 15n, 18n, 22n, 27n, 33n, 39n, 47n, 56n, 68n, 100n 220n 330n 470n 680n
0R, 1R, 2R7, 3R3, 4R7, 10R, 12R, 15R, 18R, 22R, 27R, 33R, 39R, 47R, 56R, 68R, 82R, 100R, 120R, 150R, 180R, 220R, 270R, 330R, 390R, 470R, 560R, 680R, 820R
1K0, 1K1, 1K2, 1K3, 1K5, 1K6, 1K8, 2K0, 2K2, 2K4, 2K7, 3K0, 3K3, 3K6, 3K9, 4K3, 4K7, 5K1, 5K6, 6K2, 6K8, 7K5, 8K2, 9K1, 10K, 11K, 12K, 13K, 15K, 16K, 18K, 20K, 22K, 24K, 27K, 30K, 33K, 36K, 39K, 43K, 7K, 51K, 56K, 62K, 68K, 75K, 82K, 91K, 100K, 110K, 120K, 150K, 180K, 220K, 270K, 330K, 390K, 470K, 560K, 680K, 820K
1M0, 1M5, 1M8, 2M2, 10M
