| Prod Model: |
HY-1185L |
| Color: |
Red/Black |
| Type: |
SMD Type |
| Installation Form: |
Surface Mount |
| Structure: |
2-Point Contact |
| Package: |
Bulk Artificial Plug |
| Shape: |
Rectangular |
| Shrapnel: |
Gold-Plated |
| Certification: |
RoHS |
| Application: |
Electronic and Electrical Equipment |
Product Description

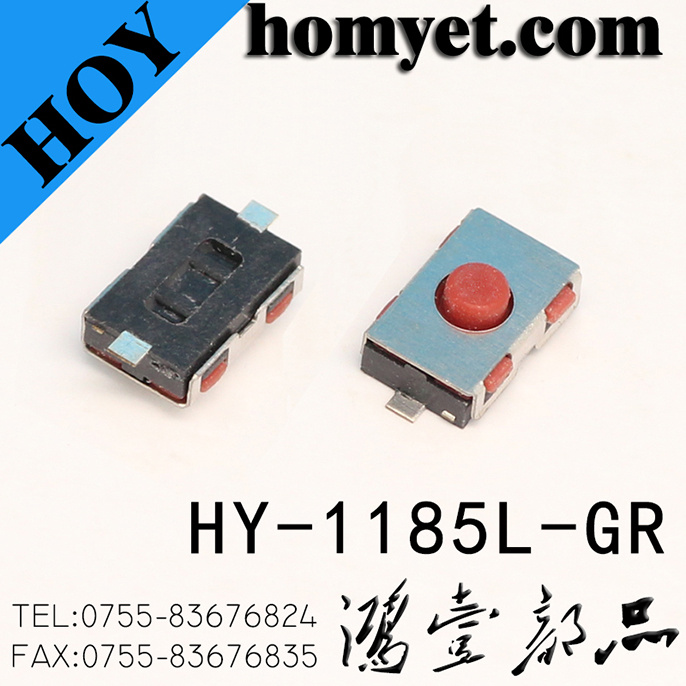

SMD Type contact Tact Switch with red handle
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape
Material
1. Deystoke: PPA/PBT Red Black Blue White
2. Base: PPA/PBT Black
3. Contact: Copper-Silver Composite
4. Shell: IRON Tin-plated
5. Terminal: Brass Plating silver
Specification:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.
| Rating | DC 12V 50mA Max |
| Insulation Resistance | 100mΩ Min |
| Operating Force | 100gf,250gf |
| Contact Resistance | 100mΩ Max |
| Travel | 0.3/0.5+-0.1mm |
| Life | 50,000 cycles Min |
Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile
