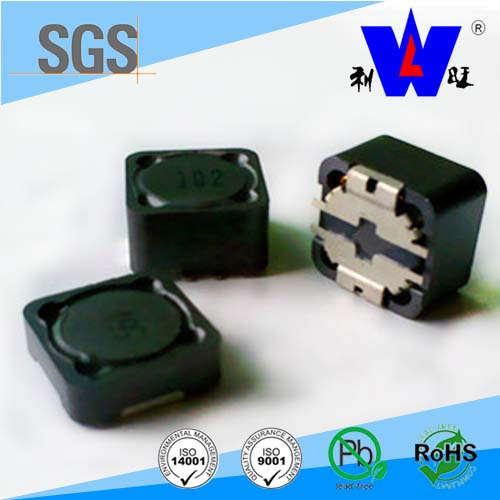

SMD Various High Power Inductor with RoHS

Name: SMD Various High Power Inductor with RoHS
Brand: all-electronics-online.com
SKU: 761460255
Availability: InStock
Rating: 4.4 (37 reviews)

Price:	US $ 0.01-1/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDRH124/125/127/129
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Safety Certification:	CQC 03003095~3097
Certification:	RoHS
Productor Name:	SMD Various High Power Inductor with RoHS
Type:	Fixed Inductor
Structure:	Core
Brand:	Liwang

Product Description

Product description of the SMD Various High Power Inductor with RoHS
Key Specifications/Special Features:
Compact and thin
Large current and low DC resistance
Lead-free
RoHS compliant
Magnetically shielded chip inductor
Shielded SMD power chip inductor
For high current and very low DCR
Re-flow and hand soldering are available
Good solder fillets and character prevents damage during soldering re-flow
Suitable for reflow soldering
More competitive prices and fast delivery service

Applications:
Notebook computer
Battery power equipment
DC/DC converter
Digital camera and scanner
CD-ROM/DVD and PDA
Small size communication equipment
Filtering of supply voltages
Coupling, decoupling
Automotive electronics

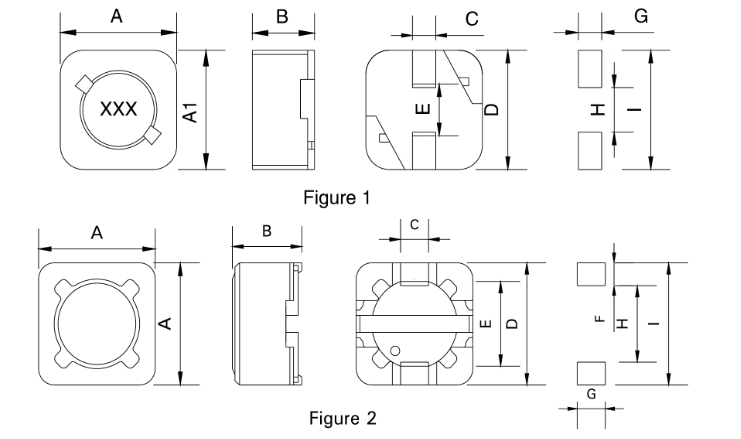

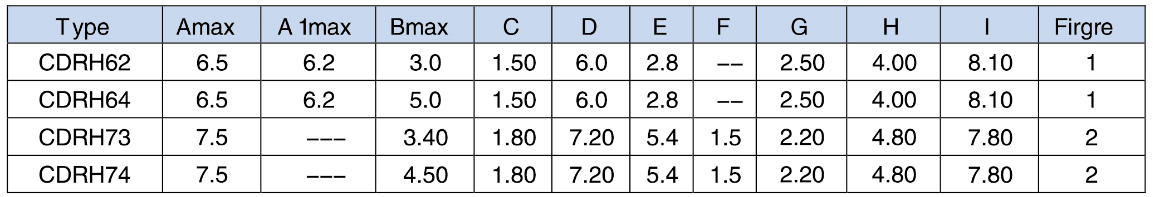

Dimensions of power inductor:

Tested at 100kHz, 0.1Vrms, inductance: uH 20% (M)
DC current at which the inductance drops 10% (type) from its value without current
Operating temperatures: range -40 to 105°C
Electrical characteristics at 25°C:

ts mechanical strength and thermal stability is good enough to bear the temperature changes from the reflow soldering and the outside force. It is mini size, high energy-stored, low resistance makes itself an ideal inductor when used in the PDA, DC/DC switches. Be suitable to work in the big current condition.

Don't hesitate to contact us if you have any interest in our products,welcome to provide us your specification,we will submit the best quotation shortly.

It's our pleasure to be on service of you.Thanks.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
