| Prod Model: |
GPS103 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Vehicle GPS Tracker |
| Weight: |
120g |
| Sos Button: |
Yes |
| Monitoring Function: |
Yes |
| Fuel Sensor: |
Optional |
| Tracking By: |
SMS, Mobile Phone, Web Platform |
| Software: |
Free |
| Tracking Map: |
Real Time Google Maps |
| Tracking Way: |
SMS, Phone APP, Web Platform |
| Warranty Time: |
1 Year |
| Type: |
GPS Tracker |
| Screen Size: |
2.5" |
| Chip: |
SiRF |
| Use: |
Vehicle GPS Tracker GPS103 |
| Model: |
103A |
| Brand: |
Coban or OEM |
Product Description
Product Description
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary

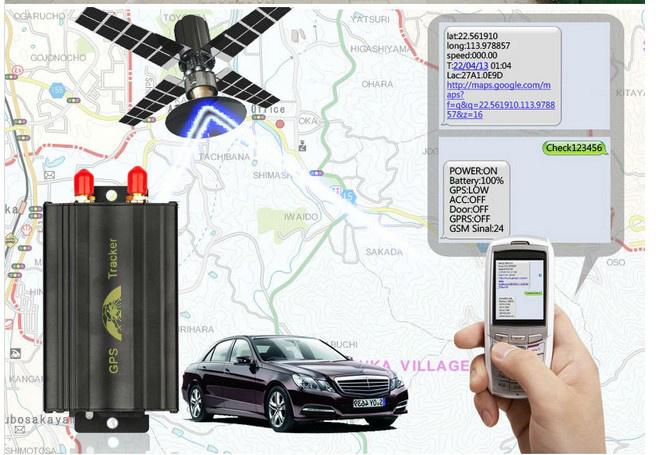

This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* Top Quality
* Factory Price
* Fast delivery
* 12 months Warranty.
*Vehicle fleet/logistics/Vehicle rental GPS tracker support GSM/GPRS network on APP/web platform tracking.
3. Main Function Description
Single Locating
Auto track continuously
Track with limited times upon time interval
Track with unlimited times upon time interval
Smart track upon time and distance interval
Automatic update positions of vehicle turns
GPS drift suppression
Absolute street address by SMS
Location based service (LBS)
Monitor
Data logging
Data Load
Forward the third parties' message
Charges Inquiry
Low battery alarm
Power off alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alarm
Over speed alarm
Accident alarm (Option)
ACC working alarm
Fuel alarm
Cut off the Oil and Power System
Arm
Disarm
Alarms under Arm State
Door alarm
3-aixs accelaration sensor
ACC alarm
Silent Mode
Alarm without GSM network service
Check the Vehicle State
Reset Hardware
Sleep Mode
Terminal (local) Time Setting
TCP/UDP switch
Configure parameters by USB
GPRS Setting
Less GPRS traffic
Modes Switch between SMS and GPRS
Set up monitor center number
Technology parameters:
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

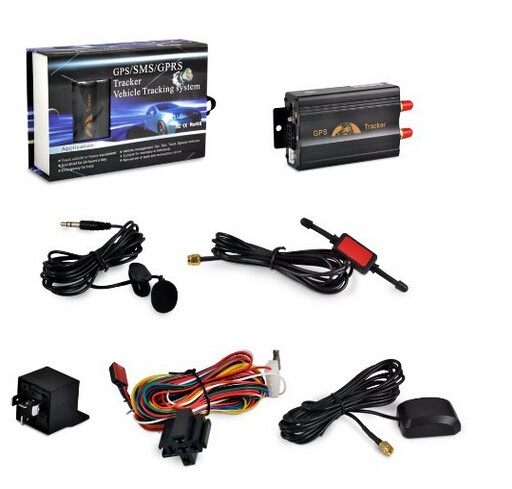

Item Includes:
1 * GPS tracker
1 * Microphone (1.5 meters)
1 * GSM antenna (3 meters)
1 * GPS antenna (3 meters)
1 * Relay (12V/40A to 24V/40A according to vehicles)
1 * Harness (16 Pin)
1 * User manual
1 * gift box
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;

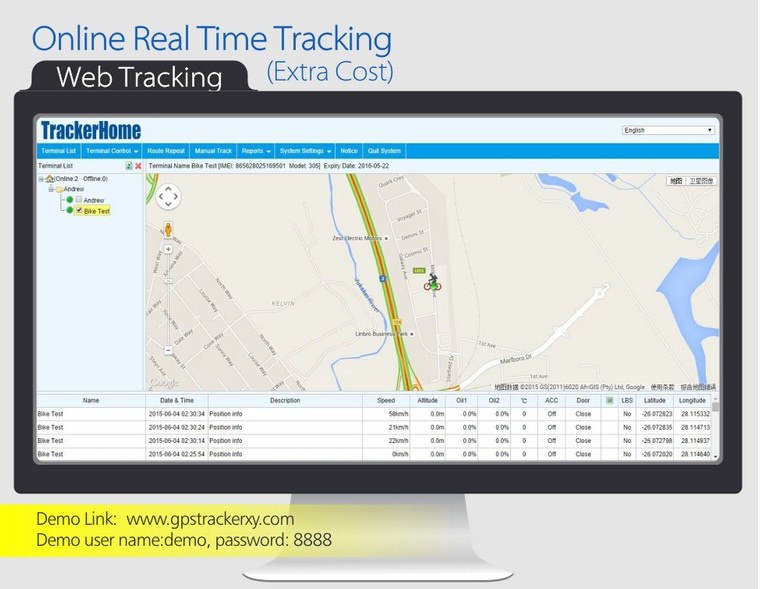

D>: simple & useful real time tracking via our website www.gpstrackerxy.com (server 1,demo id:demo,password:8888)
E >: IOS and Android APP
