| Prod Model: |
GPS Tracker TK102B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Magnetic: |
Yes |
| Manuacturer Or Not: |
Yes |
| Water Proof: |
Yes |
| OEM Or Not: |
Yes |
| Certificate: |
CE ISO FCC |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| Shipment: |
by Express or by Air |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Port Number: |
20 |
| Model: |
102 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

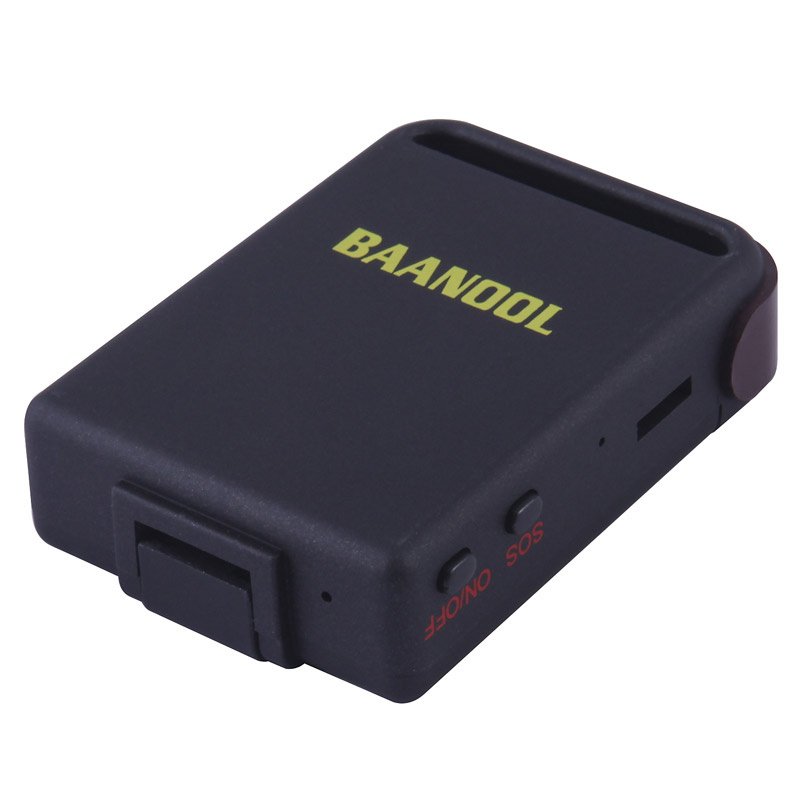

GPS Global Smallest Position Tracking Device with Free PC Monitor Software
-Powerful magnet+water proof, adsorbing in the hidden place of car.
-tandby 80hours, Small cubage, Handheld,
-Integration design(antenna and battery inside); Easy to hide and take along with you
GPS global smallest GPS tracking with Long time battery, made in China
Details:
Working Based on existing GSM/GPRS(850/900/1800/1900MHz)network and GPS satellites, This product can locate accurately and be used in guarding Vehicle against theft, Protecting child / Elderly / disabled / pet, Managing personnel and Tracking criminals secretly.
Features:
1. Support orientation without orientated server: It can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position.
2. Can support platform:
When using platform, it can track targets in real time on electronic map, or inquire the target's position by mobile phone.
3. If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
4. Tracking function by timing and frequency
5. Authorized number added and deleted function
6. Support hidden alarm and monitor function
7. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
8. Movement alert: You can set up barriers when the tracker is stopped. Once moved, it can give an alarm to the authorized number.
9. Over speed alarm: You can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
10. Low battery alarm function
Technology data
Dimension 46(L)x64(W)x17(H) mm
Weight 50g
Network GSM/GPRS
Band 850/900/1800/1900MHz
GSM sensitivity Less than -102dBm
GPS chipset SIRF3 chip set
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix Cold status 45s
Warm status 35s
Hot status 1s
Car charger 12-24V input, 5V ouput
Wall charger 110-220V input, 5V output
Battery Power Chargeable changeable 3.7V 800mAh Li-ion battery
Battery Life About 80 hours
Operating Temperature -20° C to +55° C
Storage Temperature -40° C to +85° C
Humidity 5%--95% non-condensing
Factory information
Founded in 1999, Shenzhen Coban Electronics Co., Ltd is a professional export-oriented enterprise 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
Welcome to your OEM and ODM.
Please feel free to inquiry our GPS trackers, We will offer you a good price depending on your quantity and request.
| Model | GPS 102 |
| General Introduction | Working Based on existing GSM/GPRS(850/900/1800/1900MHZ)network and GPS satellites, this product can locate and monitor any remote targets by SMS or Computer or PDA |
| Application | 1. Vehicle rental/out-door machines and equipments ect. guard tracking
2. Protect child / the old / the disabled / pet etc
3. Provide peace-of-mind for businessmen
4. Manage personnel
5. Track criminals secretly |
| Special and Unique | 1. Powerful magnet(adsorbing in the hidden place of car), waterproof shell, memory SD card slot.
2. Multiple tracking ways: Provide monitor software with the global map free
realtime tracking by your computer or PDA cell phone or googleearth.
3. Standby 80hours.
4. Small cubage;
Dimension: 46*64*17mm (1.8*2.5*0.65inch)
Weight: 50g |
| Four tracking solutions | 1. SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen.
2. Get absolute address by SMS
3. PC Installation software tracking.
4. Web server online tracking |
| Two working mode | * SMS mode * GPRS mode |
| Functions | | Basic functions | Different Alarm functions | 1. Single Locating
2. Get location in real street/address name
3. Auto Track
4. Location based service
5. Monitor (Voice Surveillance)
6. Data Storage
7. Data Load
8. State Checking
9. IMEI checking:
10. Terminal (local) Time Setting | 1. Geo-fence
2. Movement alert
3. Overspeed alert
4. SOS alarm
5. Low battery alert
6. shock alert |
|
| Packaging Detail | Package Include
* Mini Global GPS Tracker
* Battery Charger
* Power Adaptor
* 2 x Batteries
* Battery Cover with Magnet
* Plastic Holder Bag
* Software CD
* English Manual
Dimension: 46*64*17mm
Weight: 40g
Box: 13cm*19cm*5.7cm
Paking weight: 0.47kg(car charger plus: 30g; battery charger plus: 50g)
Carton: 53.4cm*39.9cm*30.4cm
Qty Of One carton: 40pcs/ctn
Net weight: 18.8kg/ctn Gross weight: 21kg/ctn |
