SMT Assembly Solder Stencil SMT PCB Stencil

SMT Assembly Solder Stencil SMT PCB Stencil
Price: US $ 90/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: PCB Stencil
Material Type: Stainless Steel
Technology: Laser Cut
Pattern Range: 600mm X 500mm
Maximum Sheet Size: 850mm X 800mm
Stencil Thickness: 0.1mm (4mil), 0.125mm (5mil), 0.15mm (6mil), 0.18m
Dielectric: FR-1

Product Description

Basic Info

  • Model NO.: PCB Stencil
  • Mode of Production: SMT
  • Base Material: FR-1
  • Customized: Customized
  • Origin: China
  • Metal Coating: Copper
  • Layers: Double-Layer
  • Certification: RoHS, ISO, SGS
  • Condition: New
  • Specification: CE, RoHS, SGS


Product Description

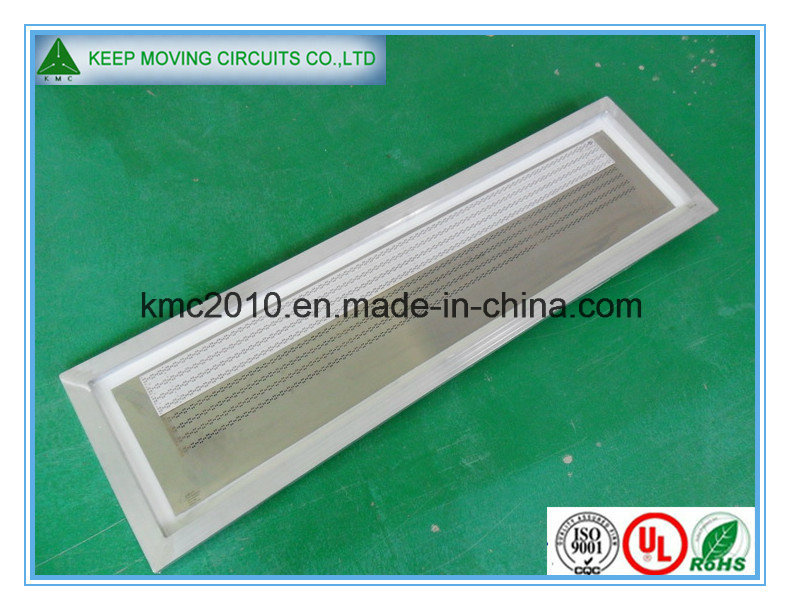

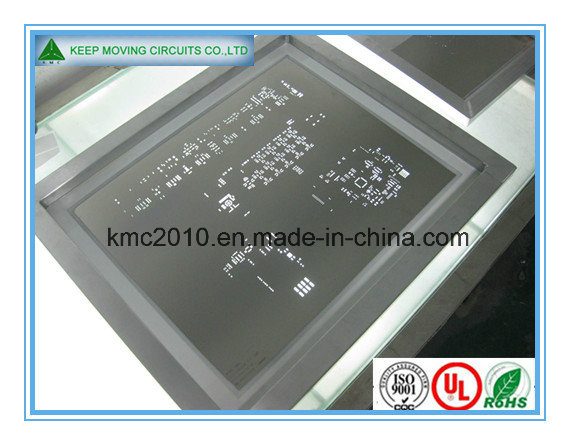

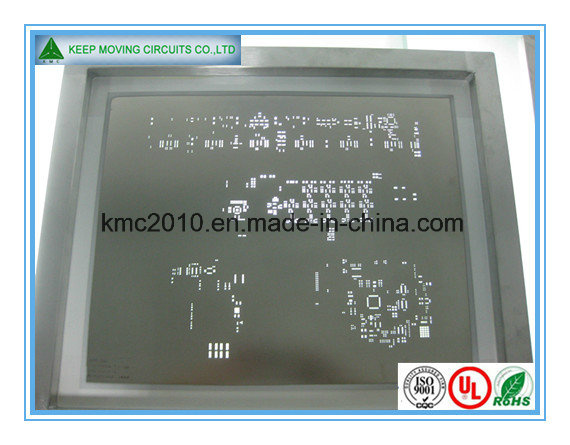

High precision SMT PCB STENCIL

Features:

SMT STENCIL FOR PCB
1) Size:  37* 47cm, 58*58cm, 60*40cm, 55*65cm, 40*70cm, 40*80cm, 40* 100cm, etc.
2) ETA High precision
3) Laser stencil
4) We can make the SMT stencil according to the different Reqeust.
5) Leadtime: 1 day



Product Type

SMT Paste Stencil

Material

Stainless Steel

Technology

Laser Cut

Pattern range

600mm x 500mm

Maximum Sheet Size

850mm x 800mm

Stencil Thickness

0.1mm (4Mil), 0.125mm (5Mil), 0.15mm (6Mil), 0.18mm (7Mil) or 0.2mm (8Mil), 0.25 (10Mil), 0.3 (12Mil)

Axial Precision

+/-10um

Resolution

0.5um (0.013Mil)

Edge Roughness

<3um (Typical)

Minimum Aperture

0.05mm (2Mil)

Electro polishing

Standard

Frames

Optional

1. Excellent quality for SMT assemly
2. Reasonable price
3. Small order accept
4. ROHS product
Welcome to KEEP  MOVING  CIRCUITS  CO., LTD : SMT assembly solder paste stencil printer machine led soldering stencil manufacturer in China

We offer: Etching & Laser Stencil, PCB, PCBA, Singe-side PCB, Double-side PCB, Multilayer PCB, Aluminium PCB, Spray Tin PCB, Immersed Gold PCB, HDI Mobilephone PCB, Gold-plating PCB, (printed circuit board with assembly)PCBA, SMT PCBA, DIP PCBA, PCB&PCBA Copy, PCB Assembly, OSP, HASL and etc.

If you are interested in any of our products please feel free to contact us.
We are looking forward to hearing from you.





Fr4 2layer PCB Board with Quick-Turn Service Good Quality

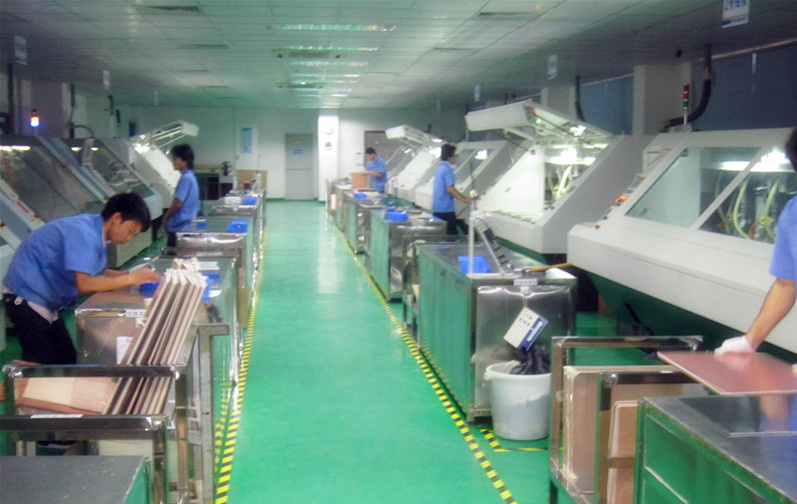

KEEP MOVING CIRCUITS Co., Ltd was founded in August, 2000 a hi-tech enterprise, specializes in manufacture, supply and export of high precision FR4 1 layer, 2layer and multilayer PCB. Since. 2014, company core business are FR4 double sided and Multilayer, middle up to high volume PCB orders. For offering all customers better service, now also can offer flexible PCB and rigid-flexible PCB, High Frenquency and Metal Core PCB. Through the hard work and dedication of all employees during the past years, we are already one excellent PCB manufacturer in China. Our company covers over 15000 square meters modernized workshop area and a complete set of advanced production equipment, with about 500 fixed employees and more than 100 of senior management, craftsmen and engineers., a group of quality talents with over ten years of experience in PCB industry. Since 2017, our company is capable of producing more than 20000 square meters PCB and delivering over 8000 varieties monthly.

Our products are widely used in LED lights products, communication, network, digital products, industrial control, medical care, aeronautics & astronautics, defence & military fields, etc. With the scientific management, stable product quality, exquisite technique and professional service, we has won favor and recognition throughout the world, including China mainland, Taiwan and Hongkong, USA, Canada, Germany, Italy, Switzerland, UK, France, Holland, Poland, Czech etc. With market as orientation, quality and efficiency as guarantee, we strives to constantly improve customers' satisfaction by providing them with best quality PCB and services. We expects to make its contribution to the constant development of the electronics industry under the support of customers. We warmly welcome your visit and cooperation.
