Product Description
Product Description
ETA as a SMT equipment provider, we invest 100million dollars in 2012 to build the SMT factory, to provide foreign customers OEM services
Specifications
1.pcb with smt,dip assembled
2.Automative smt,AI lines for pcba
3.AOI,X-ray test
4.15 days lead time
5.ROHS approved

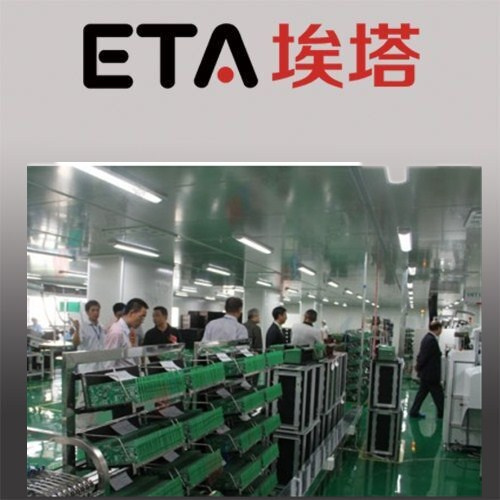

Welcome to ETA SMT Factory!
Our PCB board manufacture and PCB Assembly service
PCB board file with parts list provided by customers
PCB board made, circuit board parts purchased by us
PCB board with parts assembled
Electronic testing circuit board or PCBA
Fast delivery, anti-static package
RoHS Directive-compliant, lead-free
One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
PCB Assembly Capabilities
Quantity
Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000
Type of Assembly
SMT,Thru-hole
Solder Type
Water Soluble Solder Paste,Leaded and Lead-Free
Components
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Bare Board Size
Smallest:0.25*0.25 inches
Largest:20*20 inches
File Formate
Bill of Materials
Gerber files
Pick-N-Place file
Types of Service
Turn-key,partial turn-key or consignment
Component packaging
Cut Tape,Tube,Reels,Loose Parts
Turn Time
Same day service to 15 days service
Testing
Flying Probe Test,X-ray Inspection AOI Test
PCB assembly process
Drilling-----Exposure-----Plating-----Etaching&Stripping-----Punching-----Electrical Testing-----SMT-----WaveSoldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
Detailed Terms for Pcb Assembly
Technical requirement for pcb assembly:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603,1005,0201 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement for pcb and pcb assembly:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
Production Details:
1) Material Management
Supplier → Components Purchase → IQC → Protection Control → Material Supply → Firmware
2) Program Management
PCB Files → DCC → Program Organizing → Optimization → Checking
3) SMT Management
PCB Loader → Screen Printer → Checking → SMD Placement → Checking → Air Reflow → Vision Inspection → AOI → Keeping
4) PCBA Management
THT→Soldering Wave (Manual Welding) → Vision Inspection → ICT → Flash → FCT → Checking → Package → Shipment
Special Instructions:
For the Initiative Components,we purchase them from original manufacturer or agents. As for Passive Components, we purchase from our local market to reach a competitive cost. but that don't mean we compromise to the low quality.
Professional Teams,Skillful Technology,Competitive Price,High Quality,Superior After Service... Be your good partner!
Packaging & Shipping
Packageing Details : wooden case or customised package
Delivery Details: 20 workingdays
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within10 working days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
Our Services
1.Pre-consultation: provides professional SMT solutions for the full line.
2.Factory Warranty: One-year warranty factory service.
3.Installation: On-site installation and commissioning, to ensure smooth production.
4. Technical Training: provides professional training from Level 1 to Level 3.
5.Technical support:provides 7 * 24 technical support.
6.Software Upgrade: offers lifetime free software upgrades for all products.
Company Information
ETA is the leading SMT factory solution provider in China,offering professional SMT factory building advice and service.We have 20 year experience about SMT factories,offering full solutions for global clients with our great advantaged sources.Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development. Currently ETA SMT equipment is representative of high quality , has maintained absolute leading technology in the industry.
Over the years the company has been committed to improving technology, quality and perfect service. ETA makes a positive contribution to international standard,the annual total capacity of 1200 sets, passed the ISO9001: 2000, ISO14000, CE, UL, RoHS and other certifications. Full implementation of the IPD process, reliable design and testing throughout the entire product life cycle.ETA's continued investment in research and development and great contribution has been unanimously recognized in the field. By the end of 2012, ETA has declared more than 30 patents and software copyrights (including four invention patents), and actively involved in a number of national and industry standards. ETA provides more advanced products and fast technical support for global customers, at home and abroad.
FAQ
1. Quick response within 24 hours.
2. On time delivery.
3. Techinical support before and after sales.
Thanks for choosing ETA.
ETA looks forward to win-win cooperation.
