| Prod Model: |
XJY-PCB 028 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Thickness: |
1oz |
| Solder Mask: |
Green |
| Surface Finish: |
HASL,Enig |
| Min.Hole Size: |
0.25mm |
| Min.Line Width: |
0.075mm |
| Layer: |
1 to 18 |
| Max.Finished Thichness: |
0.4~4mm |
| Max.Finished Board Side: |
500mmx500mm |
| Copper Weight: |
0.5~4oz |
| Layers: |
Multilayer |
| Certification: |
UL |
| Base Material: |
FR-4 |
| Mode Of Production: |
SMT |
| Metal Coating: |
Copper |
| Customized: |
Customized |
| Condition: |
New |
Product Description

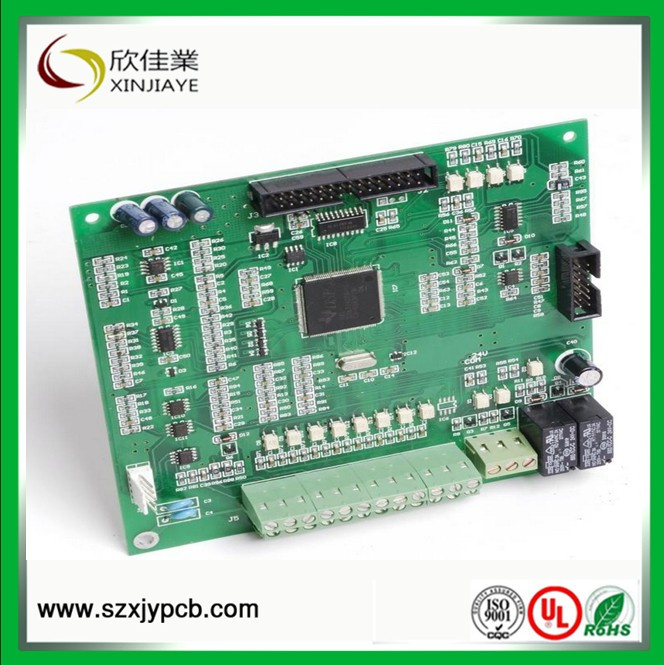

2Layer HASL-LF PCB with RoHS and UL Certification and Assembly Components, 1.6mm board thickness ,green solder mask , outer copper thickness 1oz(35um), inner copper thickness 1oz(35um) Rogers material XinJiaye is able to offer one stop 1 to 24 Layer PCB fabrication, PCB manufacturing, component sourcing,
PCB Assembly, PCBA Test, Reverse engineering service; FPC fabrication,
Aluminium base fabrication,
High Frequency Board fabrica-tion.
SMT/SMD PCBA/PCB assembly
Quick Details
Place of Origin: |
Guangdong China (Mainland) |
Brand Name: |
PCB |
Model Number: |
MKPCBAPP0350 |
Base Material: |
FR4,Alu. |
Copper Thickness: |
1 oz |
Board Thickness: |
1.6mm |
Min. Hole Size: |
0.25mm |
Min. Line Width: |
0.075mm |
Min. Line Spacing: |
0.075mm |
Surface Finishing: |
HASL,ENIG |
Surface finish: |
HAL, ENIG |
Certification: |
UL, SGS, RoHS, ISO 9001, ISO 14001 |
Material: |
FR4, Aluminum, CAM1, Rogers |
Layer: |
1-18 |
Solder mask color: |
green, black, white, red, blue |
Max. finished thickness: |
0.4-4 mm |
Max. finished board side: |
500mm x 500mm |
Tolerance of finished panel thickness: |
±10% |
Copper weight: |
0.5-4 oz |
Hole tolerance: |
PTH: ±0.076, NTPH: ±0.05 |
Our PCB board manufacture
* PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us
* Electronic testing circuit board
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-fre
Testing Procedures For PCB Board
---We perform multiple quality assuring procedures before shipping out
any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)
Detailed Terms for PCB Manufacturing
---Technical requirement for PCB assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206, 0805, 0603 components SMT technology
* ICT(In Circuit Test), FCT(Functional Circuit Test) technology.
* PCB Assembly With UL, CE, FCC, RoHS Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.
Delivery Time for PCB board
1) PCB production time: Sample: 3-4 days / mass production: Within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass production: Within 5 days
Quotation Requirement:
Following specifications are needed for quotation:
A) Base material:
B) Board thickness:
C) Copper thickness
D) Surface treatment:
E) color of solder mask and silkscreen:
F) Quantity
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.
Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components, PCB design, PCB copy, PCB drawing, PCB assembly and so on.so provide sourcing components, PCB design, PCB copy, PCB drawing, PCB assembly and so on.
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
