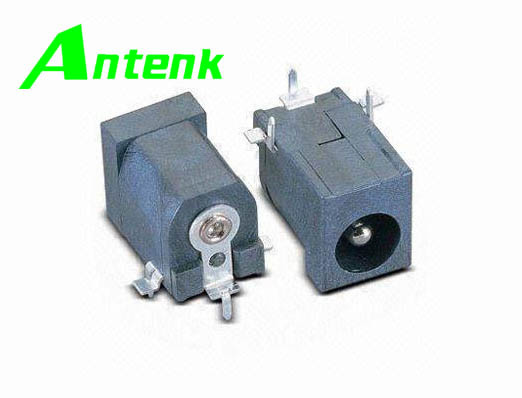

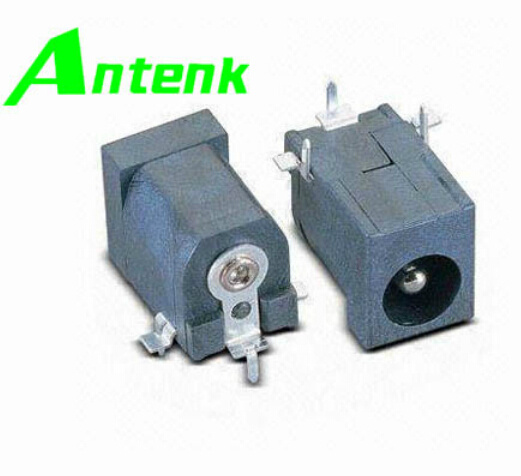

SMT Type Plug DC Power Jack

Name: SMT Type Plug DC Power Jack
Brand: all-electronics-online.com
SKU: 609256864
Availability: InStock
Rating: 5 (130 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DC JACK 005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Supply
Installation Mode:	Automatic Pop-up
Type:	TF Jack
Interface Type:	ZIF
Shape:	Rectangular
Production Process:	Injection
Working Frequency:	High Frequency

Product Description

DC Power Jack, SMT type with 100mA Current and 50m Ohms Plug to Contact

Extraction force:
Value of specifications:
0.4 to 3.0kg (initial condition)
0.3 to 3.0kg (after life, humidity, heat, cold test, resistance to soldering heat test)
Contact resistance:
Contact resistance of jack shall not exceed the value defined in the table listed at a current less than 100mA with frequency of 1kHz four terminals method
Value of specifications:
Contact to shunt:
30m ohms (initial condition, after humidity, heat, cold, after resistance to soldering heat test)
60m ohms (after durability test)
Plug to contacts:
50m ohms (initial condition, after humidity, heat test, cold test, resistance to soldering heat test)
100m ohms (after durability test).
