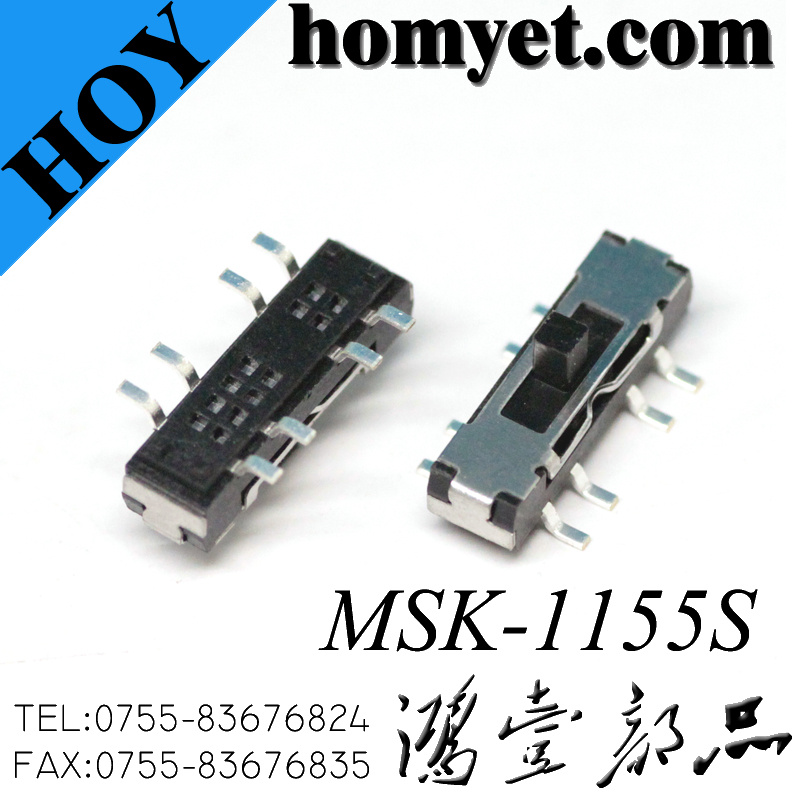

SMT Type Vertical 3 Position 2t3p Slide Switch (HY-1155S)

Name: SMT Type Vertical 3 Position 2t3p Slide Switch (HY-1155S)
Brand: all-electronics-online.com
SKU: 818615185
Availability: InStock
Rating: 4.9 (115 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY-1155S
Model:	Msk-1112

Product Description

Specification:

Features:
1.Micro-Miniature, Innovative design
2.It has good feeling and long life
3.Snap-in type, can be mounted directly on P.C.Board and good for electrostatic discharge
4.It has a lot of choices for button shape and height and it is easily to install

Electrical Performance:

Rating	50mA DC12V
Insulation Resistance	100mΩ min(DC100V)
Compressive Strength	AC100V(50/60Hz for 1 minute)
Mechanical life	10,000cycles min
Operating Temperature	-10°C--+60°C
Operating Force	200+-80gf

Product Details:

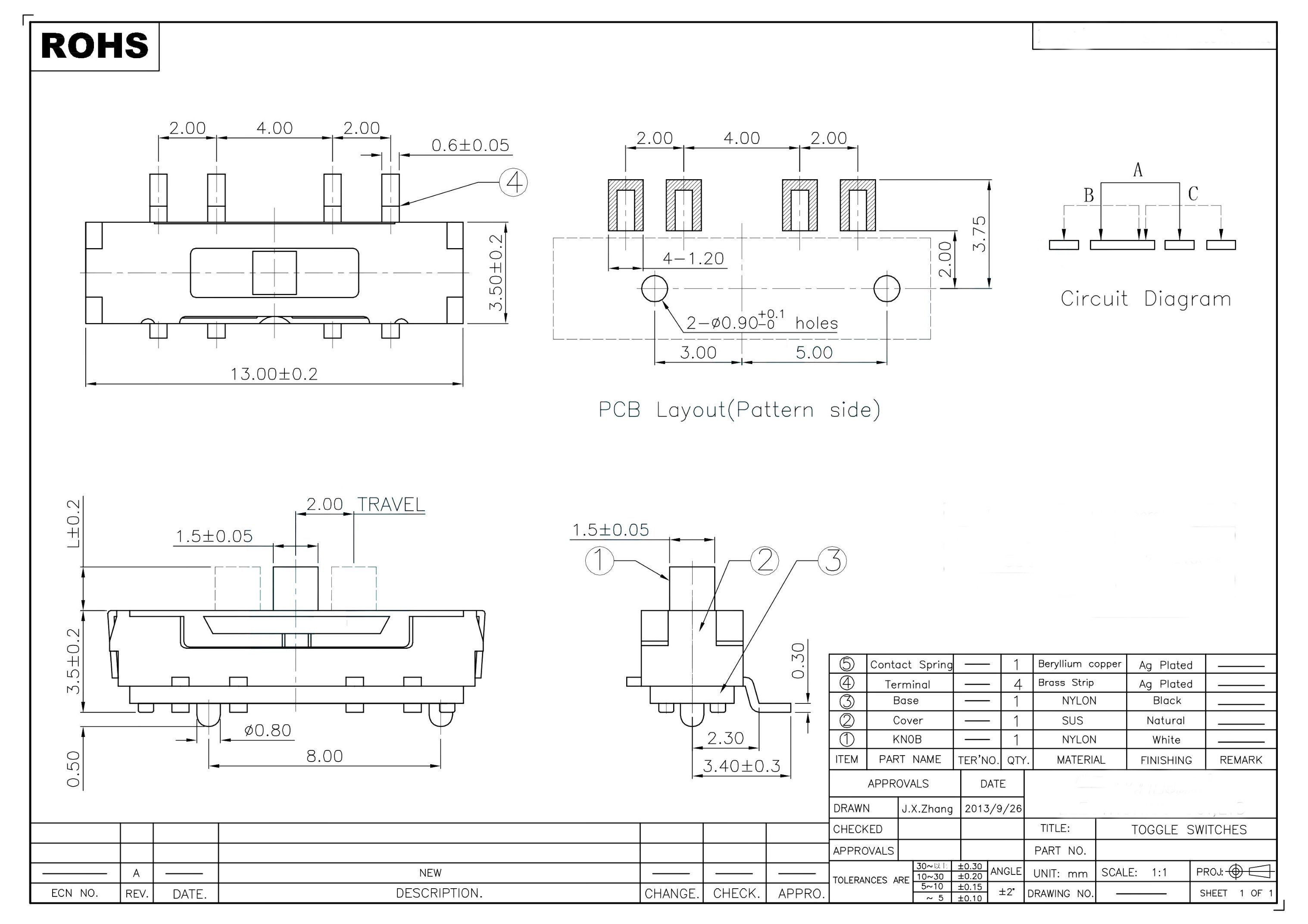

Product Drawing:

Applications:
Include low power on/off designs, instrumentation, telecommunications, performance audio, computers/servers, networking and more.
1) Computer products
2) Consumer products
3) Communication equipments
4) Instrumentation

Welding Conditions:
1.Hand soldering
Use a soldering iron of 30 watts, controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260ºC max. Condition for soldering Temperature Profile

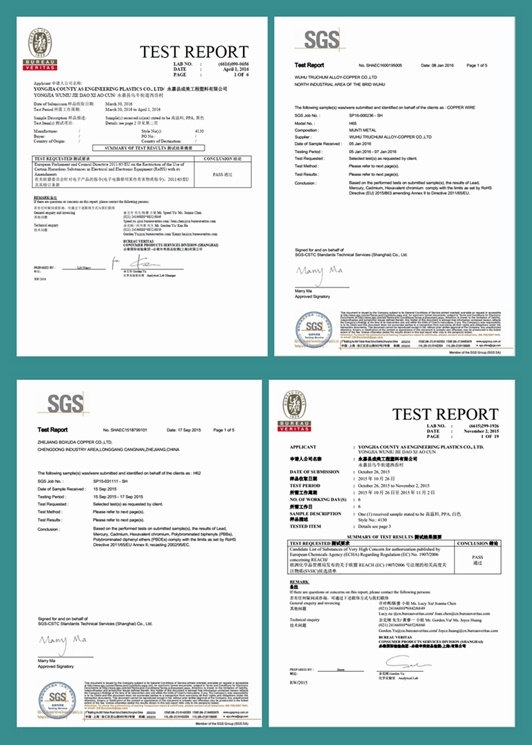

Certification:

Payment& Shipping
1) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
2) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

Why Choose Us?

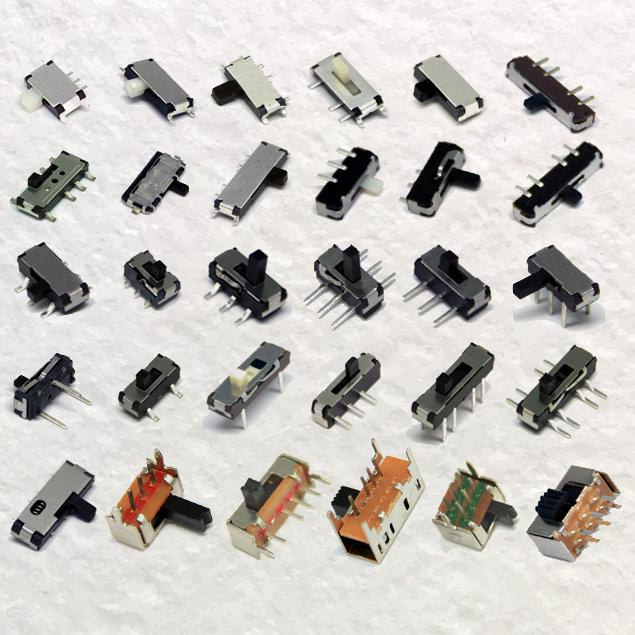

1) We can provide you with different types of micro switches for your selection.
2) MOQ: 1000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

Related Products:

Shenzhen Homyet Parts Electronics Co.,Ltd is committed to electronic components parts development,design,production and sales of professional firms. We stick to innovation and quality.ln order to adaptation the requirements of market,we open up constantly,innovation,so we development a series of new product successful and push in market.Our main products ane Tact switch,Phone jack,Toggle switch,power jack, card and connector etc.Our products are widely used in digital fashion,communications,
Multimedia, digital home and other related fields. The company has perfect quality management ,system,Experienced professional andtechnical personnel.

The company keep in line with purpose of"quality,efficiency,integrity
Service",we Conscientiously sum up experiences,Listen carefully to customer feedback and suggestions,Constantly improving and upgrading servies to users.ln the days,the company will go on cooperation with new and old customers to create brilliant together.
We're pleased to get your Inquiry and we will come back to as soon as possible.

Send your message to this manufacturer

*Subject:
*Name:
*Company:
*E-mail:
*Message:
*Country:
*Verification Code:

SMT Type Vertical 3 Position 2t3p Slide Switch (HY-1155S)

Product Detail

Company Info

Product Description

Send your message to this manufacturer

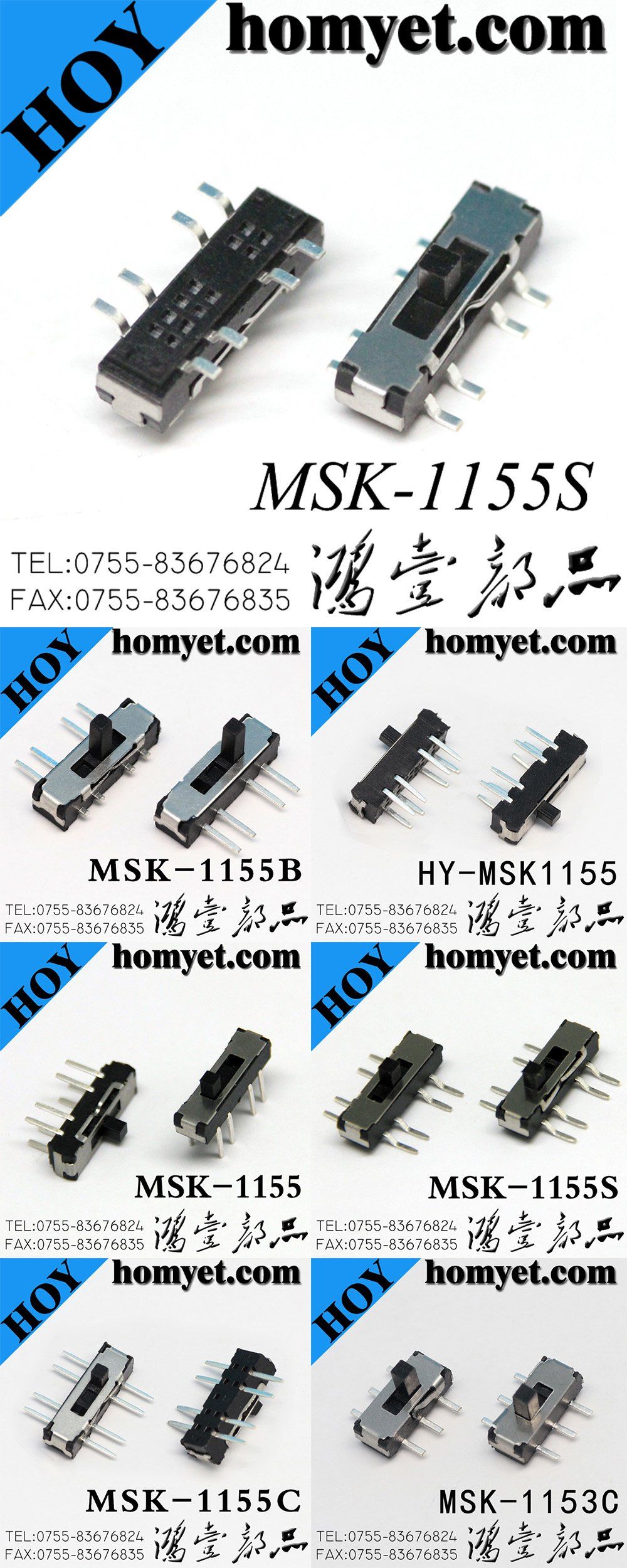

Other Products with This Manufacturers
