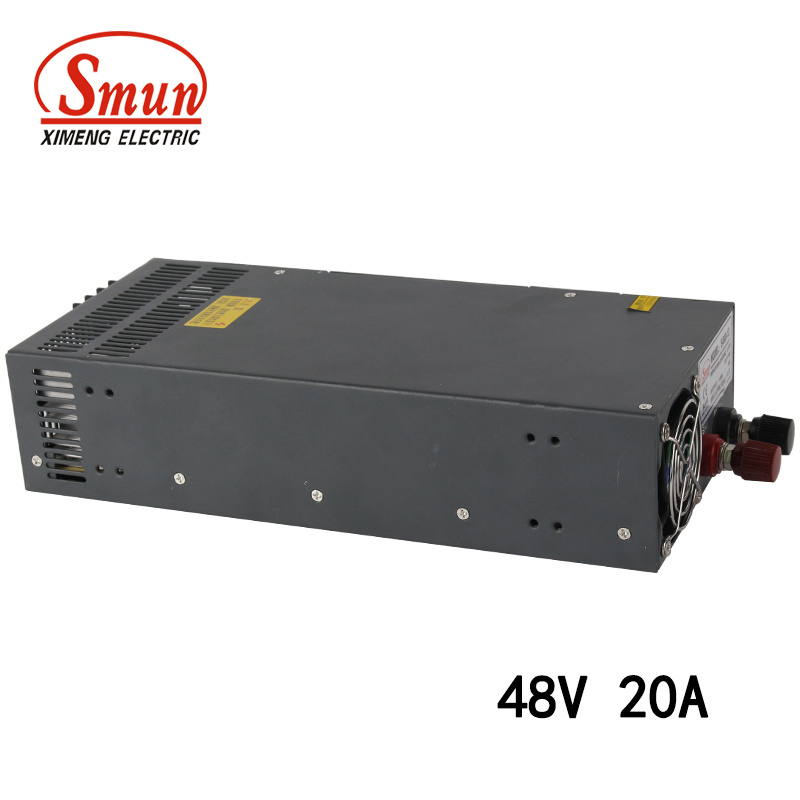

Smun S-1000-48 110V/220VAC to 48VDC 20A 1000W Switching Power Supply

Name: Smun S-1000-48 110V/220VAC to 48VDC 20A 1000W Switching Power Supply
Brand: all-electronics-online.com
SKU: 720487765
Availability: InStock
Rating: 4.9 (90 reviews)

Price:	US $ 80-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-1000-48
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	S-1000-48
Output:	48V 20A
Input:	86~132VAC/180-264VAC
Size:	29113268mm
Power:	1000W
Weight:	2.4kg/PCS
Package:	4PCS/10kg
Approve:	Ce RoHS ISO9001
Torelance:	1%
OEM:	Available
Output Type:	Single
Warranty:	2 Years
Output Power:	>500W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Input Voltage:	100-120VAC or 200-240VAC
Brand:	Smun

Product Description

· 1. AC input voltage range

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. Built-in cooling DC fan

· 5. Cooling fan ON-OFF auto control
· 6. LED indicator for power on

· 7. 100% full load burn-in test

· 8. 2 years warranty

Model		S-1000-12	S-1000-15	S-1000-24	S-1000-48
Output	DC output Voltage	12V	15V	24V	48V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	80A	66A	42A	20A
	Related Power	1000w	1000w	1000w	1000w
	Wave&Noise	240mVp-p	240mVp-p	240mVp-p	300mVp-p
	Adjustable range for DC Voltage	±10%	±10%	±10%	±10%
	Set up,rise,hold up time	200ms 100ms 30ms
Input	Voltage Range	170-264VAC 47-63HZ
	Input Current	7A/230VAC
	Efficiency	83%	84%	85%	87%
	AC inrush current	Cold start current 50A /230VAC
	Leakage current	<3.5mA/240VAC
Protection	Overload	Related output power 105-150% start overload protection
		Protection type: cutoff output, recovery after restart power
	Over voltage	13.8V-16.2V	17.2V-20.2V	27.6V-32.4V	55V-64.8V
		Hiccup mode,recovers automatically after fault condition
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
Safety	Withstand voltage	I/P-O/P:1.5KVAC 1min
		I/P-FG:1.5KVAC 1min
		O/P-FG:0.5KVAC 1min
Standard	Safety standard	Fit UL1012
	Refer	Design refer to GB4943,UL60950,EN60950
	EMC standard	Design refer to GB9254,EN55022 Class A
Size	size	L238W132H68mm
	Package	2.4kg, 4pcs/10kg
