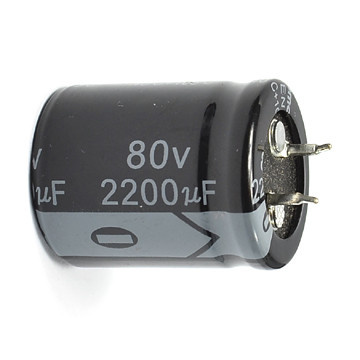

Snap in Aluminum Electrolytic Capacitor 105c (TMCE18-1)
| Price: |
US $ 0.52/Piece |
| Min Order: |
10000/Piece |
| Pay Type: |
Western Union |
| Prod Model: |
TMCE18 |
| Color: |
Black |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
| Capacitance: |
>100uf |
| Tuning: |
Electrolytic Capacitor |
Product Description
Capacitor

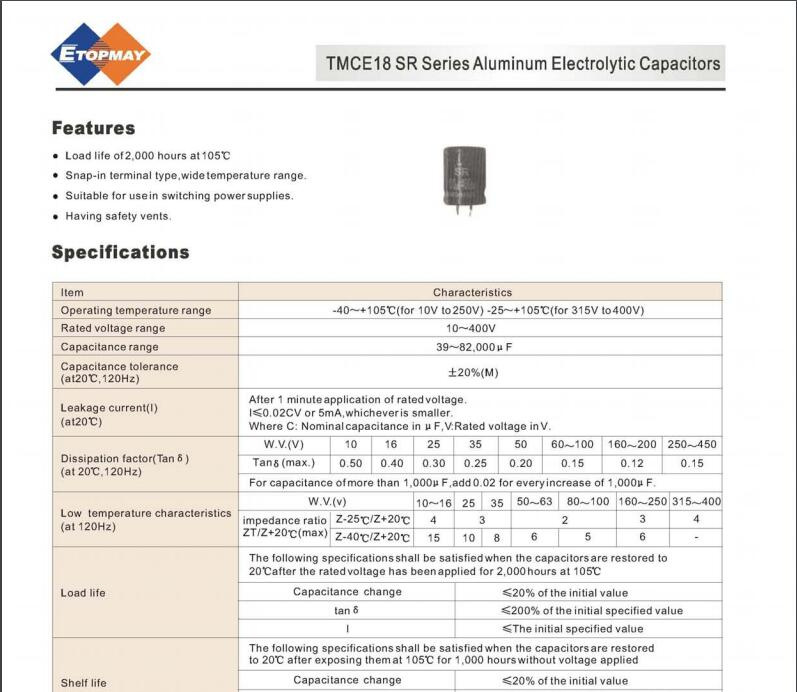

Key Specifications/Special Features:
Rated voltage range: 10 to 100V and 160 to 400V
Capacitance tolerance (25° C 120Hz): 0 to 20%
Leakage current (uA): 0.02CV or 5mA, whichever is smaller (at 25° C after five minutes)
C: Nominal capacitance (uF)
V: Rated voltage (V)
Dissipation factor (25° And 120Hz): TTND shall not exceed the values shown in the table of standard ratings
Temperature stability (120Hz): Capacitance change
10 to 100V DC: Capacitance at -40° C shall not be less than 60% of the 25° C value
160 to 400V DC: Capacitance at -25° C shall not be less than 70% of the 25° C value
Load and shelf life (+85° C):
Time: 2, 000 hours
Leakage current: Not more than specified value
Capacitance change: Within ± 20% of initial value
Dissipation factor: Not more than 200% of specified value
After test: UR to be applied for 60 minutes, 24 to 48 hours before measurement
Suitable for switching power supply
Operating temperature range: -40 to 85 and -25 to 85° C
