| Prod Model: |
TMCE0904 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Color: |
Black |
| Tolerance: |
+-20% |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
| Capacitance: |
1-50uf |
| Tuning: |
Aluminum |
Product Description
Features

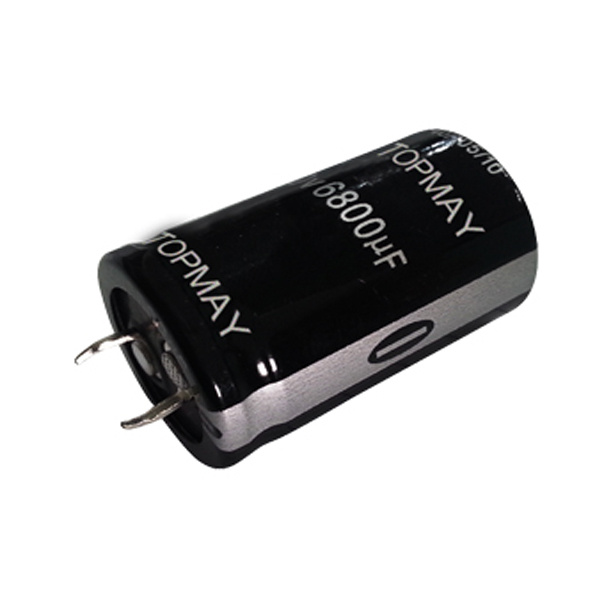

105C, 2000 hours, snap-in terminal
Suitable for using in filtering circuit of
Color TV, computer and home appliances,
Specifications
ItemsCharacteristics
Rated Voltage Range50~450V. DC
Operating Temperature
Range-40 degree ~+105 degree
Capacitance Tolerance± 10%(K), ± 20%(M) (25 degree, 100 or 120Hz)
Leakage CurrentI≤ 0.02CV or 3mA, whichever is greater.
Where, I: Max. Leakage current (µ A), C: Nominal capacitance (µ F), V: Rated voltage (V) (at 25 degree after 2 minutes).
Dissipation Factor
(tanδ )
Rated voltage(Vdc)50~6380~100160~200250~450
Tanδ (Max. )0.250.200.180.20
(25 degree, 100 or 120Hz)
When nominal capacitance exceeds 4700μ F, add 0.02 to the value above for each 2000μ F increase.
Low Temperature
Characteristics
(Max. Impedance Ratio)Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.
Rated voltage(Vdc)50~100160~180200~450
Z-40 degree /Z+20 degree647
Shelf Life
Capacitance Change≤ ± 20% of the initial value
D. F. (tanδ )≤ 200% of the initial specified value
Leakage Current≤ 200% of the initial specified value
After storage at 105 degree for 1000 hours, the capacitors shall meet the following requirements.
Load LifeAfter application of rated voltage with ripple current for 2000hours at +105degree, the following specification shall be satisfied.
Capacitance Change≤ ± 20% of the initial value
D. F. (tanδ )≤ 200% of the initial specified value
Leakage Current≤ The initial specified value
OthersMeet Q/RME 132- 2011, GB/T 5993-2003
, 2000 hours, snap-in terminal
Suitable for using in filtering circuit of
Color TV, computer and home appliances,
Specifications
ItemsCharacteristics
Rated Voltage Range50~450V. DC
Operating Temperature
Range-40 degree ~+105 degree
Capacitance Tolerance± 10%(K), ± 20%(M) (25 degree, 100 or 120Hz)
Leakage CurrentI≤ 0.02CV or 3mA, whichever is greater.
Where, I: Max. Leakage current (µ A), C: Nominal capacitance (µ F), V: Rated voltage (V) (at 25 degree after 2 minutes).
Dissipation Factor
(tanδ )
Rated voltage(Vdc)50~6380~100160~200250~450
Tanδ (Max. )0.250.200.180.20
(25 degree, 100 or 120Hz)
When nominal capacitance exceeds 4700μ F, add 0.02 to the value above for each 2000μ F increase.
Low Temperature
Characteristics
(Max. Impedance Ratio)Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.
Rated voltage(Vdc)50~100160~180200~450
Z-40 degree /Z+20 degree647
Shelf Life
Capacitance Change≤ ± 20% of the initial value
D. F. (tanδ )≤ 200% of the initial specified value
Leakage Current≤ 200% of the initial specified value
After storage at 105 degree for 1000 hours, the capacitors shall meet the following requirements.
Load LifeAfter application of rated voltage with ripple current for 2000hours at +105degree, the following specification shall be satisfied.
Capacitance Change≤ ± 20% of the initial value
D. F. (tanδ )≤ 200% of the initial specified value
Leakage Current≤ The initial specified value
OthersMeet Q/RME 132- 2011, GB/T 5993-2003
Shenzhen Topmay Electronic Co,.Ltd
17-year manufacturer of capacitors
Established in 1998, Shenzhen Topmay Electronic Co. Ltd is engaged in manufacturing, researching and developing a wide variety of capacitors.
Wide product range
Multilayer ceramic capacitors (radial, axial, and SMD)
Ceramic disc capacitors (low and high voltage)
Aluminum electrolytic capacitors (radial, axial and SMD)
Film capacitors (polyester, polypropylene and metallized)
Tantalum capacitors (radial, SMD, axial) and others)
Mica capacitors
Super capacitors
Monthly output of 1 million units
Prompt delivery
In-stock items: three- to five-day lead time
Regular orders: seven- to 10-day lead time
OEM orders: 15-day lead time
| Items | Topmay P/N | Size(mm) | U/P($) |
| 10000UF 35V | TMCE18-109M35VB | 35*25MM | 0.9967 |
| 2200UF 50V | TTMCE18228M50VB | 22*25MM | 0.37375 |
| 2200UF63V | TMCE18-228M63VB | 30*50MM | 0.4408 |
| 22000UF 16V | TMCE18-229M16VB | 35*26MM | 0.7283 |
| 1200UF 250V | TMCE18-157M400V | 22*35MM | 0.5558 |
