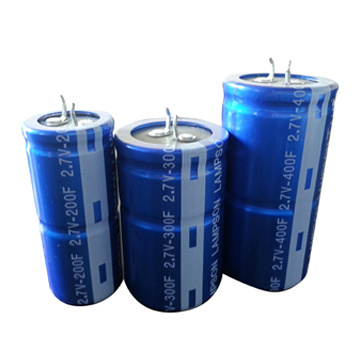

Snap-in Terminal Super Capacitor 200f 300f 400f 2.7V

Snap-in Terminal Super Capacitor 200f 300f 400f 2.7V
Price: US $ 8.5-10/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: T/T
Prod Model: TMCS01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Bule
Type: Supercapacitor
Application: Power
Package Type: Through Hole
Capacitance: 200f 300f 400f
Tuning: Electrolytic Capacitor

Product Description

Snap-in Terminal Super Capacitor


Applications

  • Apply to Cylindrical super capacitor

Standard Test Conditions

  • In general, samples are tested under the condition of standard atmospheric pressure, the  15 ~ 35 ºC temperature and 25% ~ 75% relative humidity.  Samples should be placed more than 1h under the testing temperature. The test conditions of this specification is for standard atmospheric pressure, temperature of 25 + / - 1 ºC, relative humidity for 60-15%.

Specifications:

Type:TMCS01

Rate Capacitance:20F

Rated Capacitance:-20%~+80%

Working Voltage:2.7V

Surge Voltge:2.85V

Nominal resistance: AC resistance:40mΩ             DC resisttance:60mΩ

Working Tempeture:-25~70°C

Storage Temperature:-40~85°C


Environment Performance Index

ITEMSpecification
1Temperature CharacteristicsTempetature +70ºC,|△C/C| ≤30%,ESR≤specified value(25 ºC); Tempetature -25 ºC,|△C/C|≤50%,ESR≤ 4 times initial value(25 ºC)
2High temperature without loadTempetature +70 ºC±2times rated voltage, after 100h,|△C/C|≤30%,ESR≤ 4 times specified value.
3High temperature CharacteristicsTempetature +70 ºC±2times rated voltage, after 1000±4h,|△C/C|≤30%,ESR≤ 2 times specified value.
4Heat load characteristicsTempetature +40 ºC±2times rated voltage,90-95%RH,240h,|△C/C|≤30%,L≤2 times specified value,ESR≤ 4 times specified value.

 Size and Dimensions:

ItemStandardItemStandard
ΦD16.0±0.5mmL26.0±0.5mm
Φd0.80±0.5mmP7.5±0.5mm
Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.

Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.

Presently, Topmay products mainly include the following products:

The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.

Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.

Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
