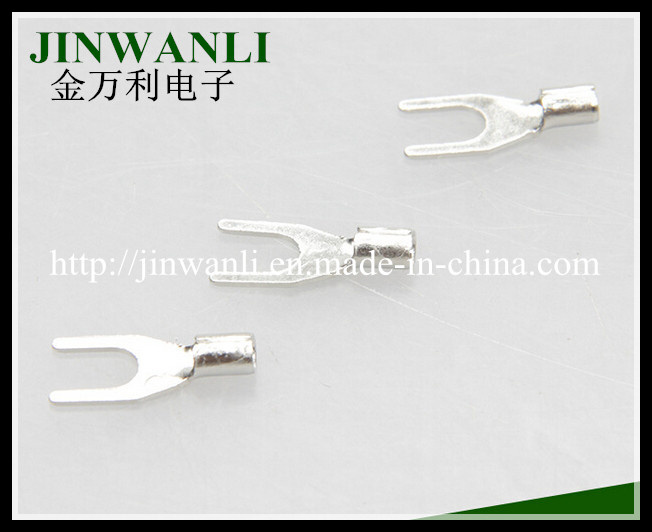

Snb1.25-8 Non- Insulated Spade Terminals

Name: Snb1.25-8 Non- Insulated Spade Terminals
Brand: all-electronics-online.com
SKU: 767959635
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Fork
Brand:	Jwl

Product Description

SNB 1.25-4 Copper Non-Insulated Spade Terminal

Surface: Tin-plated.
Terminal material: Copper/Brass.

OEM: Available
Samples: Free of Charge

Certificate: ISO900 CE, ROHS
Application: Wiring and cable joint.
Delivery time: depends on the quantity you order

Non-insulated spade terminals or ring shaped insulated terminal

----------------- Non-insulated spade terminal application:

Non-insulated spade terminals or ring shaped insulated terminal is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on .

And it is also for mating and maintenance fittings of device power and connectors imported from abroad.

specifications
Lead section: 0.5-1.5mm2(22-16) Max current: =9A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
SNB1.25-3.2	#4	3.2mm	5.7	21.2	6.5	10.0	4.3	Red
SNB1.25-3.5	#6	3.7mm	5.7	21.2	6.5
SNB1.25-3.5	#6	3.7mm	6.4	21.2	6.5
SNB1.25-3.5	#8	4.3mm	6.4	21.2	6.5
SNB1.25-4	#8	4.3mm	7.2	21.2	6.5
SNB1.25-4	#8	4.3mm	8.1	21.2	6.5
SNB1.25-5	#10	5.3mm	8.1	21.2	6.5
SNB1.25-6	1/4	5.3mm	9.5	21.2	6.5
SNB1.25-8	5/16	6.5mm	9.5	21.2	6.5
SNB1.25-10	3/8	6.5mm	12.0	21.2	11.0

Lead section: 1.5-2.5mm2(16-14) Max current: =27A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
SNB2-3	#4	3.2mm	6.6	17.8	4.3	10.0	4.9	Blue
SNB2-3.5	#6	3.7mm	6.6	17.8	4.3
SNB2-3.5	#6	3.7mm	6.6	21.0	7.0
SNB2-3.5	#8	4.3mm	8.5	22.5	7.75
SNB2-4	#8	4.3mm	6.6	21.0	7.0
SNB2-4	#8	4.3mm	8.5	22.5	7.75
SNB2-5	#10	5.3mm	8.5	22.5	7.75
SNB2-5	#10	5.3mm	9.5	22.5	7.25
SNB2-6	1/4	6.5mm	12.0	27.6	11.0
SNB2-8	5/16	8.4mm	12.0	27.6	11.0
SNB2-8	3/8	10.5mm	13.6	30.2	13.9

Lead section: 2.5-4mm2(14-12) Max current: =37A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
SNB3.5-4	#8	4.3mm	8.0	24.5	7.7	12.5	6.2	Black
SNB3.5-5	#10	5.3mm	8.0	24.6	7.7
SNB3.5-5	#10	5.3mm	12.0	27.9	7.7
SNB3.5-6	1/4	6.5mm	12.0	27.9	7.7

Lead section: 4-6mm2(12-10) Max current: =48A

Type	Number of ANSI bolt	Diameter of bolt mouth d2	B(mm)	L(mm)	F(mm)	H(mm)	D(mm)	Color
SNB5.5-3.5	#6	3.7mm	7.2	21.4	5.9	12.5	6.7	Yellow
SNB5.5-4	#8	4.3mm	7.2	21.5	5.9
SNB5.5-4	#8	4.3mm	9.5	25.5	8.3
SNB5.5-5	#10	5.3mm	9.5	25.5	8.3
SNB5.5-6	1/4	6.5mm	12.0	31.5	13.0
SV5.5-8	5/16	8.4mm	15.0	33.7	13.0
SNB5.5-10	3/8	10.5mm	15.0	33.7	13.7
SNB5.5-12	1/2	13.0mm	19.2	38.1	16.0

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
