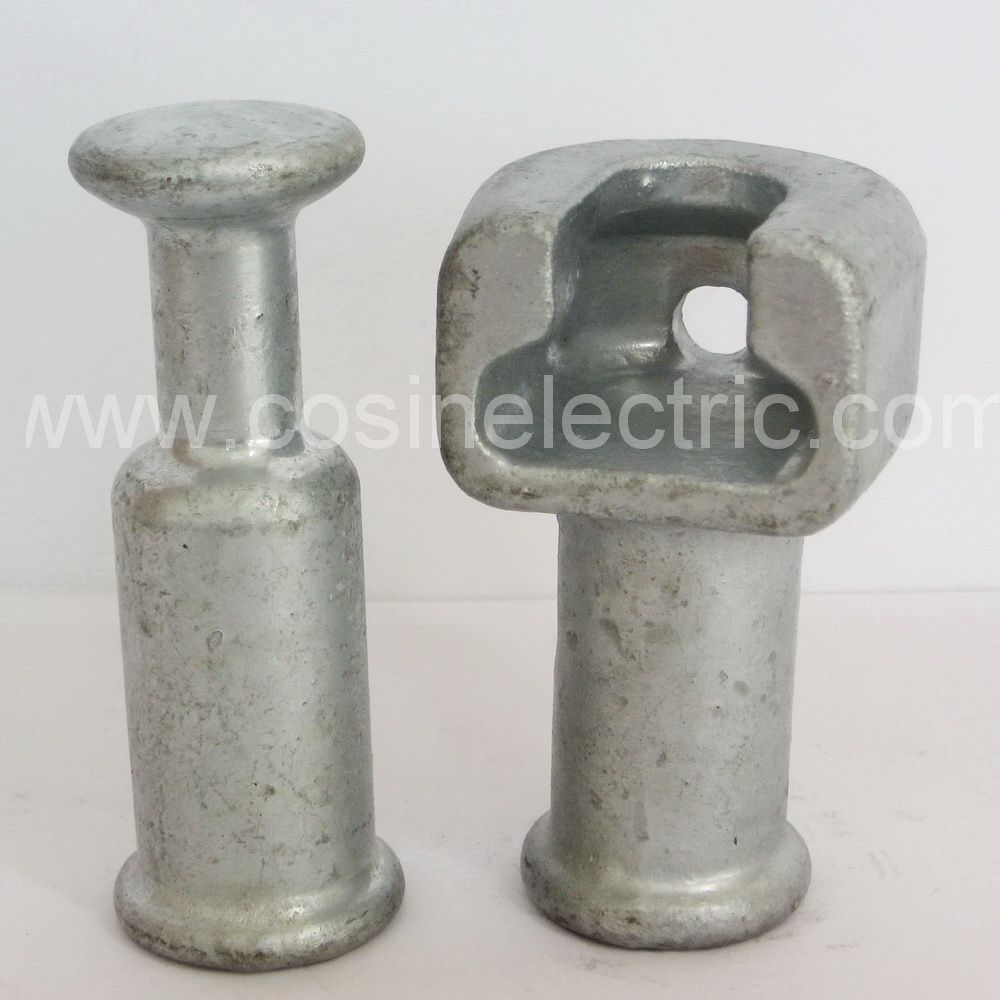

Socket Ball for Polymer Insulator

Name: Socket Ball for Polymer Insulator
Brand: all-electronics-online.com
SKU: 677837165
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	US $ 3.8/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	70KN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	70kn
Material:	Casting-Steel or Forged-Steel
Type:	Solid
Application:	Insulators

Product Description

The Polymer Insulator metal fitting `s material range from casting-steel, forged-steel.

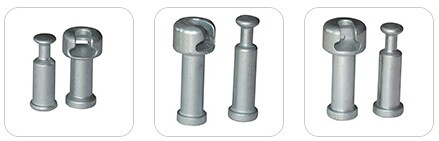

And our products include socket&ball, Tongue&clevis, Y-clevis, oval-eye, base flange, cross-arm, two hold blade and horizontal clamp...

The max SML (specified mechanical Load) of our forged-steel product can reach 700KN. The product rate is from 45KN to 700KN

NO.	SML	size	D1	D2	D3	L1	L2	L3	L4	L5	L6
1	45KN	11	44	28	15.4	80	79	52	29	89	88
2	70KN	16	58	28	16	96	92	60	36	105	105
3	120KN	16	58	32	18	116	112	83	36	125	125
4	160KN	20	70	36	24	158	150	110	42.5	170	170
5	210KN	20	75	36	24	179	170	133	42.5	190	190
6	300KN	24	85	44	30	193	189	145	48.5	208	208
7	400KN	28	95	48	34	240	207	160	51	228	228
8	530KN	32	113	60	40	270	250	196	64	307	278
9	630KN	32	116	64	44	270	256	202	64	307	284

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
