Socket Clevis for Power Line Fitting/Line Accessory (70KN)

Prod Model:	70KN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	70kn
Application:	Electronic
Type:	Current Transformer
Phase:	Single
Usage:	Connection

Product Description

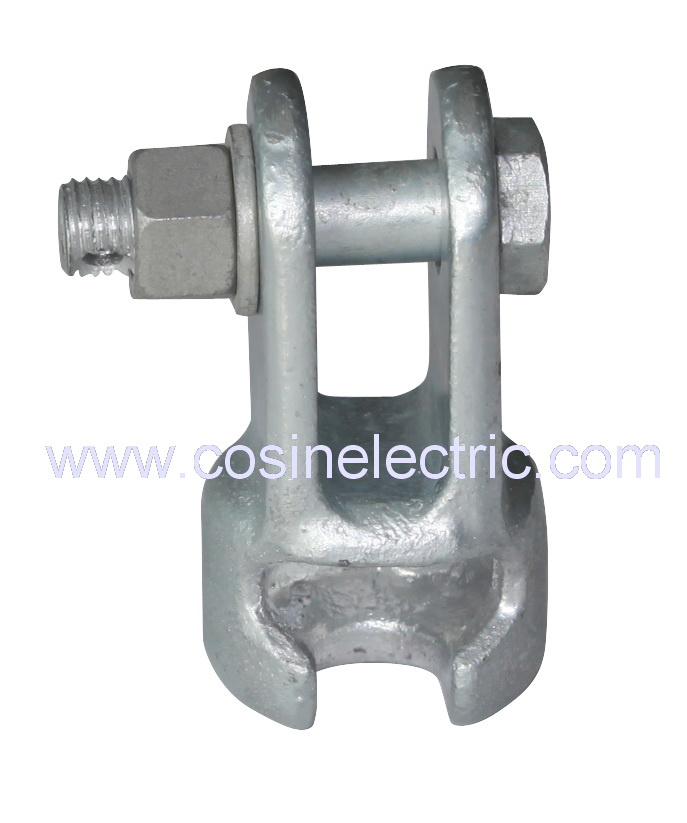

Socket clevis is our Hot poleline hardware
1. Material: Casting steel
2. Mechnical Load: 70KN
3. Fishing : Hot dip galvanizing
4.  we not only can produce according to your drawings, but also can design as per your request!

We are professional manufacturer of end fitting for power line fitting/pole line fitting. Socket clevis is a kind of power line fitting and accessory/Hardware. The mechnical load is 70KN. The material is casting steel.

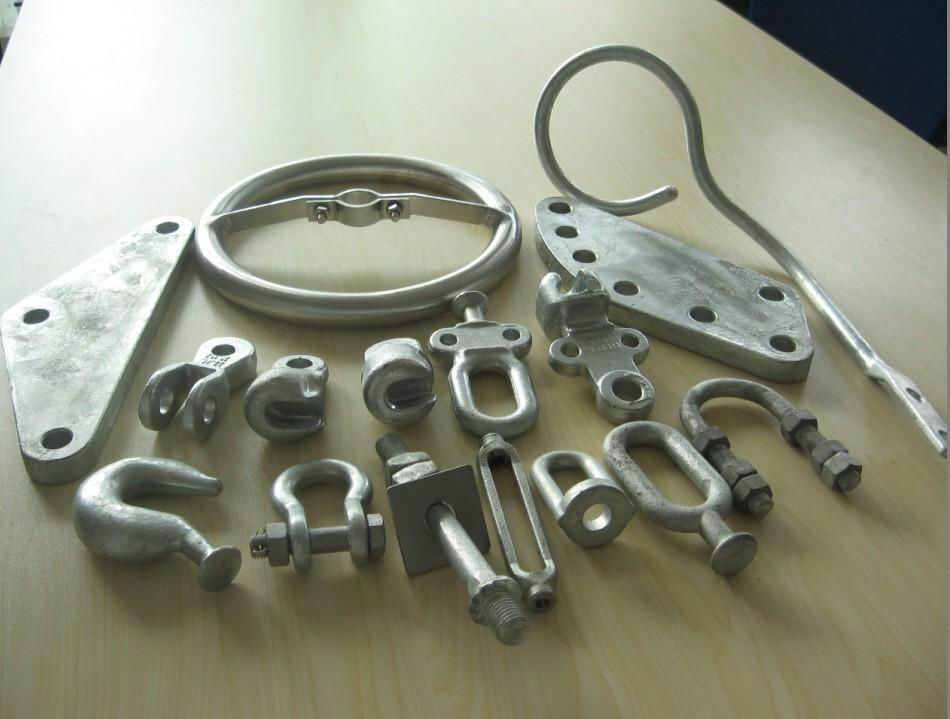

We have long and rich experience in this field. Beside Socket clevis, we also can make other poleline fittings like Socket Tongue, Ball clevis, Ball eye, Eye nut, Shackle. Bolts, Hook ball, Yoke plate, Link Plate etc


Hope you will interest in our poleline fitting and accessory/Hardwares, if any needs, pls contact us freely. We can offer product with high quality with competitive price to you.

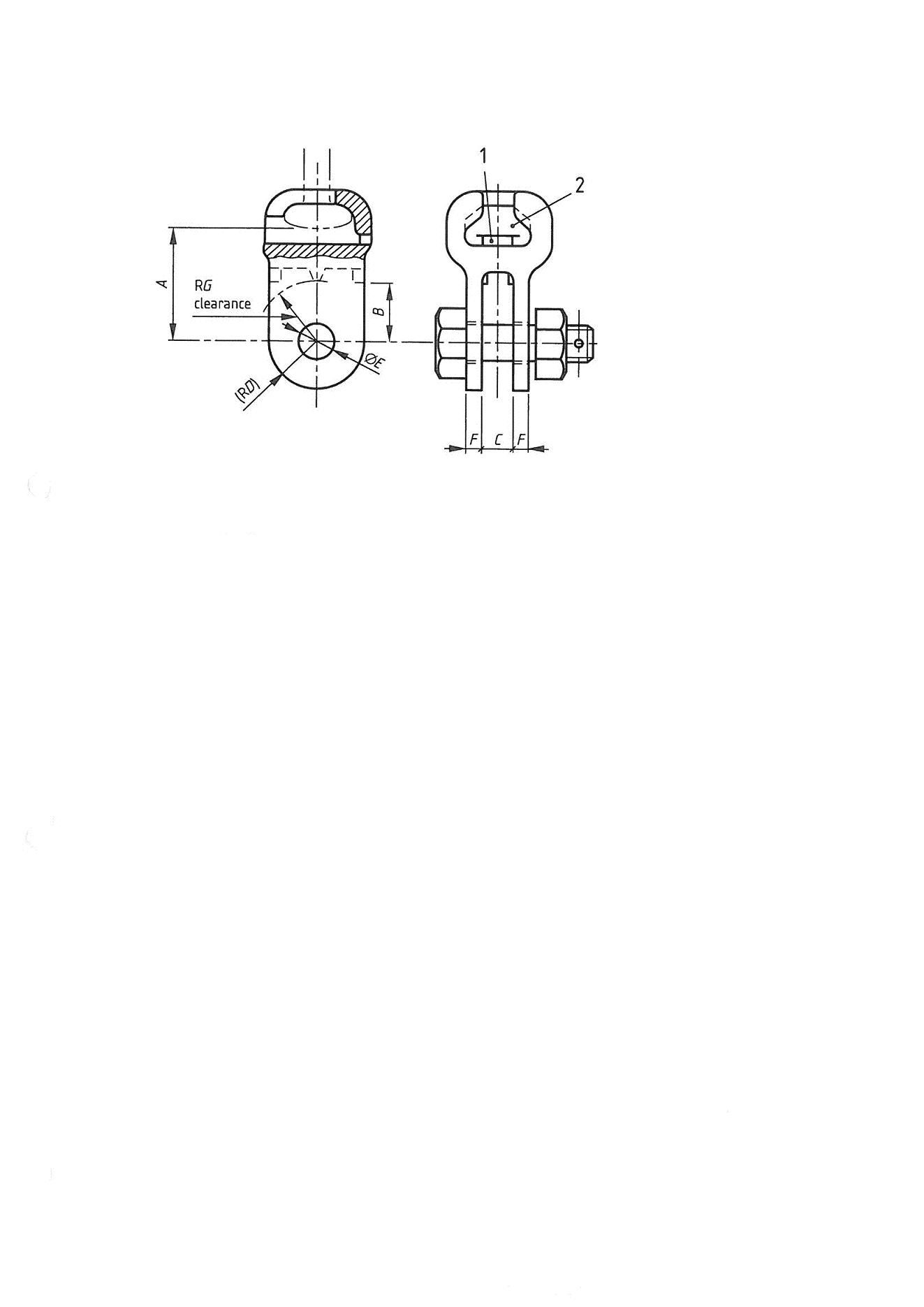

REF No.	Minimum Failing Load	Socket Designation	A mm	B mm	C mm	RDmax mm	E mm	F mm	RGmin mm
15/84A	70KN	16B	59	---	18.5	23	18	8	38
28/37A	125KN	20	76	41	18.5	32	22	9.5	--
42/37A	190KN	24	76	41	21.5	35	24	13	--
42/46A	190KN	24	121	--	28.5	35	24	13	45
42/104A	190KN	24	105	--	28.5	46	32	22	64
84/37A	400KN	28B	105	--	28.5	46	32	22	64
