Soft Laminate Material Nmn

Soft Laminate Material Nmn
Price: NegotiableKg
Min Order: 100Kg
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
ID Of The Core: 50 or 76mm
Product Type: Film, Roll
Tensil Strength: Different with Thickness
Hardness: Soft
Smell: No.
Sample Size: A4 or Others
Application: Insulating Varnish
Type: Insulation Paper
Chemistry: Hybrid Insulation
Thermal Rating: F 155
Maximum Voltage: 10KV~20KV
Material: Nmn
Color: All Kinds of Colours
Brand: Toyo

Product Description

Packaging & Delivery

Packaging DetailsStandard Package: Wooden Pallet, Wooden Case; We can also pack it according to the customers' requirements.
Delivery Detail3-7 days

Specifications

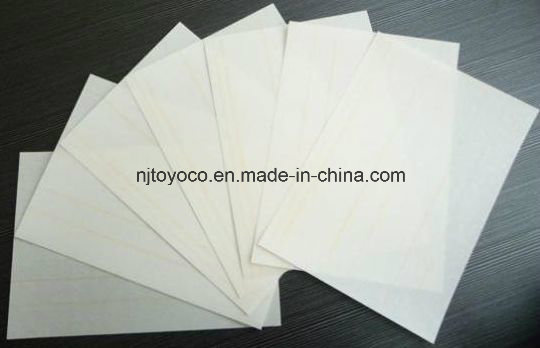

Soft laminate material NMN
Thickness: 0.15-0.50mm
Can customize thickness
Good flatness

Product Description

Soft laminate material NMN
         NMN is made up of Nomex paper,Mylar film and high temperature gel, with good electrical insulation properties, heat-resistance and mechanical strength.Tested by China Mechanical Industry Quality Inspection Center for electrical Material Product, can meet the diretives. The test results from SGS Shanghai branch indicate that the products are in confirmity with EU ROHS Directive 2002 / 95 / EC and subsequent revision directives, and got ULcertification.
        Can be used for slot insulation of micro oven motors and special motors.

Technical Data Sheet
ItemUnitProperty
Standard thicknessmm0.150.180.200.230.250.300.350.50
Rationg/m2165193233273304359450628
Tensile strength
Non-bending
(MD)
Bending
(MD)
Non-bending
(TD)
Bending
(TD)
 		N/10mm184
185
147
147		209
207
191
187		235
221
217
213		272
255
273
275		305
273
297
288		340
315
350
330		410
390
430
410		560
540
550
520
Breakdown VoltageKV1215192023263033
Heat-resistance garde  F/H
Test methods  GB/T 5591.2-2002
Storing periods  40 centigrade, 12 months
Standard  Q/D J3-312-2007

cracks should be avoided when slitting, scratches and greasy should also be avoided.

Packaging & Shipping

Soft laminate material NMN:
Normally the out - packaging for the goods is wooden pallet or wooden case, we can deliver it by air or by ship.
Airport: Beijing, Tianjin, Qingdao, Nanjing, Shanghai, Guangzhou, Shenzhen
Sea Port: Tianjin,Qingdao, Shanghai, Ningbo, Guangzhou

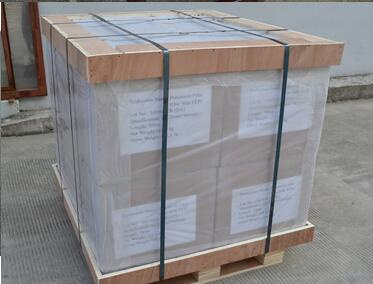

Packing Type Photo is as the following:

We are major in insulation material of various classes, from B to F, and from F to H, TOYO'S products are widely used in Motors, Generators, Welders, Electrical Heaters, and etc. And provide assurances for their long time, stability work.

The test results of from SGS Shanghai branch indicate that the TOYO's products are in conformity with EU RoHS Directive 2002/95/EC and subsequent revision directives. And our product conforms to REACH regulation's requirements (the newest version) of European Union after tested, and also passed UL certification of American and Canada.

" TOYO" Team was composed of many senior electrical engineers, and insist on response to every client's enquiry 100%. Maintaining good cooperative relationship with main manufacturers in domestic for long term, and this provides " TOYO" With stable product quality; Reasonable prices; Timely supply.

We started to do the foreign trade since 2014, because of the good faith, now we have had so many customer from home and abroad. We are also planning to making the investment to enhance the relationship with our key suppliers, and meet our customer's requirements.

Welcome you to contact us and discuss business at any time.
