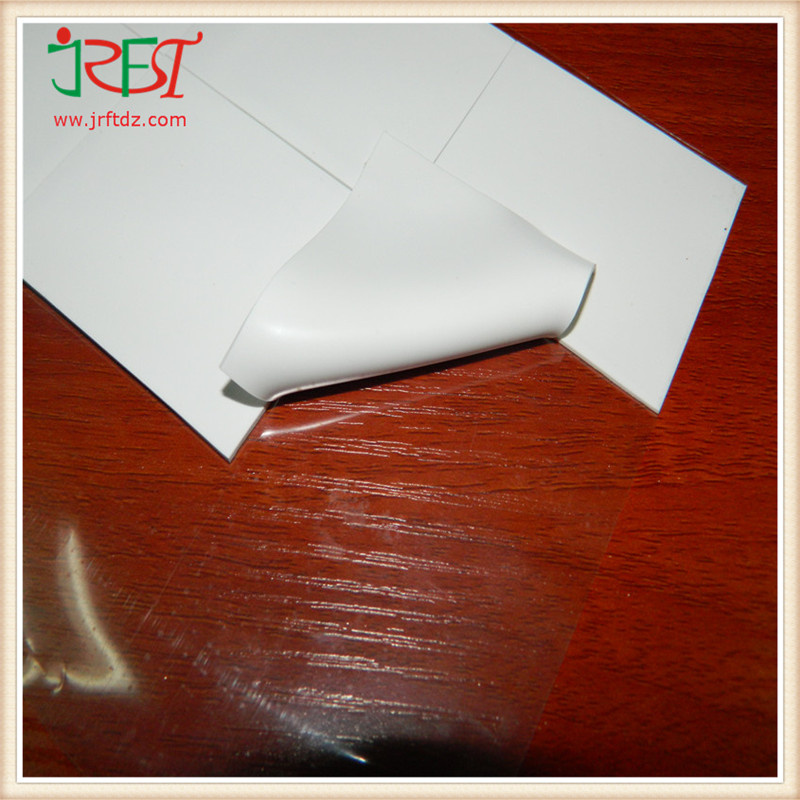

Soft Silicone Thermal Insulation Pad

Name: Soft Silicone Thermal Insulation Pad
Brand: all-electronics-online.com
SKU: 750284105
Availability: InStock
Rating: 4.8 (121 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

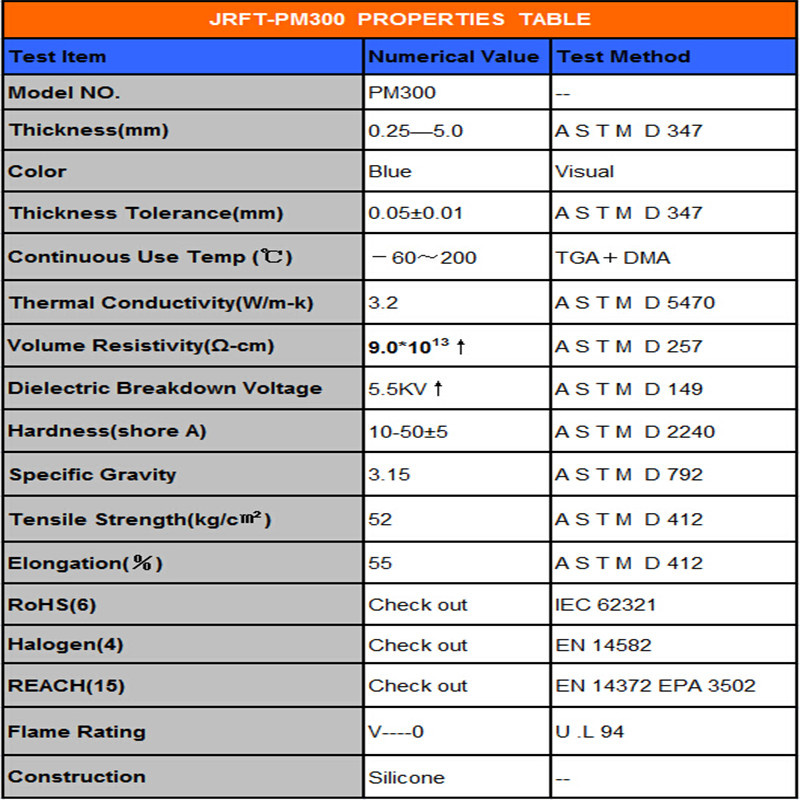

Prod Model:	PM300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Customized
Thickness:	0.25-5.0 Mm
Thickness Tolerance:	0.05+-0.01 Mm
Specific Gravity:	3.15
Thermal Condutivity:	3.2 W/M.K
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Rubber
Thermal Rating:	200 200
Maximum Voltage:	<10KV
Brand:	Jrft
Application:	CPU/Heat Sink/ PC/Phone
Color:	Grey

Product Description

PM300 thermal pad combine high thermal conductivity with compliance perfect, can fill the gaps, improve heating parts and the radiating part of the heat transfer capacity. These soft interface material can make the minimum pressure and the surface to combine , resulting in little or no stress on mating parts. Taking advantage of silicone soft and elastic characteristics, placed between the power heating device and heat dissipating structure, the power module effectively transfer the heat to the radiating component.

Applications:
1.Car engine module, notebook computer
2.Flat panel TV, mobile equipment, high-speed hard disk drive
3.Between semiconductor and radiating fin
4.Desktop, portable computer and server
5.LED lighting device, the power supply of UPS
6.LED and PDP flat panel display

Performance:
High thermal conductivity:3.2W/m-k
Stable Performance, low thermal resistance, effectively improve the heat transfer speed
Low hardness, its viscosity high, easy to use

Specification:

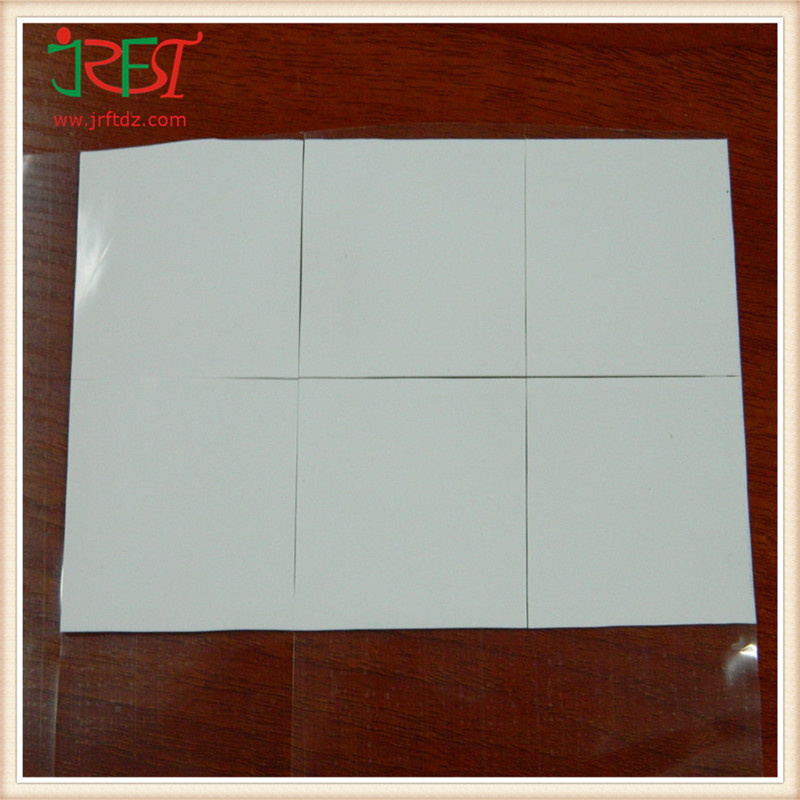

Standard size:310mm*310mm, 200mm*400mm according to customer needs cut the shape

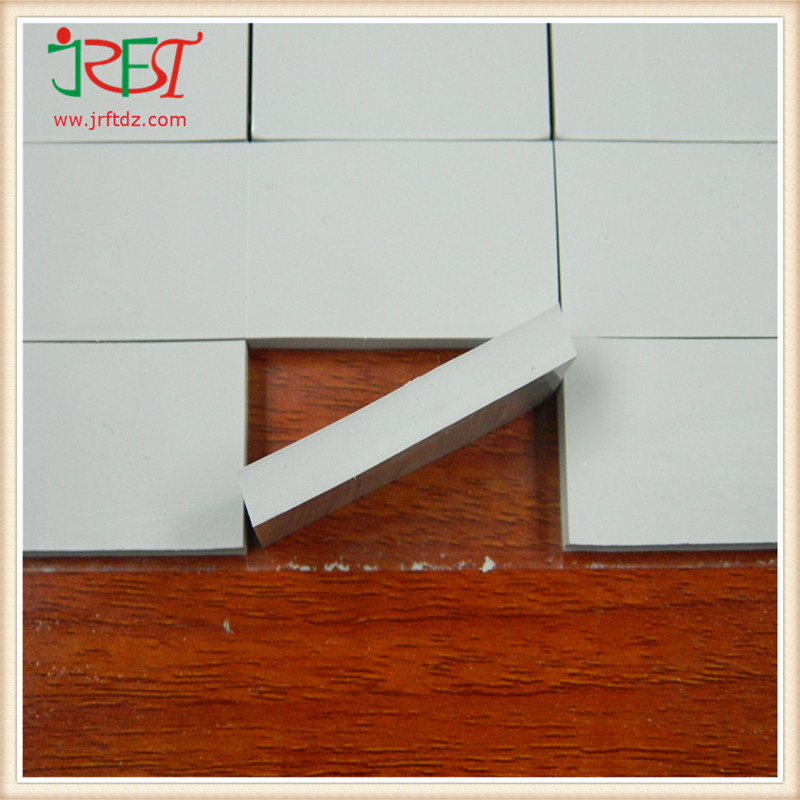

Basic thickness:0.25mm*5.0mm, special size and thickness can be customized
Its slightly viscous, if need to strengthen the adhesive can be according to customer's requirement
Product color is mass production color, need special color can be adjusted according to the actual situation
